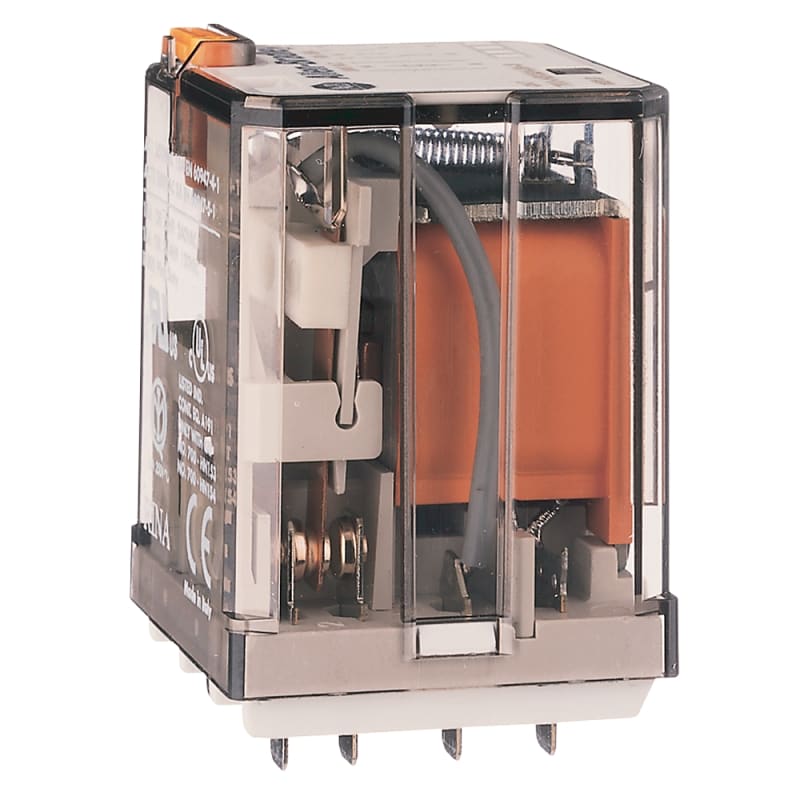

700-HB32A2 | Allen-Bradley 240 VAC DPDT Plug-In Relay, 15 A Square-Base
- Regular price
- $189.00
- Sale price
- $189.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 700-HB32A2
Description
The Allen-Bradley 700-HB32A2 is a plug-in DPDT industrial relay designed for dependable switching of AC loads up to 15 A. This 240 VAC coil relay features a tall square-base design, providing robust electrical performance and suitability for control panels, automation systems, and general-purpose machine applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley (Rockwell Automation) |
| Category | Relays & Control Components |
| Part Number | 700-HB32A2 |
| Subcategory | Plug-In Industrial Control Relays |
| Series | 700-HB |
| Contact Configuration | 2 CO (DPDT) |
| Rated Current (In) | 15 A |
| Contact Breaking Capacity (DC1, 30 V) | 15 A |
| Rated Operational Current (AC-1, 250 V) | 15 A @ 250 V |
| Rated Load (AC-1) | 3750 VA |
| Rated Operational Current (AC-15, 230 V) | 3.26 A @ 230 V |
| Rated Load (AC-15) | 750 VA |
| Coil Type | AC |
| Coil Voltage (Nominal) | 240 VAC |
| Coil Voltage Range | 192–264 VAC |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Mechanical Service Life | 10,000,000 cycles |
| Electrical Service Life | 100,000 cycles |
| IP Rating | IP40 |
| Make Time | 20 ms |
| Break Time | 4 ms |
| Insulation Voltage | 250 V |
| Dielectric Strength (Coil to Contacts) | 2500 VAC |
| Dielectric Strength (Open Contacts) | 2500 VAC |
| Mounting | Plug-in (square base) |
| Operating Temperature | −40°C to +70°C |
| Storage Temperature | −40°C to +100°C |
| Height | 51.4 mm |
| Weight | Approx. 0.1–0.2 lb |
Information About 700-HB32A2
The 700-HB32A2 belongs to the Allen-Bradley 700-HB family, known for compact, panel-efficient relays built to accommodate a wide range of control and power-switching tasks. It includes two changeover (CO) contacts, enabling flexible wiring configurations for interlocks, signal switching, or load control. The relay incorporates silver cadmium oxide contacts for improved durability under high current loads, with long mechanical and electrical service life suitable for repetitive industrial duty. Designed for plug-in mounting, it supports quick installation and replacement, making it practical for OEM equipment, panel builders, and maintenance teams.
Key Features:
- DPDT Contact Configuration: Two changeover contacts provide versatile switching for control and power circuits.
- 15 A Rated Current: Handles higher-demand loads in AC applications, including inductive and resistive systems.
- 240 VAC Coil: Compatible with standard control-voltage architectures in industrial environments.
- High Service Life: Mechanical life up to 10 million cycles and electrical life up to 100,000 cycles.
- Plug-In Mounting: Simplifies installation, replacement, and panel maintenance.
- Silver Cadmium Oxide Contacts: Ensures increased durability and stable contact performance under load.
- Fast Switching Performance: 20 ms make time and 4 ms break time support responsive control.
- Wide Temperature Range: Operates reliably from −40°C to +70°C for harsh environmental conditions.
The 700-HB32A2 delivers the reliability and precision required for general-purpose industrial control and automated switching applications.
