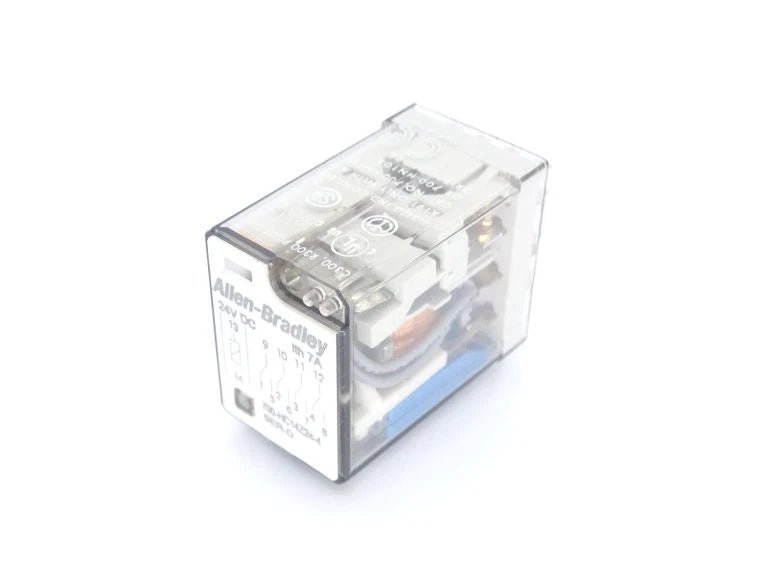

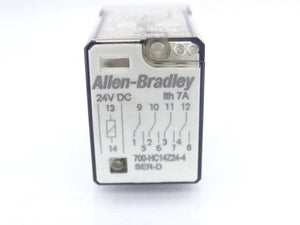

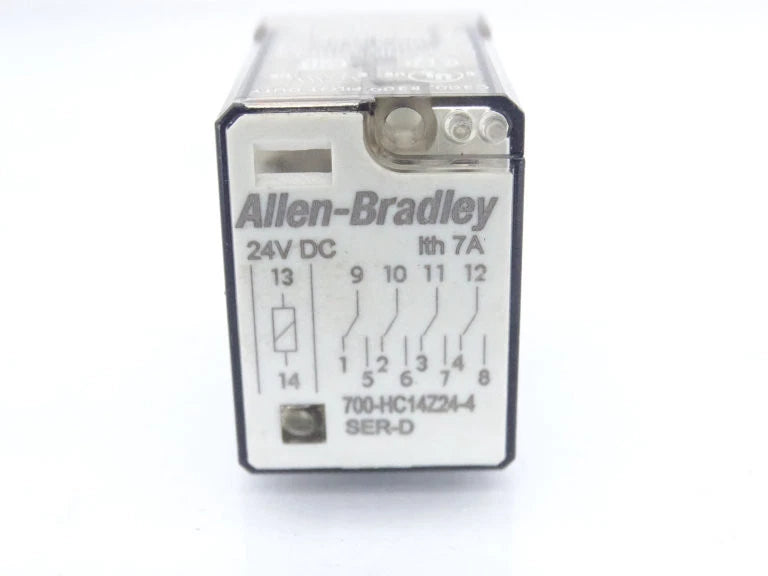

700-HC14Z24 | Allen-Bradley GP Ice Cube Relay
- Regular price
- $60.00
- Sale price
- $60.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 700-HC14Z24
Description
The 700-HC14Z24 is a general-purpose (GP) ice cube relay from Allen-Bradley, equipped with a 24V DC coil and a 4-pole double-throw (4PDT) contact configuration.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Panel Accessories
|
| Part Number | 700-HC14Z24 |
| Subcatecory |
Relay/Socket
|
| Amperage | 7 Amp |
|
Contact Configuration |
4 NO, 8 NC |
| Standard | CCC,CE,CSA,CUL,KC,UL |
| Coil Voltage | 24 V |
| Contact Rating | Gold Contacts |
| Type | Ice Cube |
| Weight | 0.04 lbs |
Information About 700-HC14Z24
The Allen-Bradley 700-HC14Z24 is a general-purpose miniature ice cube relay featuring a 24V DC coil and a 4-pole double-throw (4PDT) contact configuration. It is designed for reliable switching in industrial control applications, offering a compact solution with plug-in mounting for easy installation and maintenance.
Key Features:
-
Coil Voltage: 24V DC
-
Contact Configuration: 4PDT (4 Form C)
-
Contact Rating: 7 A at 250V AC / 30V DC
-
Contact Material: Gold-plated silver nickel (AgNi + 5 µm Au)
-
Mechanical Life: 50 million operations
-
Electrical Life: 100,000 operations minimum
-

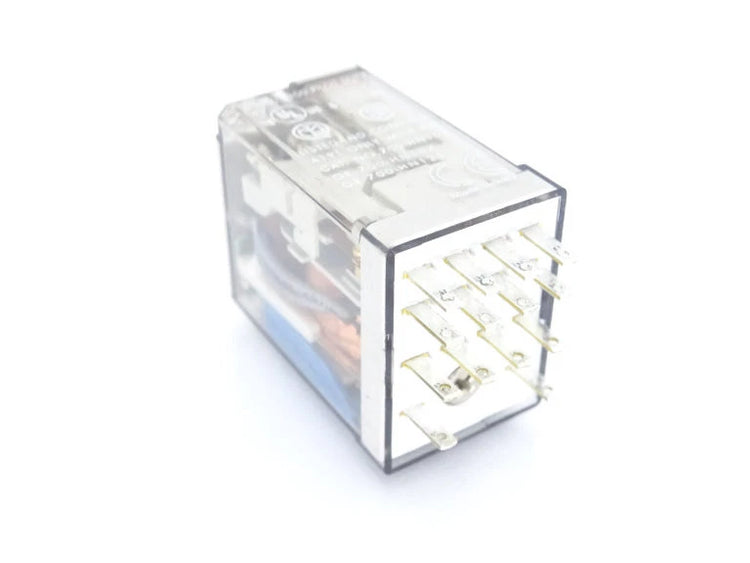

Mounting Type: Plug-in (14-blade terminal)
-
Dimensions (H x W x D): 37.2 mm x 27.7 mm x 20.7 mm
-
Operating Temperature Range: -30°C to +55°C
-
Protection Rating: IP20
This relay is suitable for applications requiring reliable low-energy switching, such as PLC interfacing and signal isolation. Its gold-plated contacts ensure dependable performance in low-voltage circuits.
