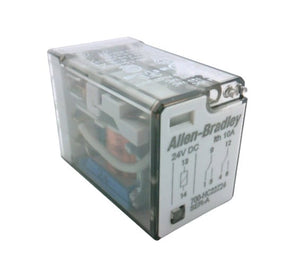

700-HC22Z24 | Allen-Bradley Ice Cube Relay
- Regular price
- $49.00
- Sale price
- $49.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 700-HC22Z24
Description
The Allen-Bradley 700-HC22Z24 is a miniature "Ice Cube" general-purpose relay designed for low-energy switching applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Relays
|
| Part Number | 700-HC22Z24 |
| Subcategory |
Relays & Sockets
|
| Relay Type | Miniature (Ice Cube) |
| Base Type | Square Base |
| Terminal Type | Blade-Style Terminals |
| Status Indicator | ON/OFF Indicator |
| Number of Poles | 2-Pole (DPDT) |
| Contact Rating | 10 Amps |
| Coil Voltage |
24 VDC
|
| Weight |
0.05 kgs
|
Information About 700-HC22Z24
The Allen-Bradley 700-HC22Z24 is a general-purpose miniature "Ice Cube" relay designed for versatile industrial applications.
Key Features:
-
Coil Voltage: 24 V DC
-
Contact Configuration: Double Pole Double Throw (DPDT), providing two independent changeover contacts
-
Contact Rating: Capable of handling up to 10 A at 250 V AC
-
Low Energy Switching Capability: Suitable for applications as low as 10 V, 10 mA
-
Coil Power Consumption: Approximately 1 W
-
Terminal Type: Blade-style terminals for plug-in connections
-
Contact Material: Silver Nickel (AgNi), ensuring reliable conductivity and durability
-
Mechanical Durability: Rated for up to 50 million operations
-
Electrical Durability: Rated for a minimum of 100,000 cycles under load
-
Operating Temperature Range: -30°C to +55°C
-
Storage Temperature Range: -55°C to +85°C
-
Ingress Protection: IP20, indicating protection against solid objects larger than 12.5 mm
-
ON/OFF Indicator: Provides visual status of relay operation
-
Push-to-Test Button and Manual Override Lever: Facilitates easy testing and manual control of the relay
-
Pilot Light (LED Indicator): Offers visual indication of coil energization
This relay is part of Allen-Bradley's 700-HC series, known for its compact design and reliable performance in various control applications. The combination of its robust electrical and mechanical specifications, along with user-friendly features like the push-to-test button and pilot light, make it suitable for a wide range of industrial automation tasks.
