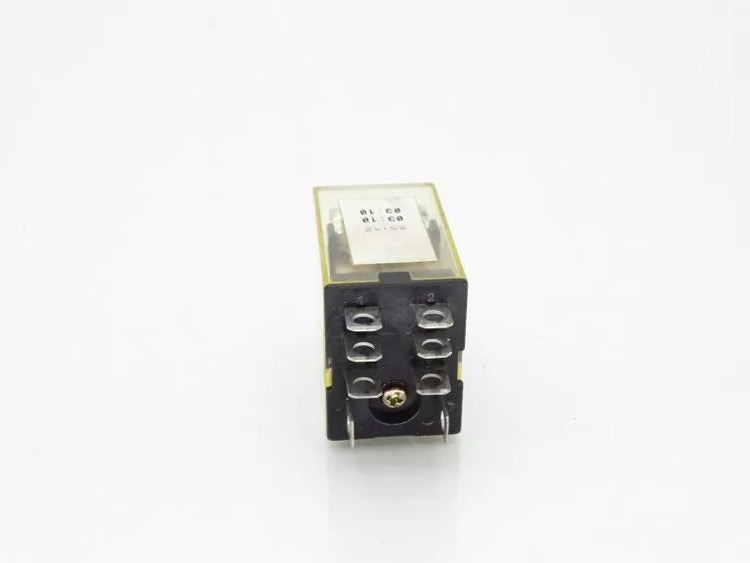

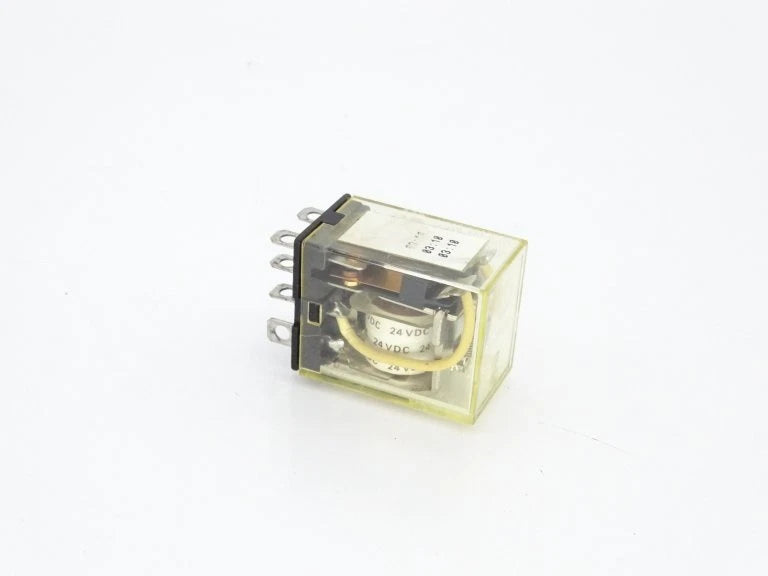

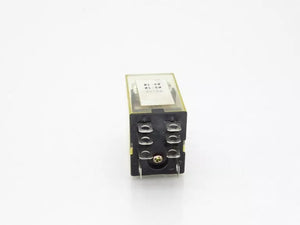

700-HF32Z24 | Allen-Bradley Miniature Square Base Relay
- Regular price
- $55.00
- Sale price
- $55.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 700-HF32Z24
Description
The 700-HF32Z24 is a compact miniature square base relay from Allen-Bradley, featuring a 24V DC coil and double-pole double-throw (DPDT) contact configuration.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Panel Accessories
|
| Part Number | 700-HF32Z24 |
| Subcatecory |
Relay/Socket
|
| Amperage | 12 Amp |
|
Contact Configuration |
2 NO, 4 NC |
| Standard | CCC,KC |
| Voltage | 24 VDC |
| Coil Voltage | 24 V |
| Contact Rating | 10 Amp Standard Contact |
| Weight | 0.10 lbs |
Information About 700-HF32Z24
The Allen-Bradley 700-HF32Z24 is a general-purpose miniature square base relay, designed for reliable performance in industrial control applications. It features a 24V DC coil and a double-pole double-throw (DPDT) contact configuration, providing versatile switching capabilities.
Key Features:
-
Contact Configuration: DPDT (2 Form C)
-
Coil Voltage: 24V DC
-
Contact Rating:
-
Resistive Load: 12 A @ 250 V AC; 12 A @ 30 V DC
-
Inductive Load: 0.5 A @ 110 V DC; 0.25 A @ 220 V DC
-
-
Power Consumption: 1 W (DC)
-
Mechanical Life: 20 million operations
-
Operating Time:
-
Pickup: 8 ms
-
Dropout: 3 ms
-
-
Mounting: Plug-in with 8-blade socket (e.g., 700-HN116 or 700-HN262)
-
Operating Temperature: –40 to +70 °C (–40 to +158 °F)
-
Certifications: UL Recognized, CSA Certified, CE Marked
The relay's compact design and plug-in mounting facilitate easy installation and maintenance, making it suitable for various control panel applications. Its robust construction ensures durability and consistent performance in demanding industrial environments.
