Part #: 700-HK36A1 Manufactured by: Allen-Bradley
$22.00
$22.00
2 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview

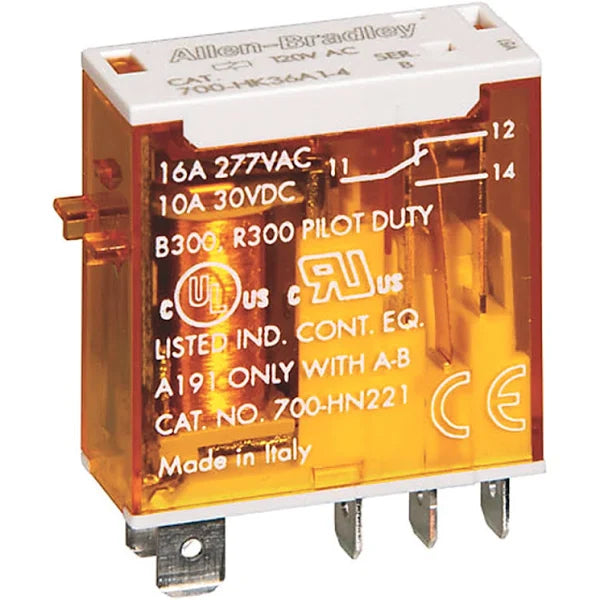

Allen-Bradley 700-HK36A1 700-HK General Purpose Slim Line Relay, SPDT, 16 Amp Contact, 120VAC, 50/60Hz
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Do you need help?

Call our Sales Manager
phone
+1 (828) 222-3490
Mon./Sat.: 7:00AM - 8:00PM
Write to us now
email
sales@iqelectro.com
Mon./Sat.: 7:00AM - 12:00PM
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 700-HK36A1
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 700-HK36A1

Description / Specifications

Description

The Allen-Bradley 700-HK36A1 is a General Purpose Slim Line Relay featuring a Single Pole Double Throw (SPDT) configuration, designed for versatile industrial applications. With a 120V rating, it ensures reliable and efficient control, making it an ideal choice for diverse automation and control systems.



Technical Specifications



Brand Allen-Bradley
Coil Voltage 120 VAC
Part Number 700-HK36A1
Complete w/ Socket No
Connection Type PLUG-IN BLADE-STYLE TERMINALS
Contact Current Rating 16 AMP
Contact Form SPDT
Contact Material Silver Nickel (AgNi)
Frequency 50/60 HZ
IP Rating IP20
LED Indication No
Product Family SLIM LINE
Product Type RELAY





Information About 700-HK36A1

The Allen-Bradley 700-HK36A1 is a versatile General Purpose Slim Line Relay, engineered for optimal performance in industrial automation and control systems. With a Single Pole Double Throw (SPDT) configuration, this relay provides flexibility in controlling electrical circuits. The 120V rating ensures compatibility with a range of applications, offering reliable switching capabilities.

Designed with precision, the 700-HK36A1 exhibits a slim and compact form factor, making it ideal for installations with space constraints. The SPDT design allows the relay to control both normally open and normally closed contacts, enabling versatile usage in various control scenarios.

The relay excels in responsiveness and accuracy, ensuring quick and precise switching operations. This reliability is crucial in applications where timing and precision are paramount for seamless system functionality.

The 700-HK series relays from Allen-Bradley are known for their robust construction, and the 700-HK36A1 is no exception. The durable design ensures longevity and resilience in demanding industrial environments, contributing to overall system reliability and minimizing downtime.

Installation and integration are streamlined with the user-friendly design of the 700-HK36A1. Its compatibility with standard industrial control systems allows for easy incorporation into existing setups, simplifying the deployment process.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

Frequently Asked Questions about 700-HK36A1
Question: What are the technical specifications of the 700-HK36A1?
Date Update:17/06/2025
Answer:
  • Coil Voltage: 120V AC
  • Contact Form: SPDT (1 Form C)
  • Contact Material: Silver Nickel (AgNi)
  • Contact Current Rating: 16 Amps
  • Frequency: 50/60 Hz
  • IP Rating: IP20
  • Terminal Type: Plug-in blade-style
  • LED Indicator: No
  • Relay Family: Slim Line

These specs define the relay's operational limits and installation requirements.

Question: How is the 700-HK36A1 installed?
Date Update:17/06/2025
Answer:

Installing the 700-HK36A1 relay is straightforward due to its plug-in blade-style terminals. The relay fits into a compatible socket, allowing for quick connection without the need for soldering or complex wiring. Its compact profile is beneficial in tight enclosures, saving valuable space inside control cabinets. Care should be taken to match the socket type and ensure the correct coil voltage is supplied to avoid damage. Once mounted, it becomes a reliable switching component within the control system.

Question: Does the 700-HK36A1 have an LED indicator?
Date Update:17/06/2025
Answer:

No, the 700-HK36A1 does not come with an integrated LED status indicator. This means users must rely on external indicators or control system diagnostics to monitor its activation state. While this may be seen as a limitation in some cases, it helps keep the relay design compact and cost-effective. For applications where visual indication is necessary, selecting a relay variant with LED or incorporating a separate signal lamp may be advisable. This design choice is common in basic relays optimized for space and simplicity.

Question: How does the SPDT configuration benefit industrial applications?
Date Update:17/06/2025
Answer:

The SPDT (Single Pole Double Throw) configuration enables the relay to switch a single input between two outputs. This flexibility is particularly valuable in automation setups where conditional switching or alternate circuit routing is needed. For example, it can be used to toggle between normal operation and fail-safe modes or to switch loads based on control logic. The ability to simultaneously control a normally open and normally closed path within the same relay increases its versatility in wiring designs.

Question: Is the 700-HK36A1 still in production?
Date Update:17/06/2025
Answer:

Yes, the 700-HK36A1 is currently in production and has an “Active” lifecycle status. This indicates that the product is supported, readily available, and suitable for use in both new installations and maintenance of existing systems.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
