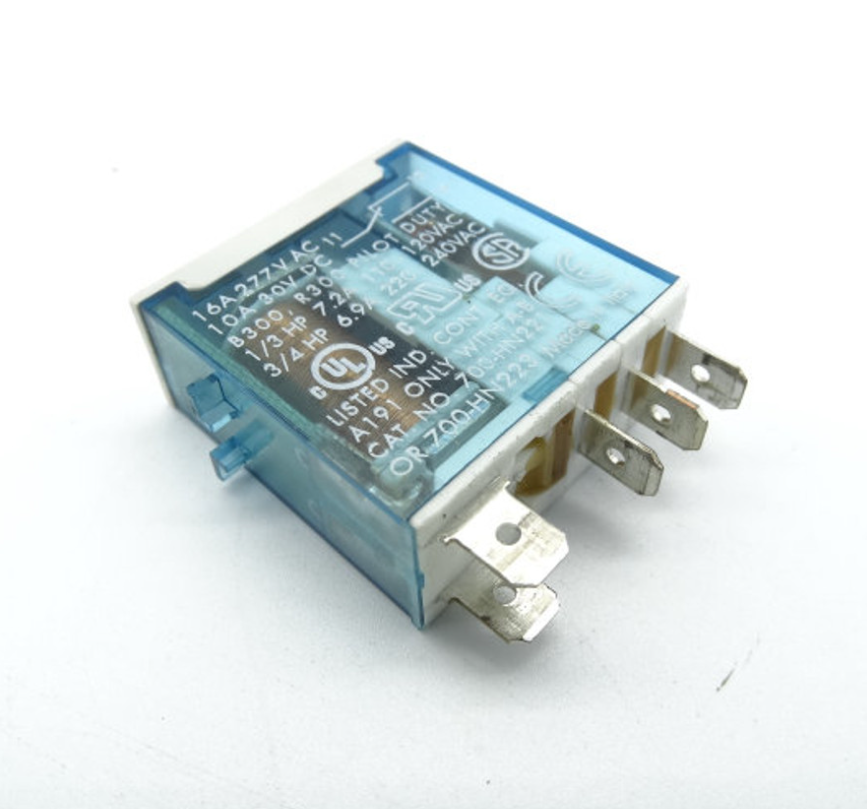

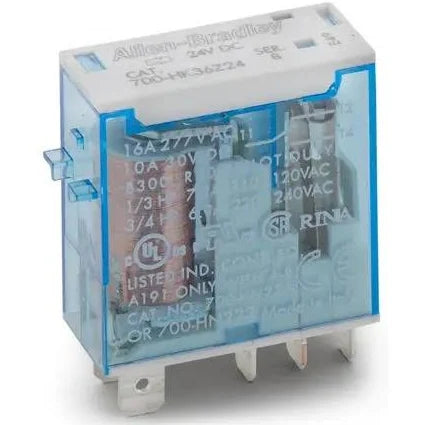

700-HK36Z24 | Allen-Bradley General Purpose Slim Line Relay
- Regular price
- $24.00
- Sale price
- $24.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 700-HK36Z24
Description
Lower power consumption and long life equal big savings. Allen-Bradley Bulletin 700 relays and timing relays allow you to focus on core activities, not parts. And 700-HK interposing relays features a jumper system to reduce wearing costs. Catalog item 700-HK36Z24 from Rockwell Automation is a 24 V DC general purpose slim line relay. Its specifications include: standard contacts and one changeover contact (single pole double throw, SPDT) 16 A.
Technical Specifications
| Condition |
New / Never Used Surplus |
| Brand | Allen-Bradley |
| Category | Panel Accessories |
| Part Number | 700-HK36Z24 |
| Subcategory | Relay/Socket |
| Contact Rating | 16 Amp Standard Contact |
| Contact Configuration | SPDT Contact Arrangement |
| Coil Voltage | 24V DC |
| Number of contacts as change-over contact | 1 |
| Nominal current | 16 A |
| Complete with socket | No |
| With LED indication | No |
| Voltage type for actuating | DC |
| Rated control supply voltage at DC | 24 V |
| Type of electric connection | Plug-in connection |
| Rated thermal current (Ith) | 16 A |
| Electrical life cycle | B300, R300, Hp (kW): 6000 minimum |
| With detachable clamps | No |
| With forced-guided contacts | No |
| Degree of protection (IP) | IP20 |
| Shock Operational | 15 G |
| Vibration | Operational: 10...2000 Hz, 0.76 mm (0.03 inch) 2.5 G |
| List of degrees of protection (IP) | IP20 with guarded terminal socket |
| Width | 29 mm |
| Height | 39.3 mm |
| Depth | 12.4 mm |
| Contact material | Silver Nickel (AgNi) |
| Material of contact surface | Other |
| Operating temperature | 40 °C |
| Storage temperature | 40 °C |
Information About 700-HK36Z24
The Allen-Bradley 700-HK36Z24 General Purpose Slim Line Relay is engineered for versatile industrial applications requiring reliable switching capabilities. With a contact rating of 16 Amps and a single-pole double-throw (SPDT) contact arrangement, this relay offers robust performance in diverse control systems.
Featuring a coil voltage of 24V DC, this relay is suitable for use with direct current power sources. It includes one change-over contact, facilitating flexible circuit configurations. The nominal current rating of 16A ensures compatibility with moderate to high-power electrical loads.
The compact design of the 700-HK36Z24 relay makes it ideal for space-constrained installations. Measuring just 29mm in width, 39.3mm in height, and 12.4mm in depth, it can be easily integrated into control panels or machinery.
This relay is designed for durability, with a rated electrical life cycle of at least 6000 operations. The contact material, Silver Nickel (AgNi), ensures excellent conductivity and resistance to arcing. Moreover, the relay is rated for an operating temperature range of -40°C to 40°C, making it suitable for use in various environmental conditions.
Despite its compact size, the 700-HK36Z24 relay maintains high levels of safety and reliability. It features IP20 degree of protection, safeguarding against dust and solid objects. Additionally, it undergoes rigorous testing for shock and vibration resistance to ensure uninterrupted performance in demanding industrial environments.
While lacking LED indication and detachable clamps, this relay offers a dependable solution for control and switching applications where space-saving design and robust performance are paramount.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
