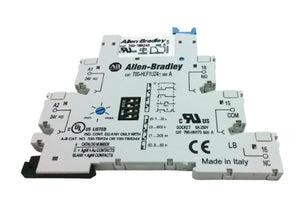

700-HLF1U24 | Allen-Bradley 24V AC/DC Terminal Block Timing Relay
- Regular price
- $79.00
- Sale price
- $79.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 700-HLF1U24
Description
The Allen-Bradley 700-HLF1U24 is a compact and versatile electro-mechanical timing relay designed for industrial automation and control systems. Featuring four timing functions, integrated socket, LED indication, and surge protection, this relay provides a dependable time-delay solution for applications requiring modular, field-replaceable timing control.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category | Relays |
| Part Number | 700-HLF1U24 |
| Subcatecory |
Relays & Sockets
|
| Coil Voltage | 24V AC/DC |
| Contact Configuration | 1 NO, 1 NC |
| Relay Rating | 6 A |
| Timing Functions | 4 (selectable) |
| Mounting Base | Screw Terminals with Retainer Clip |
| Connection Type | Screw Terminals |
| Standards Compliance | CCC, CE, CUL, KC, UL |
| Weight | 0.0700 lb |
Information About 700-HLF1U24
The 700-HLF1U24 operates on a 24V AC/DC coil voltage, offering dual-voltage compatibility for flexible integration into control panels. It includes 1 normally open (NO) and 1 normally closed (NC) contact configuration, rated at 6 amps, making it suitable for controlling a variety of electrical loads. The unit mounts via a screw-terminal base with a built-in retainer clip, ensuring quick installation and secure connections in tight control cabinet environments.
Key Features:
-
4 Selectable Timing Functions: Supports flexible time-delay applications such as ON-delay, OFF-delay, interval, and flashing.
-
24V AC/DC Dual Voltage Coil: Allows integration into a wide range of control systems.
-
1 NO + 1 NC Contacts: Provides versatile switching for automation and control circuits.
-
Screw Terminal Base with Retainer Clip: Enables fast, reliable DIN-rail or panel mounting.
-
LED Indicator & Surge Protection: Enhances usability and protects coil circuitry.
The 700-HLF1U24 is ideal for machine builders, OEMs, and industrial control system designers needing compact, configurable timing relays with modular serviceability.
