Part #: 700-HLT1Z24 Manufactured by: Allen-Bradley
$29.00
$29.00
5 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Allen-Bradley 700-HLT1Z24 terminal block relay combines compact design, integrated protection, and easy wiring for dep...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Do you need help?

Call our Sales Manager
phone
+1 (828) 222-3490
Mon./Sat.: 7:00AM - 8:00PM
Write to us now
email
sales@iqelectro.com
Mon./Sat.: 7:00AM - 12:00PM
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 700-HLT1Z24
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 700-HLT1Z24

Description / Specifications

Description

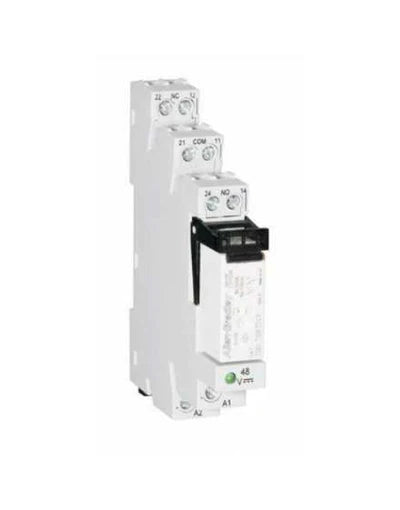

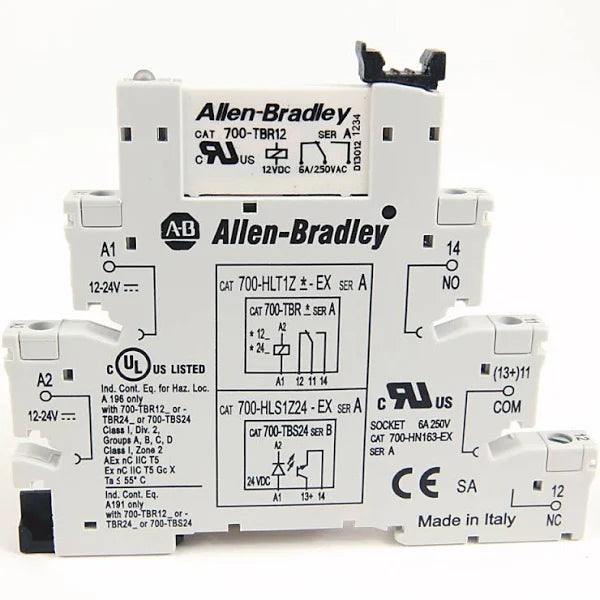

The Allen-Bradley 700-HLT1Z24 is a Bulletin 700-HL series terminal block relay designed for 24V DC input. It features screw terminals, LED status indication, and built-in protections for safe and reliable control applications.





Technical Specifications

Condition New / Never Used Surplus
Coil Surge Protection
 Yes
Contact Configuration SPDT
Current Rating 6 Amp
Indication Style LED
Mounting Style Din Rail Mount
Product Type TERMINAL BLOCK RELAY
Relay Socket Yes
Retainer Clip Build-In
Terminal Style SCREW CLAMP TERMINALS
Voltage 24 VDC
Manufacture Rockwell
Brand Allen-Bradley
Brand Series 700 series
Series A





Information About 700-HLT1Z24

The 700-HLT1Z24 is part of the Allen-Bradley 700-HL series of terminal block relays, designed for compact control integration in industrial systems. It supports 24V DC coil input and operates at a nominal current of 6 A, making it suitable for a variety of loads. Equipped with an LED indicator, it provides immediate visual feedback of relay status, while reverse polarity protection and coil surge suppression enhance operational safety and reliability. The relay uses screw terminals with a recommended torque of 0.5 N·m, ensuring strong and secure connections. It consumes only 0.5 W of power and includes detachable clamps for simplified maintenance or replacement. Rated IP20, the relay is intended for installation in controlled indoor environments. With its design allowing interchangeability between electromechanical and solid-state configurations, the 700-HLT1Z24 offers versatility and durability in automation systems.

Key Features:

  • Input voltage: 24V DC coil supply compatible with control circuits.
  • Current rating: Nominal load current capacity of 6 A for diverse applications.
  • Power consumption: Low power requirement of 0.5 W for efficient operation.
  • Terminal type: Screw terminals with recommended torque of 0.5 N·m for secure wiring.
  • Status indication: Integrated LED for clear relay status visibility during operation.
  • Protection features: Built-in reverse polarity and coil surge protection for safe operation.
  • Maintenance design: Detachable clamps allow quick servicing or relay replacement.
  • Interchangeability: Supports electromechanical and solid-state configurations for flexible use.
  • Protection rating: IP20 housing, designed for indoor and panel-protected environments.
  • Application: Suitable for compact, reliable control in automation and switching systems.

The 700-HLT1Z24 delivers the reliability and precision required for safe and efficient relay control in industrial automation applications.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

Frequently Asked Questions about 700-HLT1Z24
Question: What is Allen-Bradley 700-HLT1Z24?
Date Update:26/05/2025
Answer:

The Allen-Bradley 700-HLT1Z24 is an electromechanical relay from the 700 series, featuring a single-pole double-throw (SPDT) contact configuration and a 24V DC coil. It is designed for DIN rail mounting and includes touch-safe screw clamp terminals for safe and secure wiring. The device serves as an interposing or isolation relay, providing galvanic separation between input and output circuits. Its compact, robust design makes it ideal for industrial automation environments.

Question: Is it easy to install the 700-HLT1Z24?
Date Update:26/05/2025
Answer:

Yes, the 700-HLT1Z24 is designed for tool-free DIN rail mounting and features screw-type terminals for quick wiring. The touch-safe construction enhances safety during installation. An LED indicator helps visually confirm relay operation. The compact design makes it convenient to use in dense control cabinets or retrofit projects.

Question: Does the 700-HLT1Z24 have built-in surge protection?
Date Update:26/05/2025
Answer:

Yes, the coil circuit is equipped with surge protection to guard against voltage spikes and transients. This helps extend the relay’s lifespan and protects upstream control equipment from electromagnetic interference (EMI). Built-in protection is especially important in environments with frequent inductive load switching. It contributes to system reliability and reduces maintenance frequency.

Question: What are the dimensions of the Allen-Bradley 700-HLT1Z24 relay?
Date Update:26/05/2025
Answer:

The Allen-Bradley 700-HLT1Z24 relay is designed to be compact and space-efficient, ideal for DIN rail-mounted industrial control panels. While specific manufacturer data may vary slightly, its approximate size is typically around 78 mm (H) × 15 mm (W) × 78 mm (D), depending on the socket and mounting configuration. Its narrow width allows dense mounting of multiple relays side by side without occupying excessive panel space. This compact form factor makes it a suitable choice for both large control systems and space-constrained installations.

Question: Is the Allen-Bradley 700-HLT1Z24 still in production?
Date Update:26/05/2025
Answer:

As of the latest available information, the 700-HLT1Z24 remains in production and is actively supported by Rockwell Automation. It is commonly available through authorized distributors and automation parts suppliers. However, product availability may vary by region or inventory, so it is advisable to verify stock before planning large-scale deployment. Always check the latest Rockwell lifecycle status for updates.
