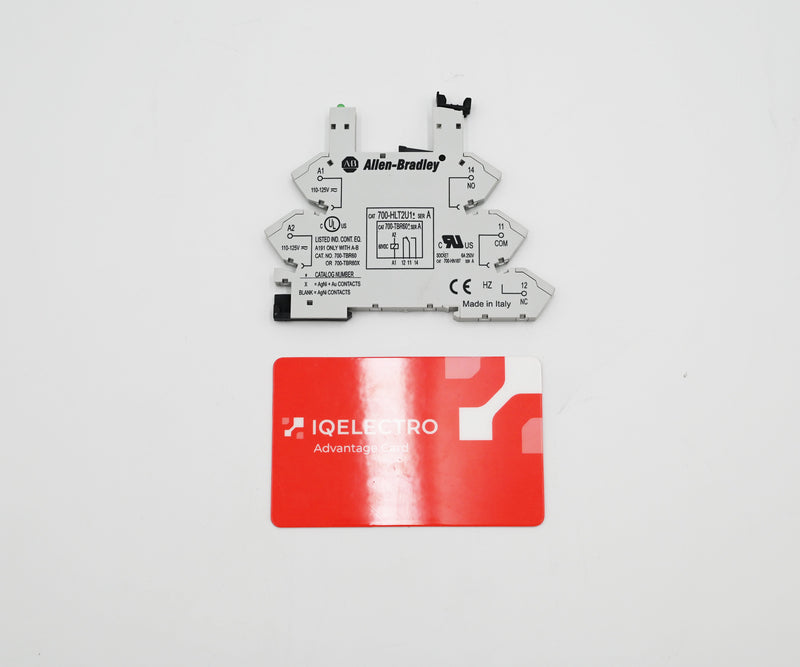

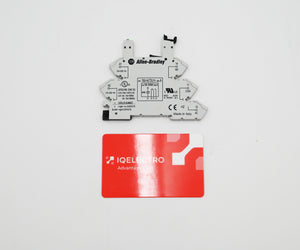

700-HLT2U1 | Allen Bradley Terminal Block Relay 120V AC/DC
- Regular price
- $22.00
- Sale price
- $22.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 700-HLT2U1
Description
The 700-HLT2U1 is a compact terminal block relay module with spring-clamp terminals and integrated LED status indicator. Designed for industrial relay control, it supports coil voltages of 110/125 V AC/DC and provides a single SPDT (1 NO) contact configuration rated for up to 6 A.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen Bradley |
| Category |
Panel Accessories
|
| Part Number | 700-HLT2U1 |
| Subcategory | Terminal Blk/Strip Wiring Dev |
| Type | Single Contact, Polarized |
| Contact Configuration | SPDT (1 NO) |
| Coil Voltage | 110/125 V AC/DC |
| Voltage Rating | 125 VAC, 125 VDC @ 50/60 Hz |
| Amperage Rating | 6 Amp |
| Contact Type | Standard Silver Contacts |
| Connection Type | Spring Clamp |
| Mounting Style | DIN rail with built-in retainer clip |
| Indicator | Standard LED status light |
| Protection Features | Coil surge protection, reverse polarity protection |
| Replaceability | Externally replaceable relay module |
| TC Connection | Tension Clamp Spring |
| Certifications | CCC, CE, UL, CUL, KC, MARINE |
| Application |
Electromechanical Relay Output / Interface Relay |
| Weight | 0.31 lbs |
Information About 700-HLT2U1
The 700-HLT2U1 is a terminal block relay unit from Allen-Bradley, combining an electromechanical relay and socket in a single, space-efficient housing. This model features a spring-clamp connection type and a built-in retainer clip for secure panel mounting. It offers standard silver contacts, coil surge suppression, status LED, and is designed to operate at 125 VAC or 125 VDC with 50/60 Hz frequency. Widely used in interposing, isolation, and control output circuits, it supports polarized coil wiring and is rated under multiple international standards including UL, CE, CUL, and MARINE.
Key Features:
- Relay Type: Electromechanical relay with single-pole, double-throw (SPDT) configuration for flexible control logic.
- Voltage Compatibility: Accepts coil input of 110/125 V AC/DC at 50/60 Hz, suitable for control systems worldwide.
- Amperage Rating: Contact supports up to 6 A current for general-purpose output switching.
- Connection Style: Spring-clamp terminals offer quick and secure wiring without tools.
- Built-in Components: Includes LED status indicator, reverse polarity protection, and surge protection for reliable operation.
- Certifications: Complies with CCC, CE, UL, CUL, KC, and marine certifications for broad acceptance.
- Replaceability: Externally replaceable relay module enables convenient field maintenance.
- Contact Material: Features standard silver contacts for general-purpose reliability.
- Mounting Options: Designed for DIN rail mounting, includes built-in retainer clip and snap-in marker lever.
- Application Scope: Ideal for signal isolation, interface relays, and interposing logic in automation panels.
The 700-HLT2U1 delivers dependable signal control and isolation in compact relay-based automation designs.
