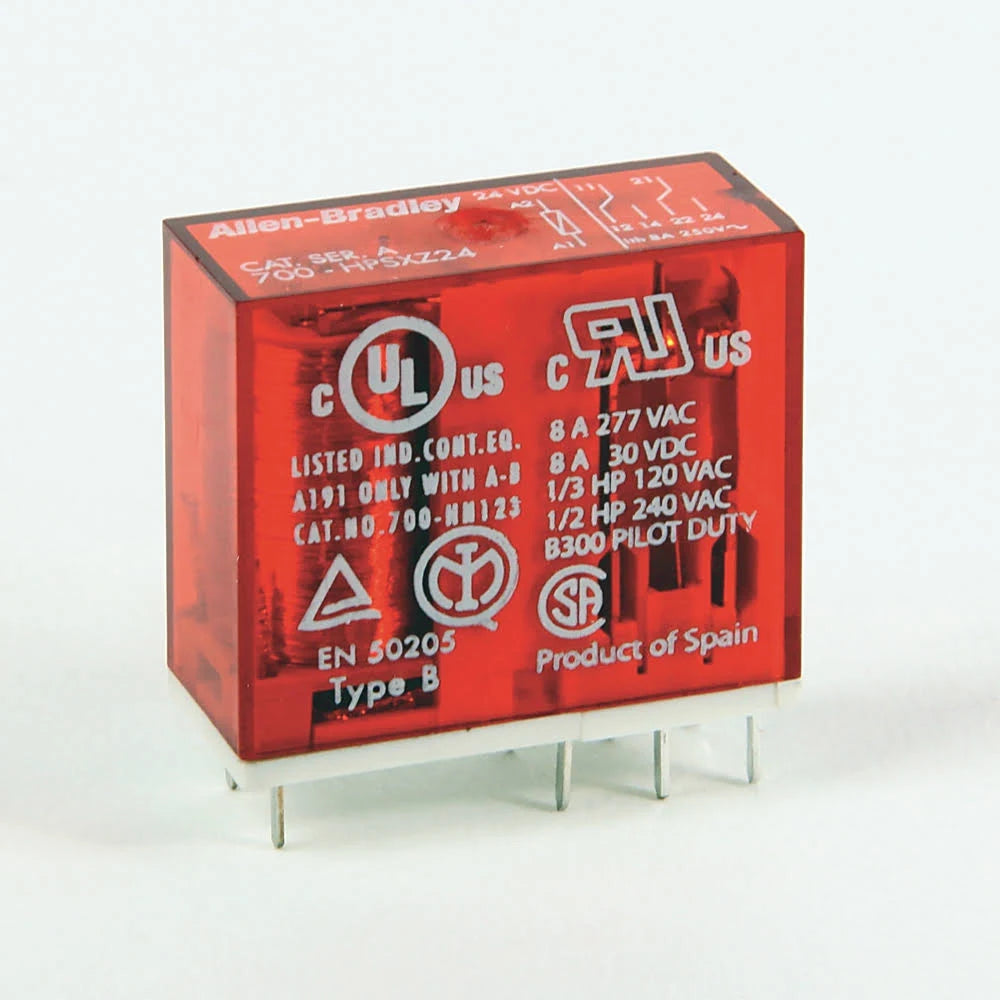

700-HPSXZ24 | Allen-Bradley Safety Control Relay 2 Poles 8A
- Regular price
- $95.00
- Sale price
- $95.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 700-HPSXZ24
Description
The Allen-Bradley 700-HPSXZ24 is a safety control relay engineered for reliable operation in safety-critical applications. With a 2-pole DPDT configuration, 8A contact rating, and gold-plated contacts, this relay ensures dependable performance and safe switching of control circuits.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Safety Systems
|
| Part Number | 700-HPSXZ24 |
| Subcategory | Safety Relay |
| Contact Rating | 8 A |
| Number of Poles | 2 Pole |
| Standard | CCC, KC |
| Terminal Connection | Gold Plated Contacts |
| Relay Type | Safety Control |
| Mounting Style | Plug-in Pin-Style Terminals |
| Pin Spacing | 5 mm |
| Mechanically Linked Contacts | Yes |
| Enclosure Style | Open Style |
| Weight | 0.0420 lb |
Information About 700-HPSXZ24
The 700-HPSXZ24 features a 24 V DC coil voltage and is equipped with gold-plated contacts, which enhance conductivity and reduce the risk of oxidation or contamination in harsh environments. This relay is designed with a DPDT (Double Pole Double Throw) contact configuration, supporting flexible circuit design and control tasks. It meets global safety standards including CCC and KC, ensuring compatibility with international industrial control systems. The 700-HPSXZ24 is housed in an open-style, plug-in design with 5 mm pinning, simplifying installation and maintenance in control panels. Mechanically linked contacts provide added safety, ensuring positive mechanical operation for critical applications.
Key Features:
- Contact Configuration: DPDT (Double Pole Double Throw) provides versatile switching capabilities, supporting complex control logic and ensuring operational flexibility.
- Contact Rating: Rated for 8 Amps, making it suitable for medium-load switching tasks in industrial safety and control circuits.
- Coil Voltage: Operates at 24 V DC, compatible with standard industrial control voltages and ensuring reliable coil activation.
- Gold-Plated Contacts: Enhances conductivity, reduces contact resistance, and prevents oxidation, providing consistent and reliable electrical performance in demanding environments.
- Number of Poles: 2-pole design allows simultaneous control of two independent circuits, contributing to system safety and versatility.
- Mechanically Linked Contacts: Provides enhanced safety by ensuring positive mechanical operation and contact alignment, essential in safety-critical control applications.
- Mounting Style: Open-style design with plug-in pin-style terminals simplifies installation, inspection, and maintenance, reducing downtime during servicing.
- Terminal Pinning: 5 mm pin spacing facilitates compatibility with standard sockets and PCB assemblies, supporting easy integration into existing systems.
The 700-HPSXZ24 provides a robust and reliable solution for safety control circuits, combining mechanical reliability and electrical performance for critical applications.
