Part #: 700-HR52TA17 Manufactured by: Allen-Bradley
$177.00
$177.00
1 in Stock
Condition: New – Open box
Shipping calculated at checkout.
Product Overview
Allen Bradley 700-HR52TA17 700-HR General Purpose Dial Timing Relay, Multi-Function, 2 Timed Contacts w/ No Voltage Inputs...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Do you need help?

Call our Sales Manager
phone
+1 (828) 222-3490
Mon./Sat.: 7:00AM - 8:00PM
Write to us now
email
sales@iqelectro.com
Mon./Sat.: 7:00AM - 12:00PM
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 700-HR52TA17
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 700-HR52TA17

Description / Specifications

Description

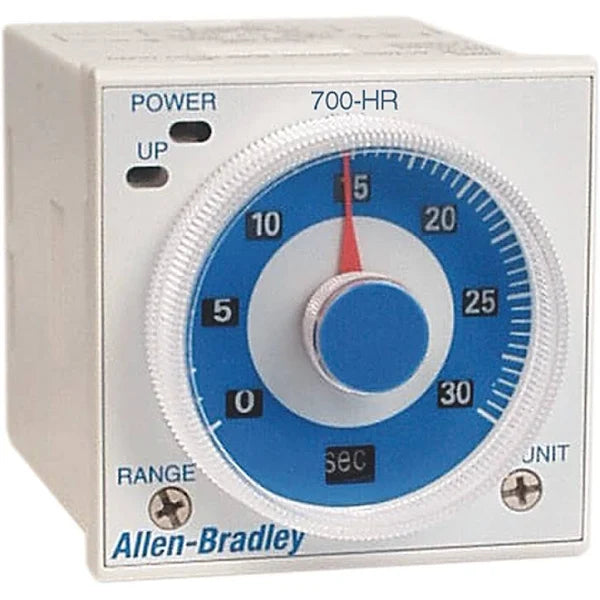

The Allen-Bradley 700-HR52TA17 is a plug-in tube-base dial timing relay designed for multi-mode industrial timing applications. This part number supports a wide timing range from 0.05 seconds to 300 hours and includes two independently timed contacts. Its DPDT contact arrangement and multi-function timer design make it suitable for a variety of control and sequencing tasks.





Technical Specifications

Condition New/Never Used Surplus
Brand Allen-Bradley
Category Relay
Part Number 700-HR52TA17
Subcategory Timing Relay
Relay Type Tube-base dial timing relay
Coil Voltage 100–240 VAC / 100–125 VDC
Connection Type Plug-in
Pins 11
Timer Type Multi-function (6 modes)
Timing Range 0.05 s to 300 h
Contact Form DPDT
Timed Contacts 2, no-voltage inputs
Nominal Current Rating 5 A
IP Rating IP40
Product Type Relay
Construction Dial-adjustable timing module
Application Industrial sequencing, delay control

Information About 700-HR52TA17

The 700-HR52TA17 is part of the Allen-Bradley 700-HR series, a line of timing relays built for flexible process control. It features an 11-pin plug-in tube base, a front dial for manual adjustment, and a durable enclosure rated to IP40. The relay supports six selectable operating modes, allowing integration into diverse control schemes requiring on-delay, off-delay, interval, or cyclic timing. Typical applications include machine sequencing, delay control, event triggering, and automation processes where long or short timing windows are essential.

Key Features:

  • Wide Timing Range: Adjustable from 0.05 seconds up to 300 hours for maximum versatility.
  • Multi-Function Operation: Provides six timing modes for diverse industrial control needs.
  • DPDT Contact Form: Includes two timed contacts for multi-event switching.
  • Universal Coil Input: Operates on 100–240 VAC or 100–125 VDC supplies.
  • 11-Pin Plug-In Base: Tube-base design simplifies installation and replacement.
  • Front Dial Adjustment: Allows quick configuration of timing parameters.
  • IP40 Housing: Designed for protected environments in control panels.

The 700-HR52TA17 delivers the reliability and precision required for industrial timing and sequencing applications.

Frequently Asked Questions about 700-HR52TA17
Question: What is the primary function of the 700-HR52TA17?
Date Update:16/06/2025
Answer:

This part number suggests it is an Allen-Bradley timing relay, likely a part of the 700-HR series. Its function is to control power circuits by delaying switching operations based on time settings (on-delay, off-delay, interval, etc.).

Question: How do I wire the 700-HR52TA17?
Date Update:16/06/2025
Answer:

Standard wiring:

  • A1 and A2: Coil supply (power input)
  • 15, 16, 18: Changeover relay contacts (common, normally closed, normally open)

For safety:

  • Disconnect power before installation.
  • Double-check polarity and timing function settings.
Question: What voltage ranges are supported by the 700-HR52TA17?
Date Update:16/06/2025
Answer:

The 700-HR52TA17 supports a wide voltage input range of 24 to 240V AC/DC, making it adaptable to various industrial power standards without the need for a separate model for each voltage class. This universal supply design simplifies inventory and engineering planning.

Question: What kind of output contact does the 700-HR52TA17 use?
Date Update:16/06/2025
Answer:

The 700-HR52TA17 uses an SPDT (Single Pole Double Throw) relay output:

  • Contact Ratings:
    Up to 8A resistive at 250V AC
    Suitable for low to medium power control circuits
  • Capable of handling both inductive and resistive loads, with protective snubber circuits recommended for inductive applications.
Question: How do I troubleshoot a non-responsive 700-HR52TA17?
Date Update:16/06/2025
Answer:

If the 700-HR52TA17 isn’t functioning:

  • Check power input at A1/A2
  • Verify function and time range settings
  • Inspect output connections and measure continuity
  • Observe LED indicators to determine if timing is in progress or if there’s a relay fault
  • Ensure load isn’t exceeding rated output

Also check for wiring errors or shorts, and verify that DIP switches (if present) are in the correct position.
