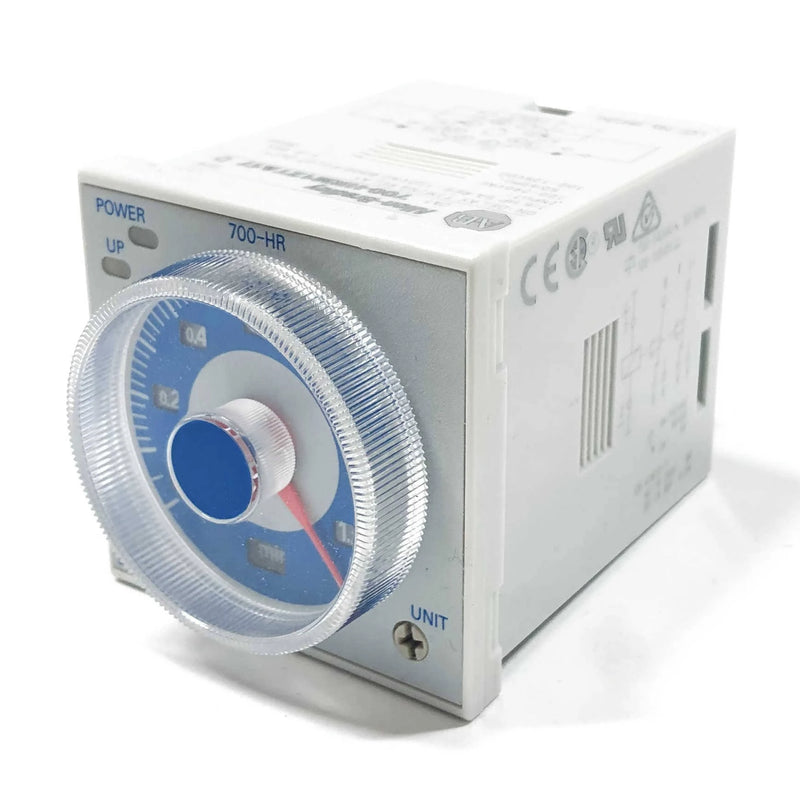

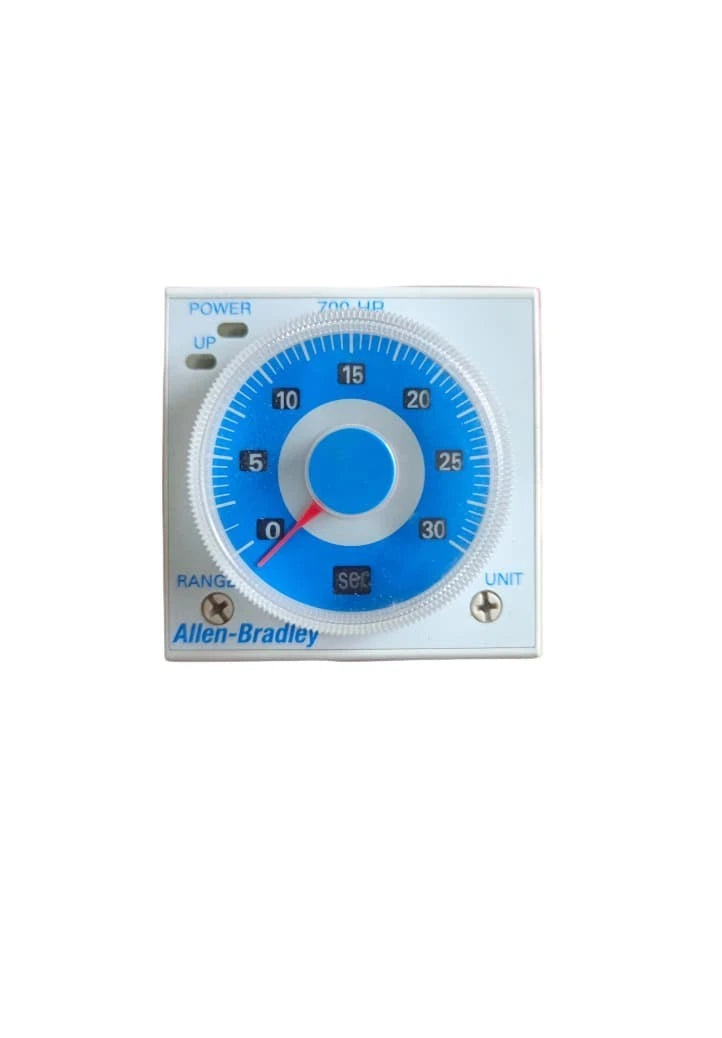

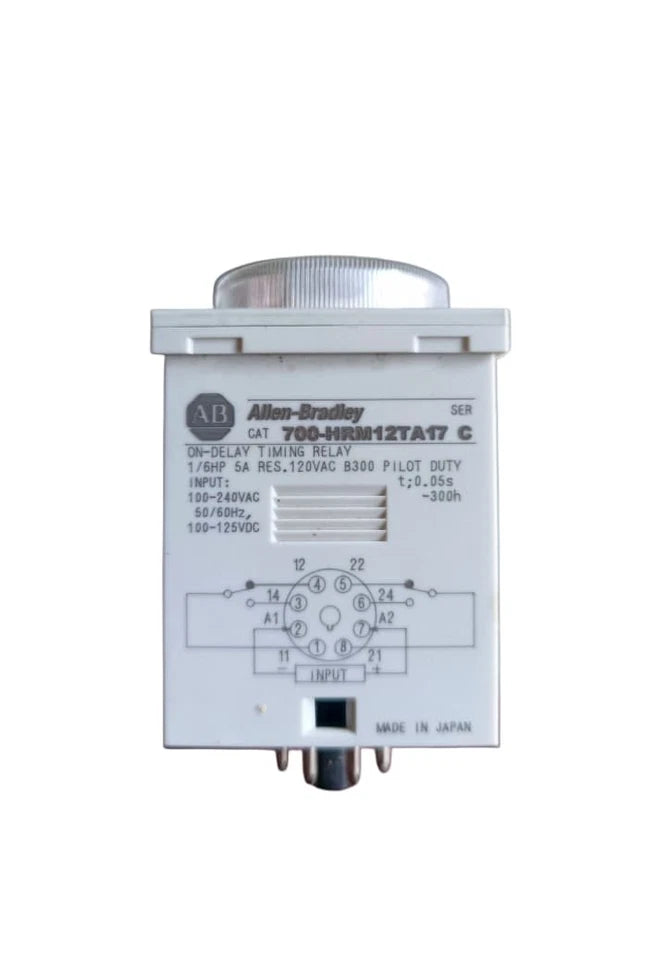

700-HRM12TA17 | Allen-Bradley General Purpose Dial Timing Relay
- Regular price
- $139.00
- Sale price
- $139.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 700-HRM12TA17
Description
The Allen-Bradley 700-HRM12TA17 is a general-purpose dial timing relay with a tube base and ON-delay functionality. With a wide timing range and double-pole double-throw (DPDT) contact configuration, it is designed for flexible use in industrial control systems requiring precise delay and reset operations.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Controls & Indicators
|
| Part Number | 700-HRM12TA17 |
| Subcategory | Time Delay Relay |
| Timing Range |
0.05 seconds to 300 hours
|
| Contact Configuration | DPDT (Double Pole Double Throw) |
| Coil Voltage | 100–125 V |
| Operating Voltage | 100–240 VAC, 50/60 Hz |
| Switching Current | 5 Amp |
| Base Type | 8-Pin Tube Base |
| Mounting Type | Front |
| Standards | CCC, KC |
| Weight | 0.2600 lb |
Information About 700-HRM12TA17
The 700-HRM12TA17 is a timing relay designed for ON-delay operations, initiating its delay upon power-on and resetting automatically when power is removed. It features an 8-pin tube base for easy socket mounting and operates across a wide voltage range of 100–240V AC at 50/60 Hz. The timing range is highly versatile, adjustable from 0.05 seconds up to 300 hours, making it suitable for applications ranging from fast cycle machinery to long-delay processes.
Key Features:
- ON-Delay Functionality: Begins timing upon power application and resets when power is removed—ideal for delay start and power sequencing operations.
- Wide Timing Range: Adjustable from 0.05 seconds to 300 hours, suitable for short and extended timing control scenarios.
- DPDT Contact Configuration: Provides two separate changeover circuits for versatile output control across different system loads.
- Tube Base Design: Equipped with a standard 8-pin tube base for quick and reliable plug-in installation using a relay socket.
- Universal Voltage Support: Operates across 100–240V AC supply at both 50 Hz and 60 Hz, simplifying integration into diverse global systems.
- Front Mounting Type: Designed for front-panel installation, allowing clear access and dial adjustability for configuration or monitoring.
- Standard Compliance: Meets CCC and KC certifications, ensuring electrical safety and reliability in compliance with regional standards.
The 700-HRM12TA17 provides reliable, adjustable ON-delay timing for a wide range of industrial processes and automation tasks.
