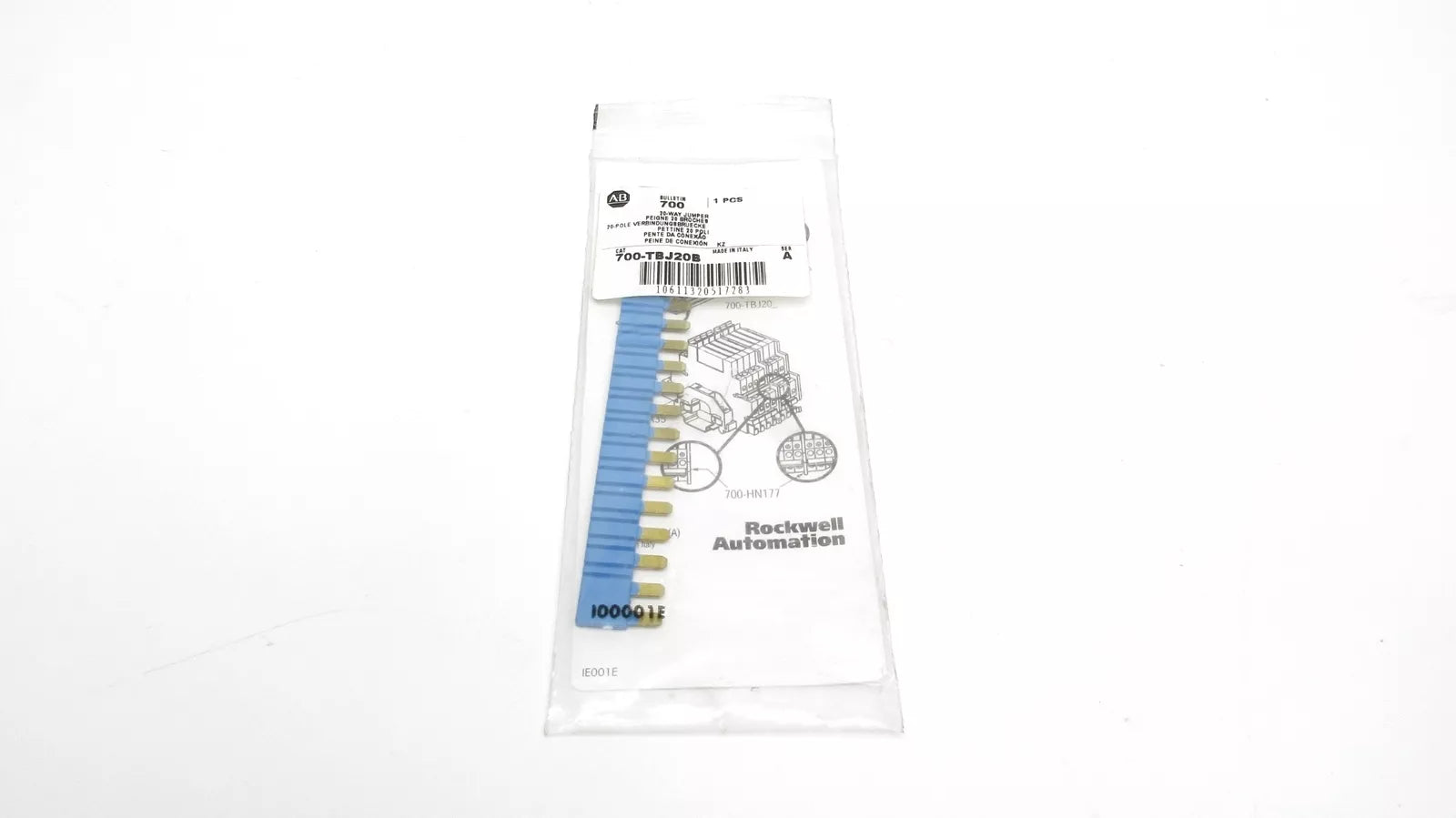

700-TBJ20B | Allen-Bradley 20-Way Jumper Link
- Regular price
- $62.00
- Sale price
- $62.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 700-TBJ20B
Description

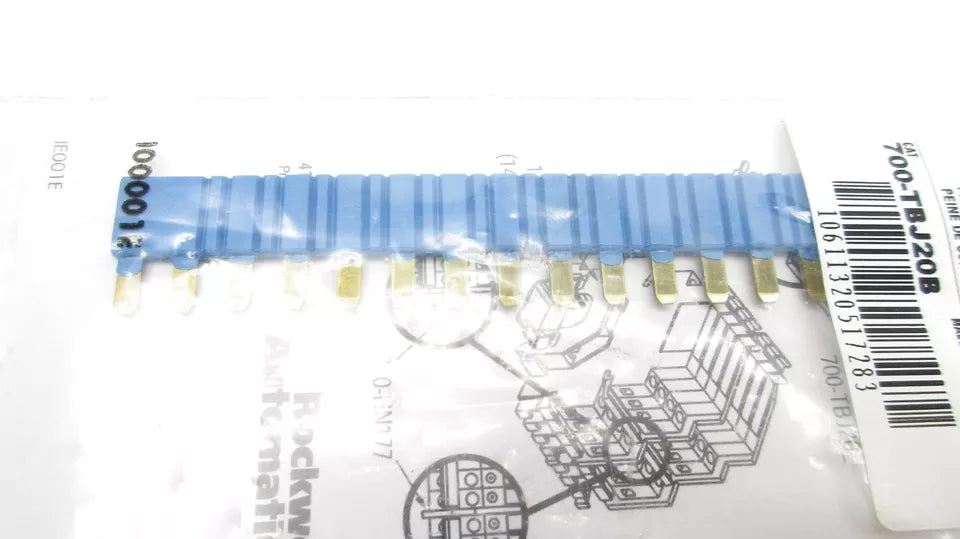

The Allen-Bradley 700-TBJ20B is a 20-way connection jumper link designed for quick and reliable interconnection of terminals in 700-HL relay bases. With a vibrant blue color for easy identification, this jumper significantly reduces wiring time and enhances panel organization.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
|
Category |
Automation and Control Systems
|
|
Part Number |
700-TBJ20B |
| Subcatecory |
Panel Accessories
|
| Amperage | 36 Amp |
| Standard | CCC,CSA,CUL,KC,UL |
| Voltage | 240 Volt |
| Applications | 700HL 1-Pole Relay |
| Type | Jumper Link |
| Color | Blue |
| Used With | Relay Socket |
| Number of Ways | 20 |
| Weight | 0.6600 lb |
Information About 700-TBJ20B
The 700-TBJ20B is used specifically with 1-pole 700-HL series relays, allowing up to 20 terminals to be electrically bridged with a single component. It supports a maximum current rating of 36 Amps and a voltage rating of 240V, ensuring dependable performance in control panels and automation systems.
Key Features:
-
20-Way Jumper Link: Connects up to 20 terminals in one operation.
-
Compatible with 700-HL Series Relays: Specifically designed for 1-pole base configurations.
-
Blue Color Coding: Enhances visual clarity and wiring identification.
-
High Current Rating: Supports up to 36 A, suitable for demanding relay circuits.
-
Voltage Rating: 240V: Safe operation within industrial control voltages.
-
Standards Compliant: UL, CSA, CUL, CCC, KC certified for global use.
-
Easy Installation: Reduces wiring effort and improves layout efficiency.
The 700-TBJ20B simplifies terminal block connectivity and is a reliable accessory for modular relay systems in automation, machinery, and process control.
