7008471-407 | Honeywell Weather Radar Controller
- Regular price
- $1,057.00
- Sale price
- $1,057.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 7008471-407
Description
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Avionics Systems
|
| Part Number | 7008471-407 |
| Subcategory | Weather Radar Controllers |
| Lighting Options | 28VDC or 5V AC/DC panel illumination |
| Bezel Options | Black or Gray bezel |
| Controls | Range (Up/Down), STAB, TGT Alert, TRB (model-dependent), SECT Sector Scan, GAIN/PULL VAR, Mode (OFF, STBY, WX, RCT, GMAP, FP, TEST), TILT/PULL ACT, LSS (model-dependent) |
| Operating Voltage | 28VDC nominal (22–32V maximum) |
| Power Consumption | 8.5 watts maximum |
| Current Draw | 0.3A nominal (0.4A maximum) |
| Panel Illumination Load | 28VDC at 0.3A nominal or 5V AC/DC at 1.0A nominal |
| Certifications (TSO) | C63C Class 7 (DO-173), DO-160B Environmental Category B1A/KS/XXXXXXAAAAA |
| Dimensions (H × W × L) | 1.89 in × 5.77 in × 7.94 in |
| Weight | 2.2 lbs |
Information About 7008471-407

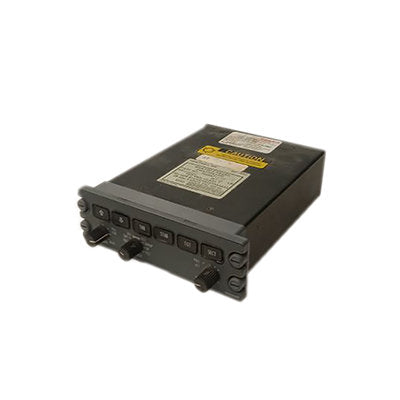

The 7008471-407 is a weather radar controller from Honeywell, designed for use with the Primus-880 digital weather radar system in aircraft. It consolidates all primary radar functions into a compact, panel-mounted unit, supporting installations that do not use a dedicated display. Offering control over radar modes, range, tilt, gain, and more, the 7008471-407 ensures efficient, precise weather monitoring for pilots operating in diverse flight conditions.
Key Features:
- All-in-One Radar Control: Manages range selection, tilt adjustment, mode switching, sector scanning, and gain control directly from the cockpit.
- 28 VDC or 5 V AC/DC Lighting: Supports panel illumination using either 28 VDC or 5 V AC/DC power, ensuring clear operation visibility.
- Black or Gray Bezel Options: Available in both black and gray bezel finishes to match cockpit aesthetics.
- Comprehensive Control Functions: Includes Range (Up/Down), STAB, TGT Alert, TRB (version-dependent), SECT Sector Scan, GAIN/PULL VAR, Mode (OFF, STBY, WX, RCT, GMAP, FP, TEST), TILT/PULL ACT, and optional LSS (Lightning Strike Switch).
- Compact, Lightweight Design: Measures 1.89″ height, 5.77″ width, and 7.94″ length; weighs approximately 2.2 lbs (1.0 kg), supporting efficient cockpit integration.
- Efficient Power Consumption: Operates at 28 VDC nominal (22–32 V range), consuming 8.5 watts maximum with a current draw of 0.3A nominal.
- TSO Certified: Complies with TSO C63C Class 7 (DO-173) and DO-160B environmental standards for avionics equipment reliability.
The 7008471-407 radar controller offers precise, intuitive control of Honeywell’s Primus-880 radar system, supporting reliable weather detection and flight safety in commercial and military aircraft applications.
