701819-303AC | ABB Bridge Rectifier Power Cube
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 701819-303AC
Description
701819-303AC ABB Bridge Rectifier Power Cube is a compact bridge rectifier module with integrated SCRs, designed for phase-controlled AC to DC conversion in Reliance Electric MiniPak variable speed drives.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | ABB |
| Category |
Semiconductors
|
| Part Number | 701819-303AC |
| Subcategory |
Bridge Rectifier
|
|
Weight
|
0.15 lbs
|
Information About 701819-303AC
The 701819-303AC is a Power Cube Bridge Rectifier originally manufactured by Reliance Electric, which has also been associated with brands like ABB and Baldor Reliance due to corporate acquisitions.
Key Features:
-
Functionality: This rectifier is designed to convert single-phase AC power into adjustable DC power suitable for motor armature circuits. It achieves this through phase-controlled rectification.
-

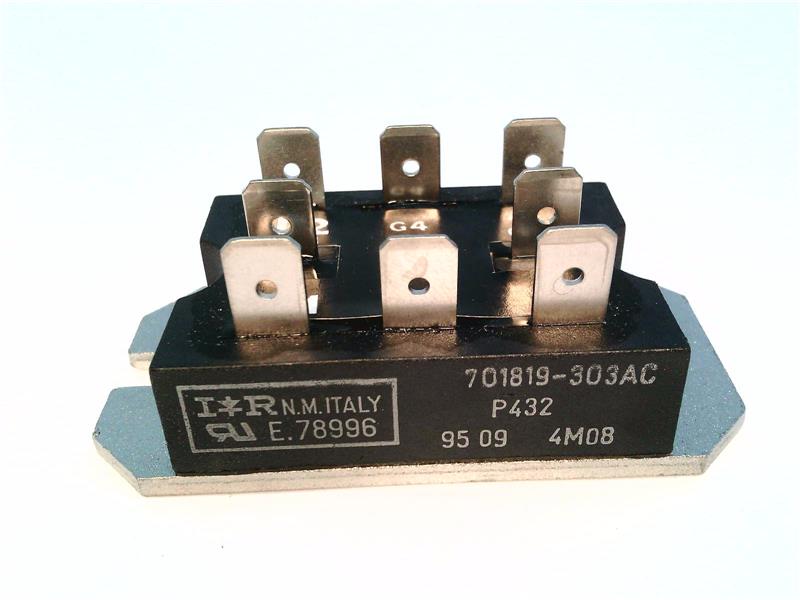

Design: The unit is compact, featuring a metal base with a carrier that includes eight stab-on connectors on its top. This design facilitates efficient heat dissipation and straightforward replacement.
-
Application: Typically utilized in Reliance Electric MiniPak DC Variable Speed Drives, the 701819-303AC is compatible with systems rated at:
-
¼ to ¾ horsepower at 115 VAC
-
½ to 1½ horsepower at 230 VAC
-
2 and 3 horsepower at 230 VAC
Two of these Power Cubes are generally required per controller in these setups.
-
-
Components: Each Power Cube contains two Silicon-Controlled Rectifiers (SCRs), essential for its rectification process.
