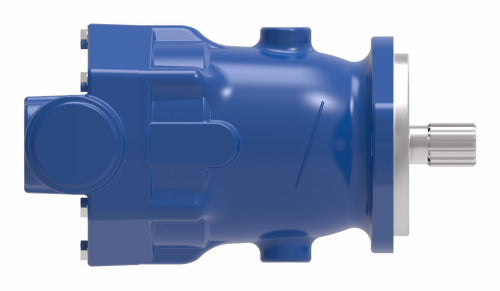

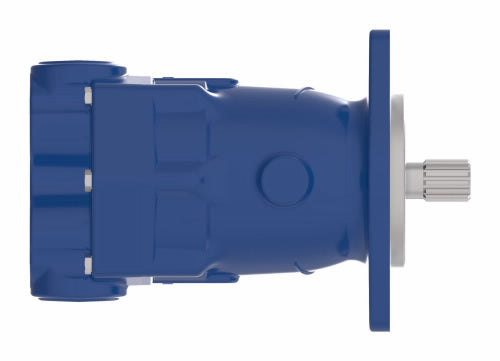

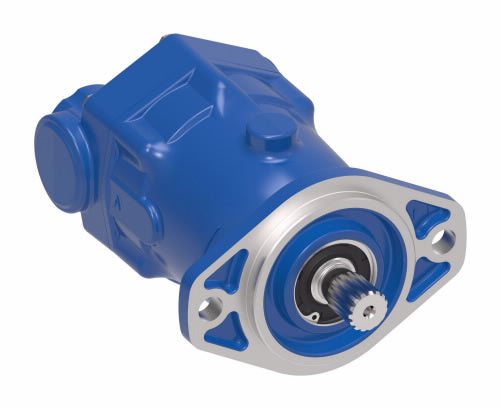

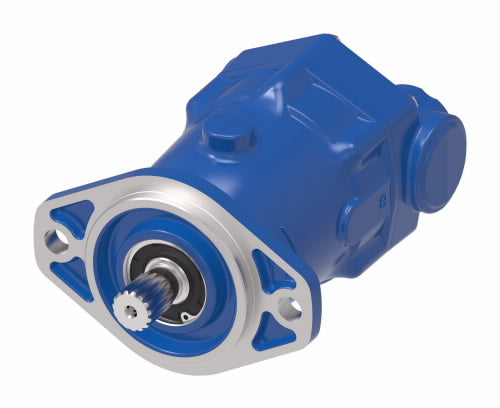

74328-DAB | Eaton Fixed Displacement Piston Motor
- Regular price
- $1,898.00
- Sale price
- $1,898.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 74328-DAB
Description
The Eaton 74328-DAB is a fixed-displacement axial piston hydraulic motor from Eaton’s 74328 series (Danfoss-designed), tailored for medium-pressure, high-speed applications in industrial and mobile environments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Eaton |
| Category |
Hydraulics
|
| Part Number | 74328-DAB |
| Subcategory | Hydraulic Motors |
| Motor Type |
Fixed Displacement, Medium Pressure |
| Displacement |
3.00 in³/r |
| Main Ports |
1-1/16–12 UN-2B SAE O-Ring Ports - Rear |
| Mount |
2-Bolt Flange (SAE-B) |
| Shaft Type |
13 Tooth 16/32 Spline - 1.62 in Shaft Ext. |
| Drain Port |
3/4–16 UNF-2B SAE O-Ring Port - Upper Rear |
| Working Pressure |
4568 psi |
| Maximum Operating Pressure |
5004 psi |
| Torque | 2198 in |
| Maximum Flow Rate | 41.3 gpm |
| Finish | Primer Per Spec 209-13A |
| Max Operating Temperature | 225 °F |
| Max Rpm | 3000 rpm |
| Series | 743 |
| Height | 136.7 mm |
| Length | 253.3 mm |
| Width | 174.8 mm |
| Pressure | 315 Bar |
| Max. Displacement | 49.2 cc/rev. |
| Material | Cast Iron |
| Weight | 10.00 lbs |
Information About 74328-DAB
The 74328-DAB is part of Eaton’s 743XX series of fixed-displacement axial piston motors, designed for medium-duty hydraulic applications in industrial and mobile equipment. With a displacement of approximately 49 cm³/rev (3.00 in³/rev), it delivers reliable torque output, bi-directional rotation, and high-speed performance up to 3000 rpm. Its compact SAE-B flange and spline shaft design support easy integration into a wide range of systems requiring consistent hydraulic power. Built for durability, it operates under pressures up to 315 bar (4568 psi) and is field-serviceable for reduced maintenance downtime.
Key Features:
- Fixed Displacement Design: Provides predictable, constant torque and flow delivery for stable hydraulic operation.
- Compact Power: ~49 cm³/rev displacement in a lightweight housing, ideal for confined installations or mobile use.
- High Pressure Rating: Supports up to 315 bar (4568 psi), suitable for continuous and demanding duty cycles.
- Speed Capability: Operates efficiently at speeds up to 3000 rpm for fan drives, conveyors, and hydraulic systems.
- Bi-directional Rotation: Supports flexible circuit configurations for both forward and reverse flow applications.
- SAE-B Mounting: Standard two-bolt flange mount and 13-tooth spline shaft for quick, secure installation.
- Rear Porting: Includes SAE O-ring ports for work and case drain connections, simplifying plumbing and reducing leak risk.
- Durable Construction: Precision engineering ensures long life under variable load and temperature conditions.
- Serviceable Design: Allows for convenient maintenance and field replacement to minimize downtime.
- Versatile Applications: Used in agriculture, construction, automation, and industrial hydraulic systems.
The Eaton 74328-DAB is a dependable choice for compact hydraulic motor needs where fixed torque, space efficiency, and rugged design are essential.
