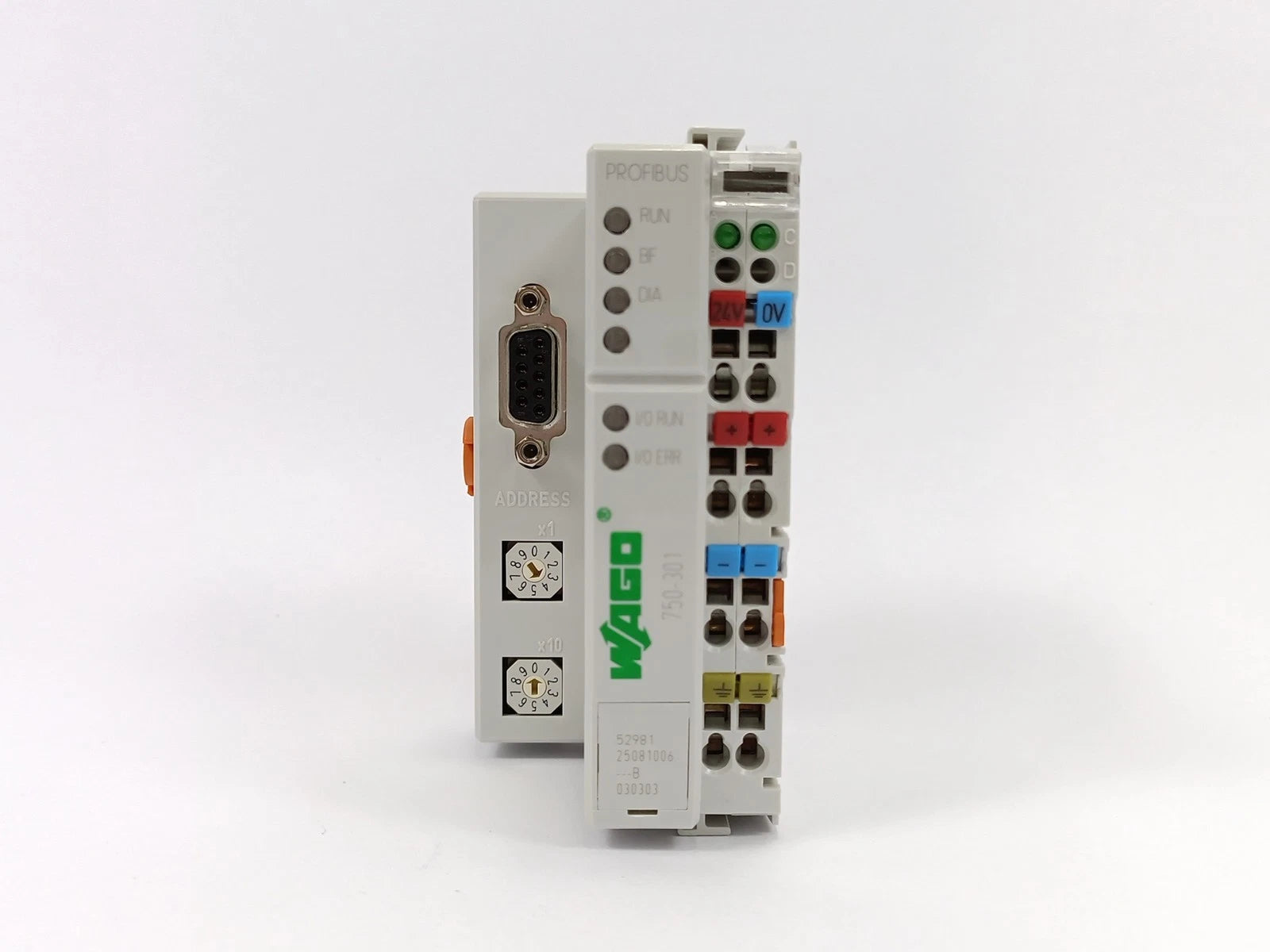

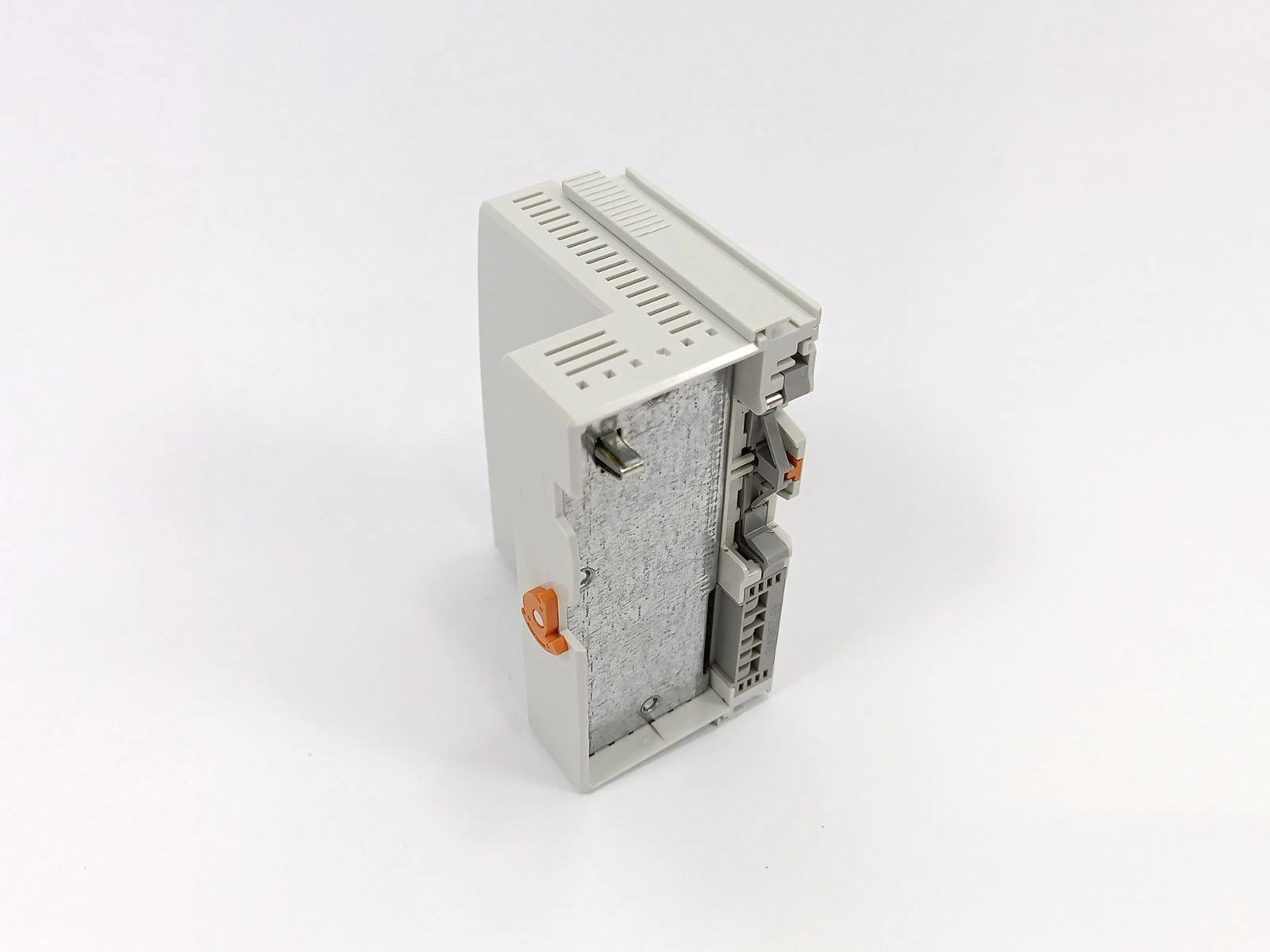

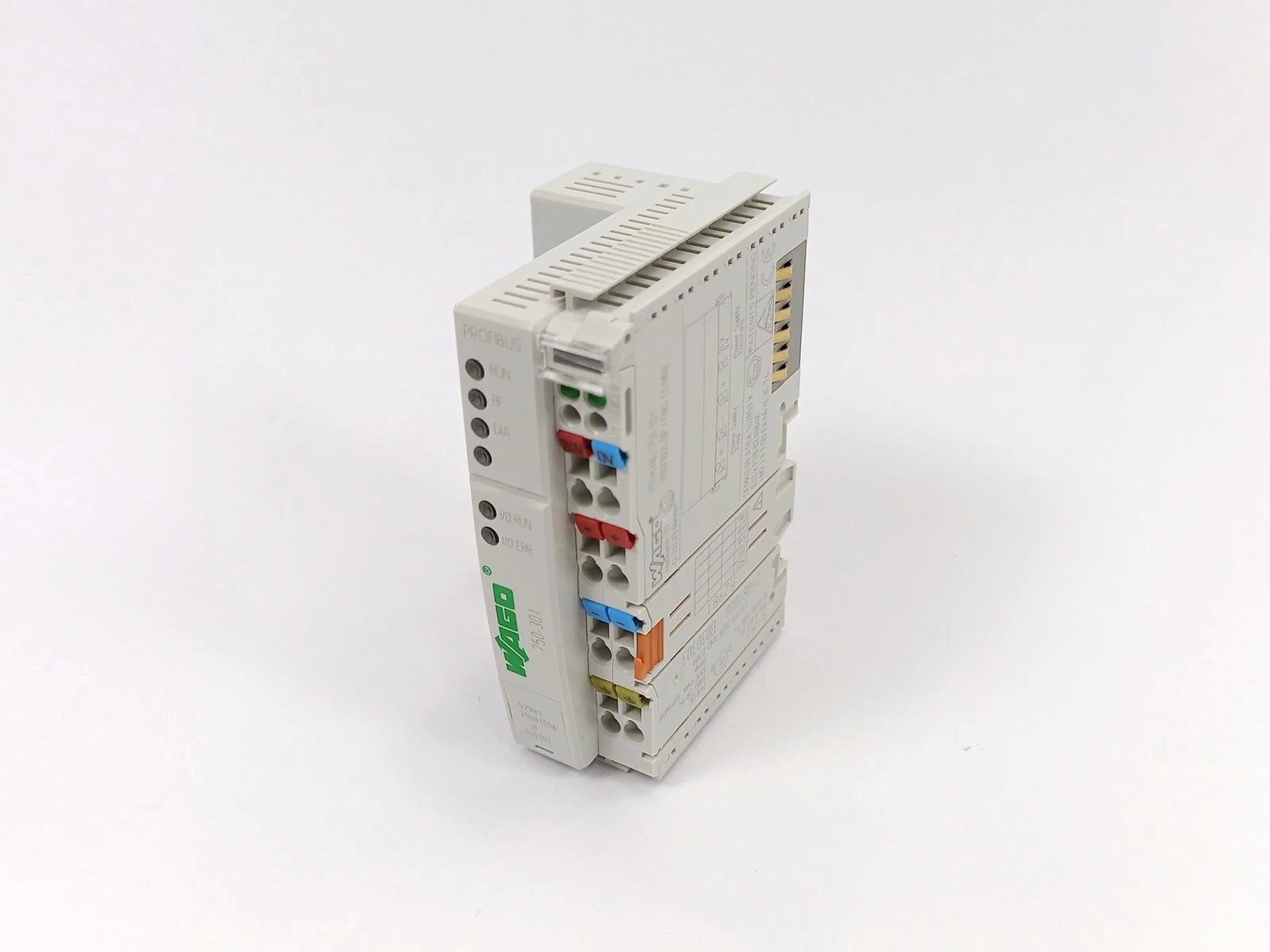

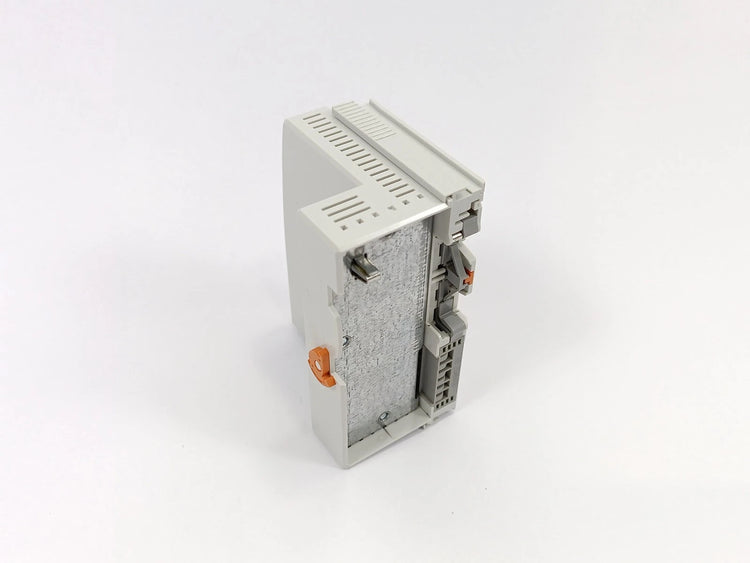

750-301 | Wago PROFIBUS DP Fieldbus Coupler for WAGO I/O System 750
- Regular price
- $882.00
- Sale price
- $882.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 750-301
Description
The Wago 750-301 is a PROFIBUS DP fieldbus coupler designed to connect the WAGO I/O System as a slave device to PROFIBUS automation networks. It enables structured data exchange between distributed I/O modules and a PROFIBUS master system. This coupler is intended for industrial applications requiring reliable fieldbus communication and modular I/O scalability.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Wago |
| Category | Industrial Automation |
| Part Number | 750-301 |
| Subcategory | Fieldbus Couplers |
| Fieldbus Protocol | PROFIBUS DP / FMS |
| Transmission Rate | Up to 1.5 Mbit/s |
| Max. I/O Points | Up to 6000 (depending on master) |
| Max. Modules per Node | 64 |
| Input Process Image | Max. 244 bytes |
| Output Process Image | Max. 244 bytes |
| System Supply Voltage | 24 VDC (-15 … +20 %) |
| Current Consumption (5 V System) | 350 mA |
| Electrical Isolation | 500 V system/field |
| Degree of Protection | IP20 |
| Mounting | DIN-35 rail |
| Operating Temperature | 0 to +55 °C |
| Weight | Approx. 195 g |
Information About 750-301
The 750-301 is part of the WAGO I/O System 750 fieldbus coupler family and is engineered for PROFIBUS DP/FMS communication. It automatically detects all connected I/O modules and creates a local process image that supports analog, digital, and specialty modules. Analog and specialty data are transferred word- or byte-based, while digital signals are packed bit by bit and aligned automatically within the process image. Designed for DIN-rail mounting, the coupler integrates power distribution, electrical isolation, and standardized PROFIBUS connectivity for industrial control environments.
Key Features:
- PROFIBUS DP Interface: Connects the WAGO I/O System as a slave device to PROFIBUS networks.
- Automatic Process Image Creation: Detects installed modules and builds a structured local process image.
- Mixed I/O Data Handling: Supports analog, digital, and specialty modules within a single node.
- Flexible Data Mapping: Transfers analog data as words or bytes and digital data bit by bit.
- High I/O Capacity: Supports up to 6000 I/O points depending on the PROFIBUS master.
- Reliable Serial Communication: Operates at baud rates up to 1.5 Mbit/s.
- Integrated Power Distribution: Supplies system and field power via internal jumper contacts.
- Electrical Isolation: Provides 500 V isolation between system and field supplies.
- DIN-Rail Mount Design: Compact housing optimized for control cabinet installation.
The 750-301 delivers the reliability and precision required for PROFIBUS-based distributed I/O and industrial automation systems.
