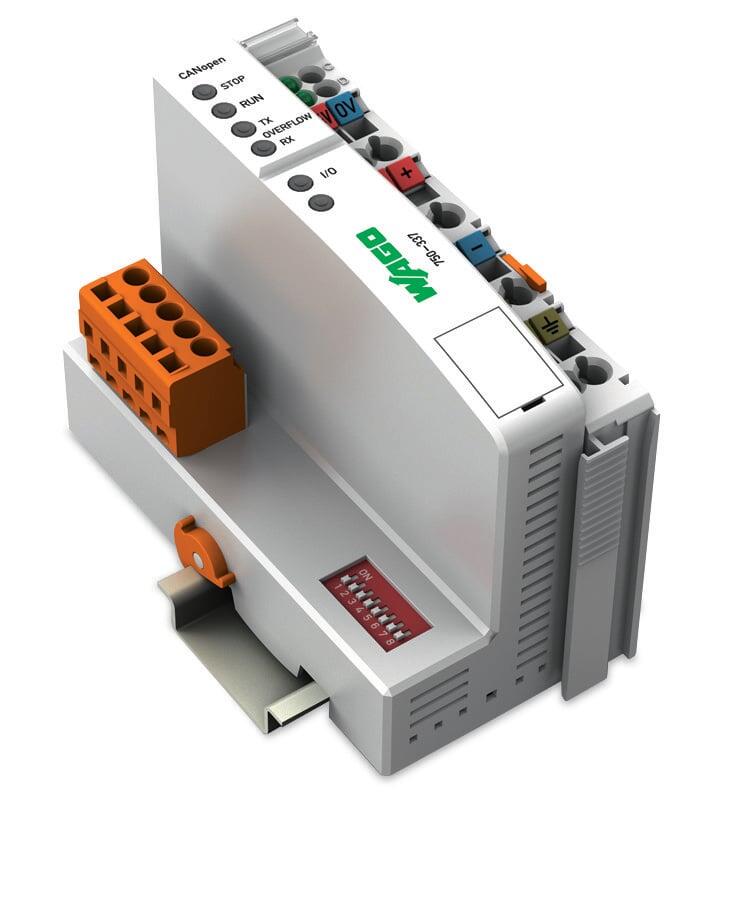

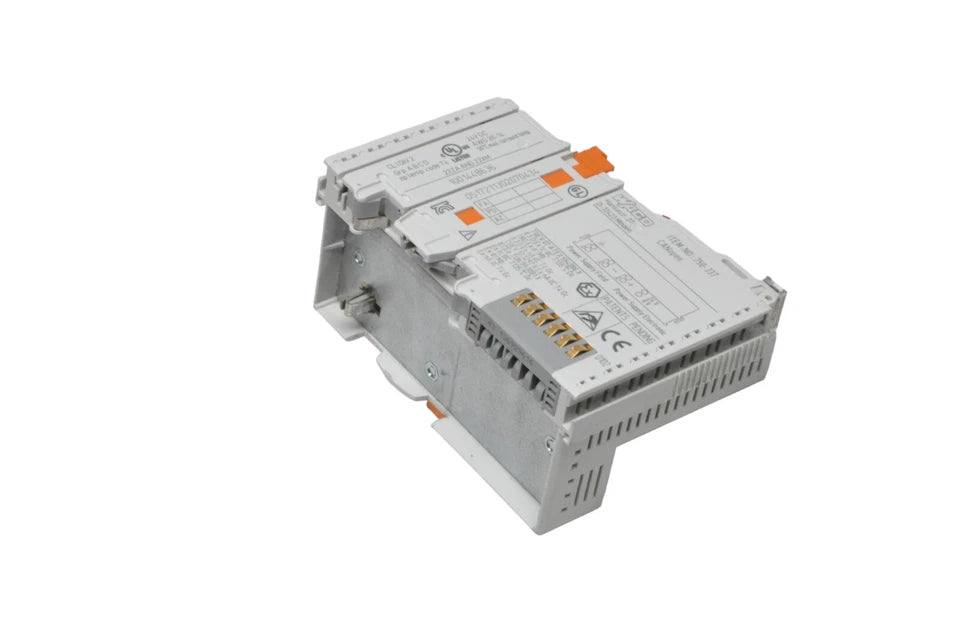

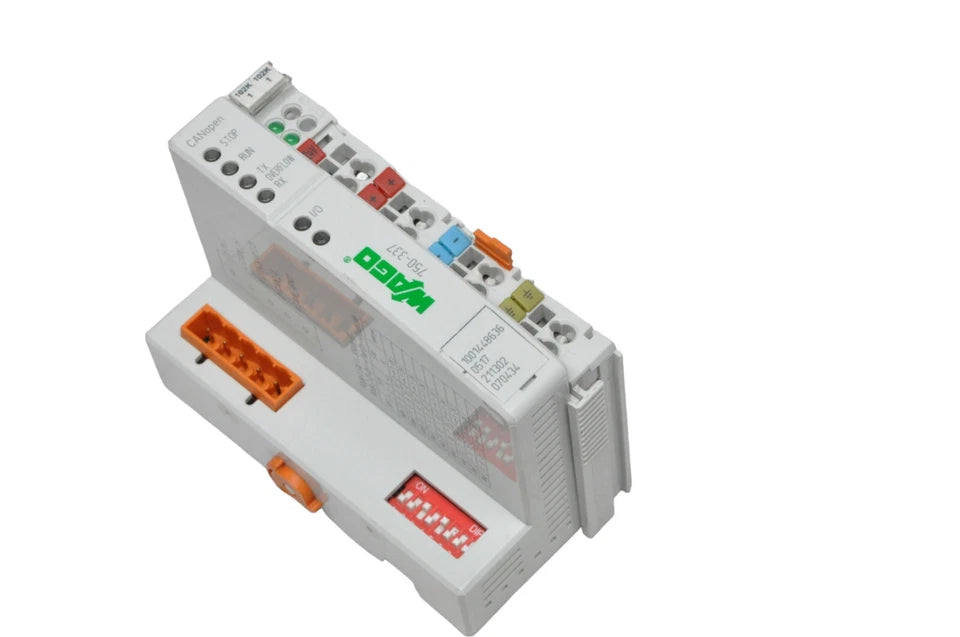

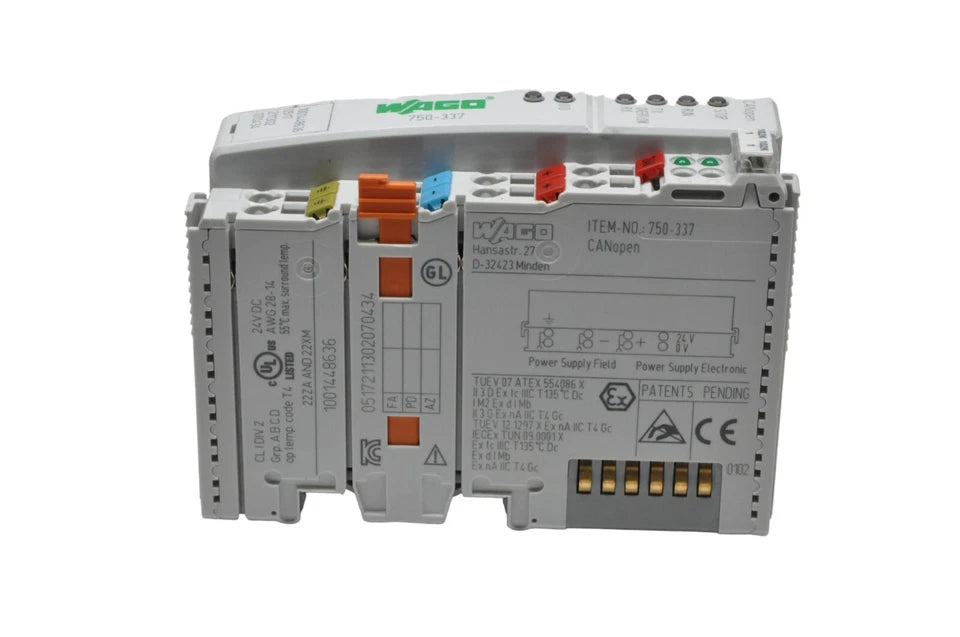

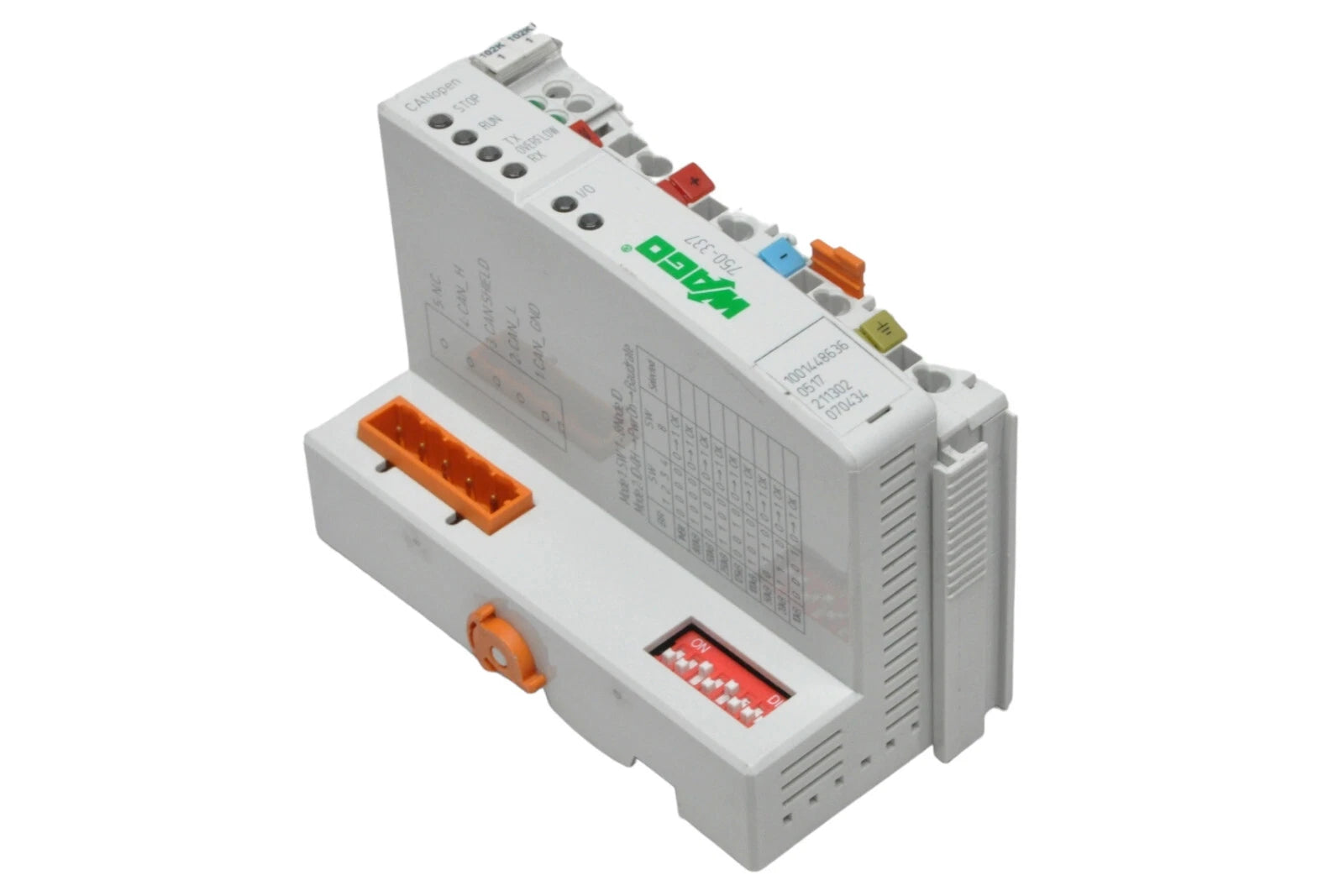

750-337 | Wago Fieldbus Coupler CANopen
- Regular price
- $242.00
- Sale price
- $242.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 750-337
Description
The Wago 750-337 Fieldbus Coupler is a CANopen-compatible module designed for seamless communication between field devices and automation systems. It supports up to 110 fieldbus nodes, offers baud rates from 10 kBd to 1 MBd, and operates on a 24V DC power supply.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Wago |
| Category | PLCs and Accessories |
| Part Number | 750-337 |
| Subcategory | PLC Expansion Modules |
|
Series |
750 Series |
|
Baud rate |
10 kBd … 1 MBd |
|
Color |
Light gray |
|
Communication |
CANopen |
|
Connection technology |
1 x Male connector; 4-pole, 2 x CAGE CLAMP®, 6 x CAGE CLAMP®, CANopen: 1 x Male connector; 5-pole |
|
Country of origin |
DE |
|
Depth |
71.1 mm / 2.799 inch |
|
Height |
100 mm / 3.937 inch |
|
Supply voltage (system) |
24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP® connection) |
|
Current consumption (5 V system supply) |
350mA |
|
Total current (system supply) |
1,650mA |
|
Input current (typ.) at nominal load (24 V) |
500mA |
Information About 750-337
The Wago 750-337 Fieldbus Coupler is a versatile CANopen fieldbus interface that enables efficient communication between controllers and decentralized I/O systems. It features a 5-pole male fieldbus connector and a 4-pole male device connector, ensuring flexible connectivity. The system power supply operates at 24V DC with a total system current of 1,650mA, while the input current at nominal load is 500mA. With pluggable connectors using CAGE CLAMP® technology, the module simplifies installation and maintenance.
Key Features:
- Supports up to 110 fieldbus nodes for extensive network integration.
- Baud rate range: 10 kBd to 1 MBd for flexible communication speed.
- Power supply efficiency: 87% at 24V nominal load, ensuring energy-efficient operation.
- System voltage: 24V DC (-25% to +30%), suitable for industrial applications.
- Current consumption: 350mA (5V system supply), 1,650mA total system supply.
- Field power supply: 24V DC (-25% to +30%) via power jumper contacts.
- DIN 35 rail mounting for easy integration into control panels.
- IP20 protection rating for industrial environments.
With its robust design, flexible connectivity, and high efficiency, the Wago 750-337 Fieldbus Coupler is an ideal solution for decentralized automation and CANopen-based industrial applications.
