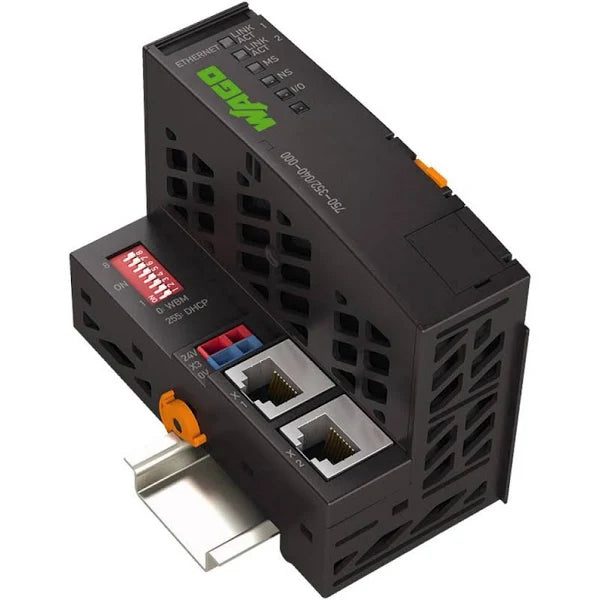

750-352 | Wago Fieldbus Coupler ETHERNET; 3rd Generation; Extreme
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 750-352
Description
The Wago 750-352 is a 3rd Generation ETHERNET Fieldbus Coupler, designed for extreme conditions. Ensuring robust connectivity, it excels in industrial automation for reliable and efficient data exchange in challenging environments.
Technical Specifications
| Brand | Wago |
| Communication | EtherNet/IPTM || Modbus (TCP, UDP) || ETHERNET |
| Part Number | 750-352 |
| ETHERNET protocols | HTTP || BootP || DHCP || DNS || FTP || SNMP |
| Baud rate | 10/100 Mbit/s |
| Transmission medium | Twisted Pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length |
| Transmission performance | Class D per EN 50173 |
| Number of modules per node (max.) | 250 |
| Number of modules without a bus extension (max.) | 64 |
| Input and output (fieldbus) process image (max.) | 1020 Worte/1020 Worte |
| Supply voltage (system) | 24 VDC (-25 … +30 %); via pluggable connector |
| Power consumption (5 V system supply) | 450 mA |
| Total current (system supply) | 700 mA |
| Input current (typ.) at nominal load (24 V) | 280 mA |
| Power supply efficiency (typ.) at nominal load (24 V) | 90 % |
| Isolation | 500 V system/field |
| Indicators | LED (LINK/ACT) green: Network connection via ports 1 … 2; LED (MS, NS) red/green: Status of node, network; LED (I/O) red/green/orange: Status of local data bus |
Information About 750-352
The 750-352 ETHERNET Fieldbus Coupler connects ETHERNET to the modular WAGO I/O System.
The fieldbus coupler detects all connected I/O modules and creates a local process image. This process image may include a mixed arrangement of analog (word-by-word data transfer) and digital (bit-by-bit data transfer) modules.
Two ETHERNET interfaces and an integrated switch allow the fieldbus to be wired in a line topology, eliminating the need for additional network devices, such as switches or hubs. Both interfaces support autonegotiation and Auto-MDI(X).
The DIP switch configures the last byte of the IP address and may be used for IP address assignment (DHCP, BootP, static).
The coupler is designed for fieldbus communication in both EtherNet/IP and MODBUS networks. It also supports a wide variety of standard ETHERNET protocols (e.g., HTTP, BootP, DHCP, DNS, SNMP, FTP). An integrated Webserver provides user configuration options, while displaying the coupler's status information.
The system supply is provided directly by the coupler. The field supply is provided via a separate supply module.
The device is ideal for operation in extreme environments thanks to:
An extended temperature range
Greater immunity to impulse voltages and electromagnetic interference
Higher vibration and shock resistance
Manufacturer information
Wago is a renowned manufacturer specializing in innovative electrical interconnection and automation solutions. With a global presence, Wago excels in providing reliable and cutting-edge products for industrial, building, and railway applications, emphasizing quality and sustainability.
