750-363 | Wago EtherNet/IP Fieldbus Coupler, 64 I/O, DIN Rail Mount
- Regular price
- $587.00
- Sale price
- $587.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 750-363
Description

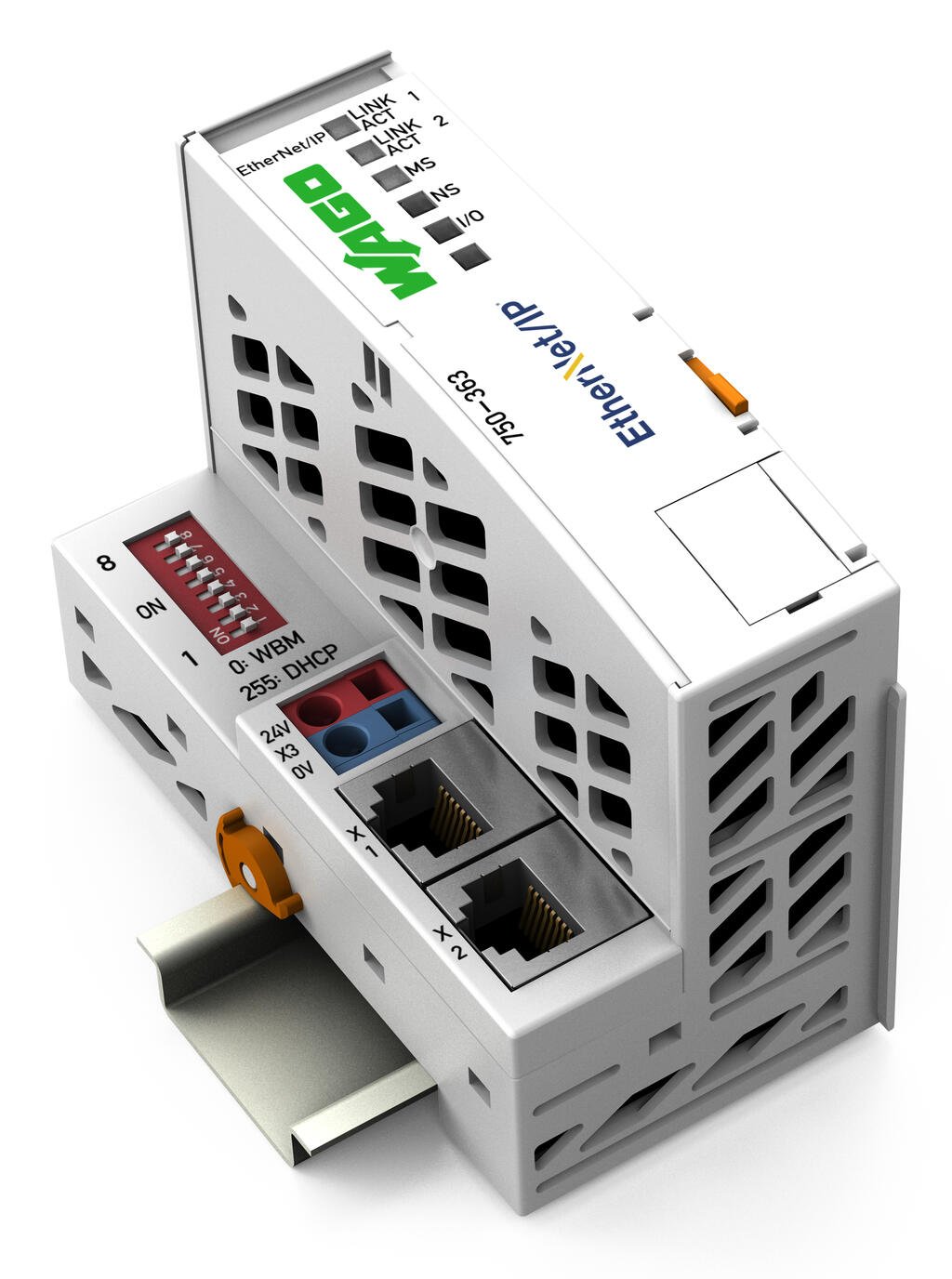

The WAGO 750-363 is a compact EtherNet/IP fieldbus coupler for modular I/O systems. It enables communication between WAGO I/O modules and EtherNet/IP networks, supporting 10/100 Mbps transmission over twisted-pair cabling. Designed for DIN-rail mounting, it simplifies fieldbus integration through built-in switch functionality and protocol support.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Wago |
| Category |
PLCs / Machine Control
|
| Part Number | 750-363 |
| Subcategory | Fieldbus Couplers |
| Communication Protocol | EtherNet/IP |
| Baud Rate | 10/100 Mbps |
| Max I/O Modules (without extension) | 64 |
| Max I/O Modules (with extension) | 250 |
| System Supply Voltage | 24 VDC (-25% to +30%) |
| System Current Consumption | Max 700 mA |
| Field Supply | Via separate module |
| Mounting Type | DIN 35 mm rail |
| Connection Ports | 2 × RJ-45 (Ethernet), 2 × CAGE CLAMP® |
| Web Configuration | Yes (integrated webserver) |
| Housing Material | Polycarbonate / PA 6.6 |
| Protection Class | IP20 |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | –25 °C to +85 °C |
| Relative Humidity | 95% (non-condensing) |
| EMC Compliance | EN 61000-6-2 / EN 61000-6-3 |
| Dimensions (W × H × D) | 49.5 × 96.8 × 71.9 mm |
| Weight | 104.1 g |
Information About 750-363

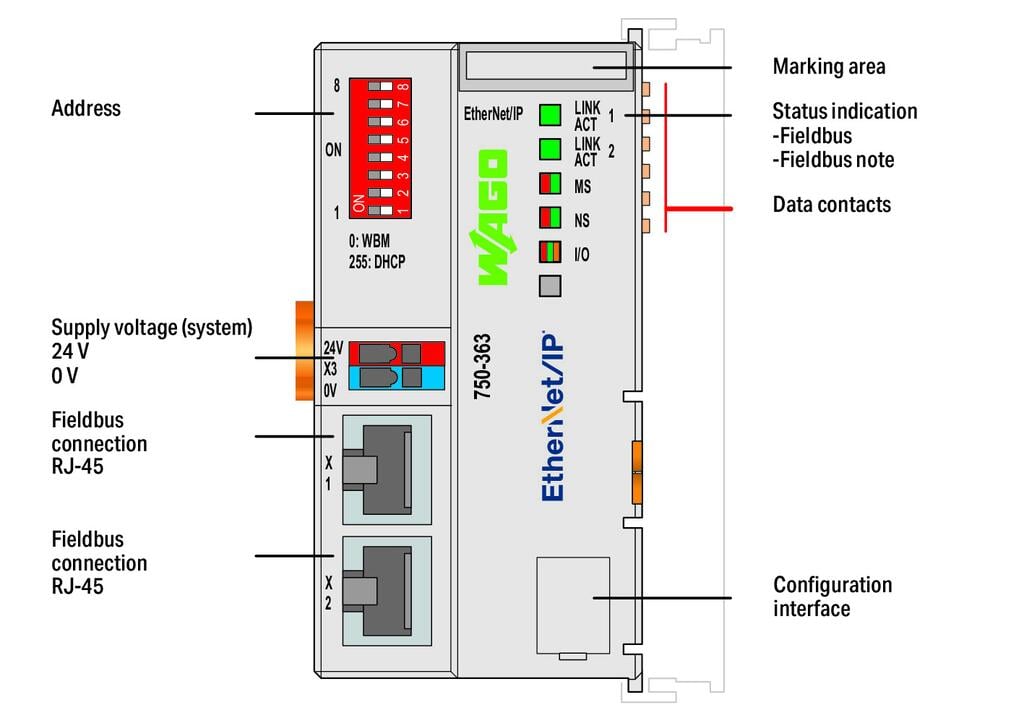

The 750-363 is a fieldbus coupler from WAGO that supports EtherNet/IP communication with up to 64 connected I/O modules. It features dual RJ-45 ports with an integrated switch to enable daisy-chaining in line topologies, reducing the need for external switches. The unit includes configuration options via DIP switches, web-based interface, or WAGO-I/O-CHECK software. It complies with multiple Ethernet standards (HTTP(S), DHCP, SNMP, FTP) and supports a maximum process image of 1020 input/output words.
Key Features:
- EtherNet/IP Communication: Supports 10/100 Mbps full-duplex communication with Auto-MDI(X) support.
- Integrated Switch: Dual RJ-45 interfaces eliminate the need for external hubs or switches.
- Modular Scalability: Supports up to 64 I/O modules without extension; 250 with extension.
- Web-Based Management: Integrated web server for status display and configuration.
- Wide Protocol Support: Compatible with DHCP, SNMP, FTP(S), HTTP(S), DNS, and more.
- DIN Rail Mount: Standard 35 mm DIN-rail mounting for easy installation.

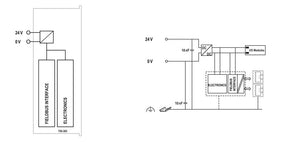

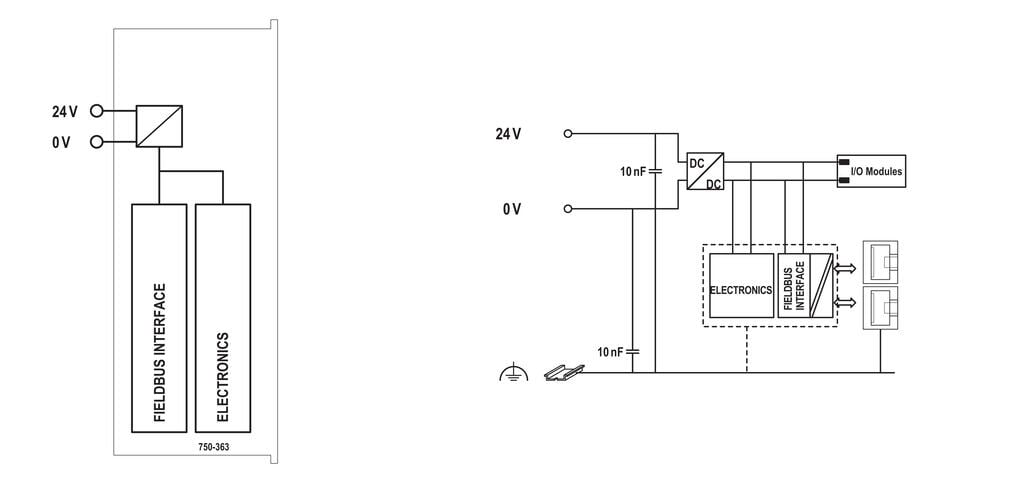

- Power Supply: 24 VDC input; provides 5 V system power with up to 700 mA output.
The 750-363 delivers the flexibility and reliability needed for scalable EtherNet/IP fieldbus installations.
