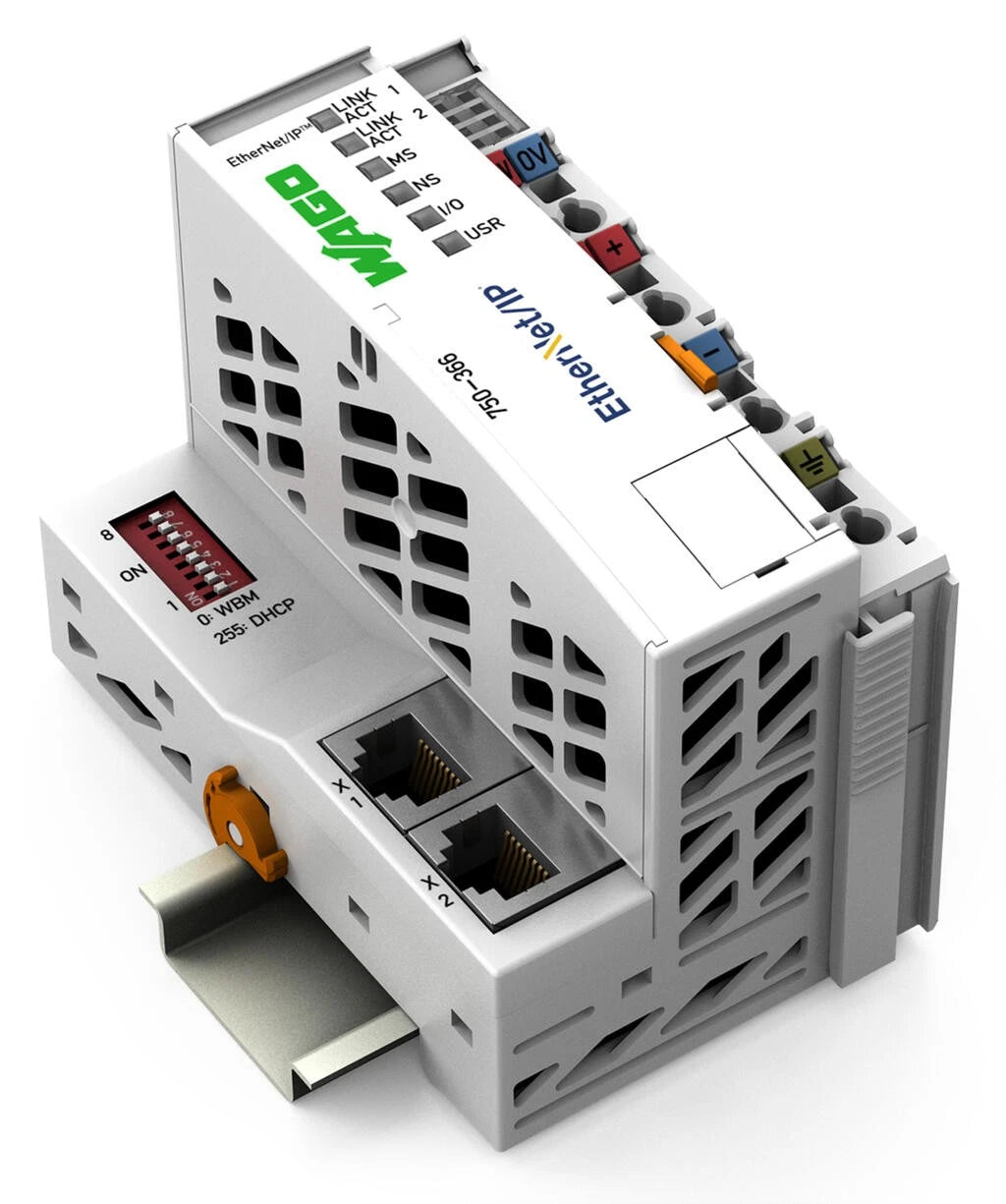

750-366 | Wago EtherNet/IP Fieldbus Coupler with DLR Support for WAGO I/O System
- Regular price
- $1,082.00
- Sale price
- $1,082.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 750-366
Description
The Wago 750-366 is a fourth-generation EtherNet/IP fieldbus coupler designed to integrate the WAGO I/O System into EtherNet/IP industrial networks. It automatically configures connected I/O modules and manages cyclic data exchange for analog, digital, and specialty signals. The coupler supports Device Level Ring (DLR) operation, ensuring reliable network communication in demanding automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Wago |
| Category | Industrial Automation |
| Part Number | 750-366 |
| Subcategory | Fieldbus Couplers |
| Fieldbus Protocol | EtherNet/IP |
| Ethernet Interfaces | 2 × RJ-45 |
| Transmission Rate | 10/100 Mbit/s |
| Max. Modules per Node | 250 |
| Max. I/O Process Image | 1020 words input / 1020 words output |
| System Supply Voltage | 24 VDC (-25 … +30 %) |
| Field Supply Voltage | 24 VDC (-25 … +30 %) |
| Current Consumption (5 V System) | 300 mA |
| Degree of Protection | IP20 |
| Mounting | DIN-35 rail |
| Operating Temperature | 0 to +55 °C |
| Weight | 147.3 g |
Information About 750-366
The 750-366 is part of the WAGO I/O System 750 fieldbus coupler family and is engineered specifically for EtherNet/IP communication. It creates a local process image by automatically detecting connected I/O modules, supporting mixed signal configurations within a single node. The coupler supports DLR as a beacon-based ring node, allowing use in both ring and line network topologies with enhanced fault tolerance. Integrated Ethernet services and a built-in web server provide configuration access, diagnostics, and real-time status monitoring.
Key Features:
- EtherNet/IP Communication: Designed for deterministic data exchange in EtherNet/IP automation networks.
- DLR Ring Support: Operates as a beacon-based ring node for Device Level Ring topologies.
- Automatic I/O Configuration: Detects installed modules and builds a local process image automatically.
- Mixed Signal Handling: Supports analog, digital, and specialty I/O modules simultaneously.
- Dual Ethernet Interfaces: Two RJ-45 ports enable line or ring topology without external switches.
- Quality of Service Support: Implements QoS for prioritized data traffic per EtherNet/IP specifications.
- Address Conflict Detection: Supports ACD for reliable IP address management.
- Integrated Web Server: Provides browser-based configuration and device status information.
- Robust Electrical Isolation: 500 V isolation between system and field supply enhances operational safety.
The 750-366 delivers the reliability and precision required for EtherNet/IP-based distributed I/O and industrial network architectures.
