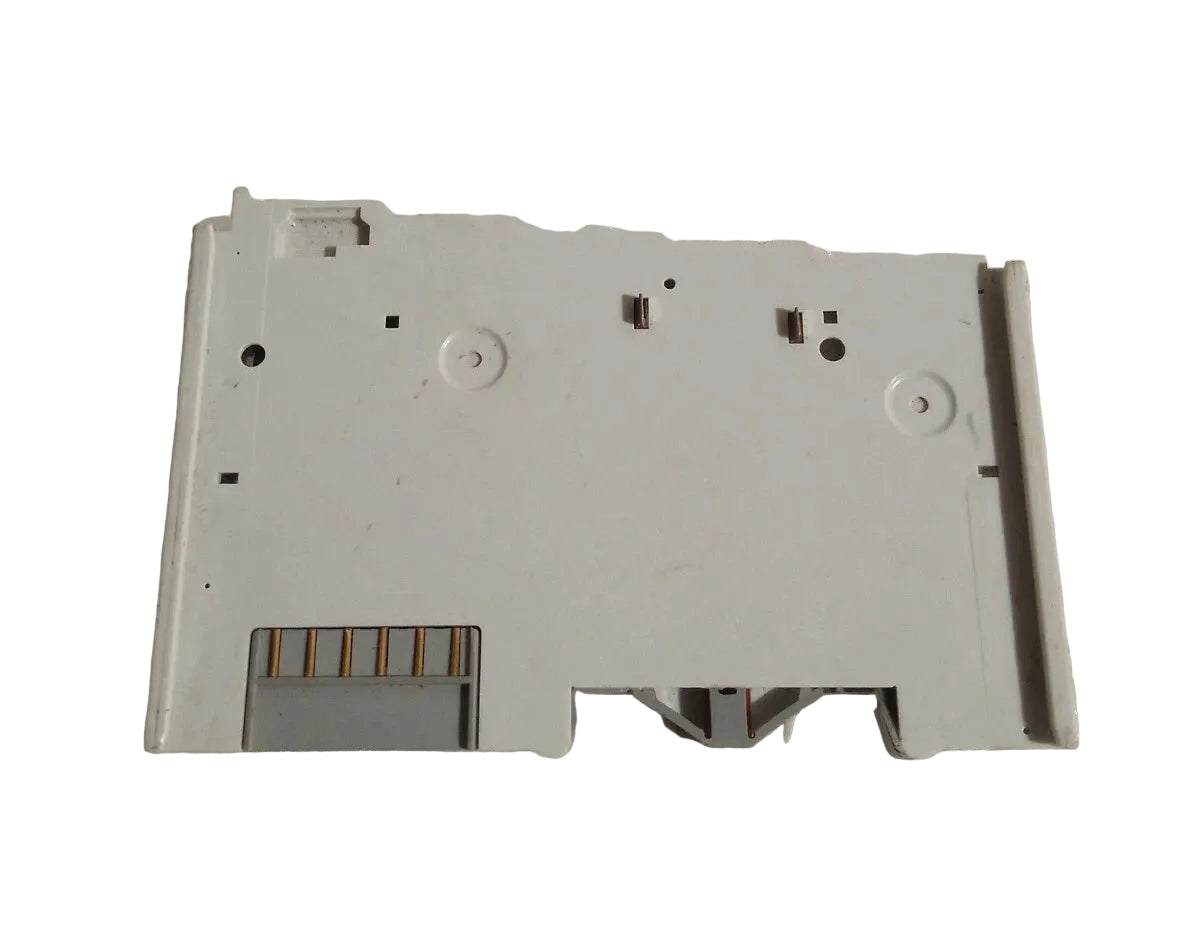

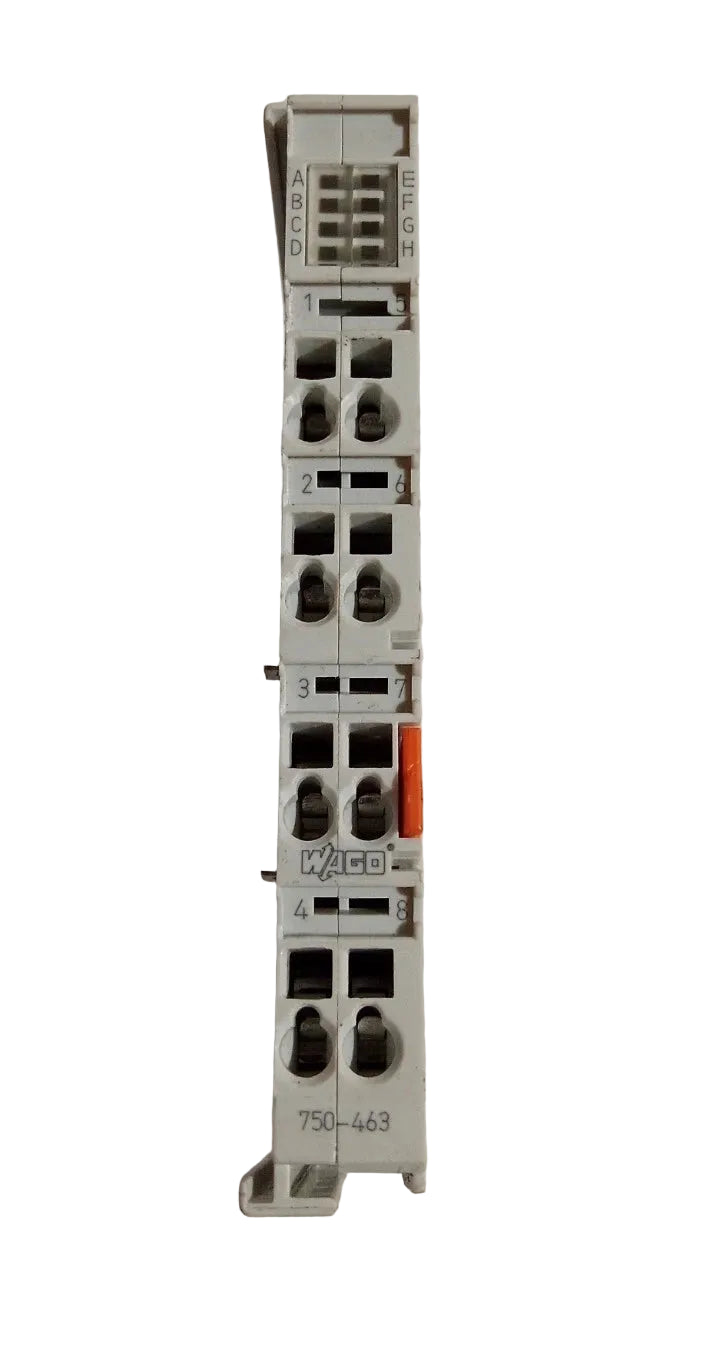

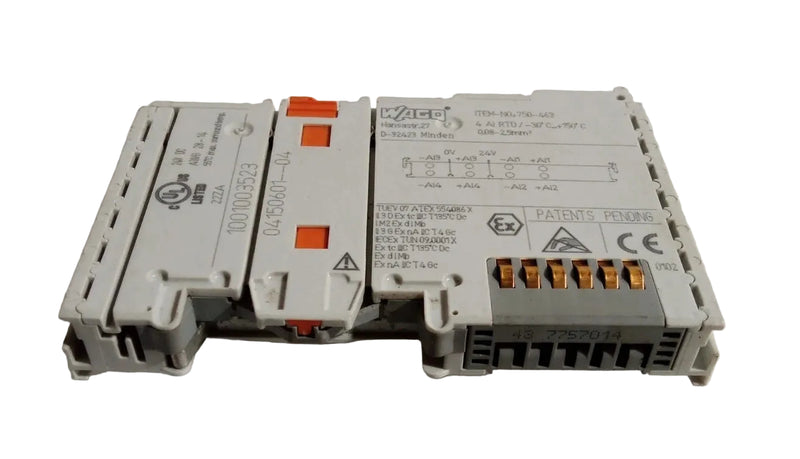

750-463 | WAGO 4-Channel RTD Analog Input Module for Pt1000 Sensors
- Regular price
- $792.00
- Sale price
- $792.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 750-463
Description
The WAGO 750-463 is a 4-channel analog input module designed for direct connection of Pt1000 and other configurable RTD resistance temperature sensors. It provides high-accuracy temperature measurement with automatic linearization across a defined operating range. This module is intended for precise temperature monitoring in modular WAGO I/O automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | WAGO |
| Category | Industrial I/O Modules |
| Part Number | 750-463 |
| Subcategory | Analog Input Modules |
| Number of Analog Inputs | 4 |
| Channel Configuration | 4-channel, 2-wire |
| Signal Type | Resistance measurement |
| Supported Sensor Types | Pt1000; configurable Ni1000, KTY 81 |
| Temperature Range | −30 … +150 °C |
| Resolution | 0.1 °C |
| Measurement Error | ≤ 0.5 K at 25 °C |
| Measuring Current | ≤ 350 µA (typ.) |
| Data Width | 4 × 16-bit data; 4 × 8-bit control/status |
| Measurement Repetition Rate | 1.1 s (standard) |
| Response Time | Max. 4 s |
| System Supply Voltage | 5 VDC via data contacts |
| Field Supply Voltage | 24 VDC (−25 … +30 %) |
| Current Consumption | 50 mA (5 V system supply) |
| Isolation | 500 V system/field |
| Ingress Protection | IP20 |
| Mounting Type | DIN-35 rail |
| Housing Material | Polycarbonate, Polyamide 6.6 |
| Dimensions (W × H × D) | 12 × 100 × 67.8 mm |
| Weight | 49.7 g |
Information About 750-463
The 750-463 is part of the WAGO 750 Series I/O System, engineered for flexible and scalable industrial automation applications. It operates exclusively as a 4-channel, 2-wire analog input module and supports resistance-based temperature sensors such as Pt1000, Ni1000, and KTY 81. The module automatically linearizes sensor signals and provides clear LED-based diagnostics for sensor faults, including short circuits and line breaks. Configuration is supported through WAGO-I/O-CHECK, GSD files, and engineering tools such as CODESYS and e!COCKPIT, allowing seamless integration into control systems.
Key Features:
- Four-Channel Analog Input Design: Supports four independent resistance-based temperature measurement channels
- RTD Sensor Compatibility: Designed for Pt1000 sensors with configurable support for Ni1000 and KTY 81
- Automatic Signal Linearization: Internally linearizes temperature values across the full operating range
- High Measurement Accuracy: Provides ≤ 0.5 K measurement error at 25 °C within the specified range
- Fine Temperature Resolution: Delivers 0.1 °C resolution over the entire temperature span
- Integrated Diagnostics LEDs: Green LEDs indicate normal operation, red LEDs signal sensor errors
- Configurable via Software Tools: Supports WAGO-I/O-CHECK, CODESYS libraries, and e!COCKPIT
- Electrical Isolation: 500 V isolation between system and field sides enhances reliability
- Compact DIN-Rail Form Factor: Slim 12 mm housing optimizes space in control cabinets
- Industrial Environmental Compliance: Designed to meet vibration, shock, and EMC standards
The 750-463 delivers the reliability and precision required for accurate industrial temperature measurement using RTD sensors.
