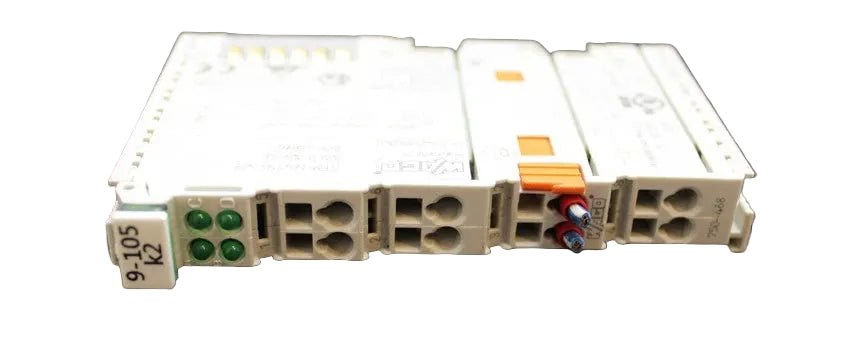

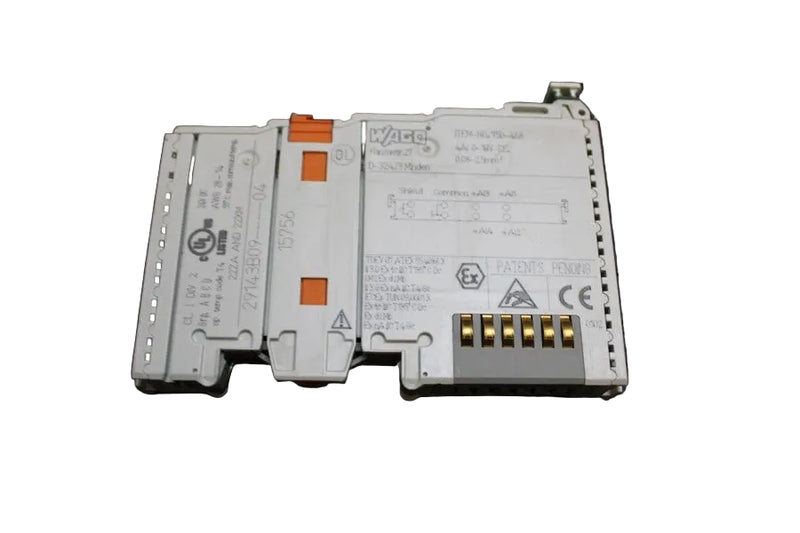

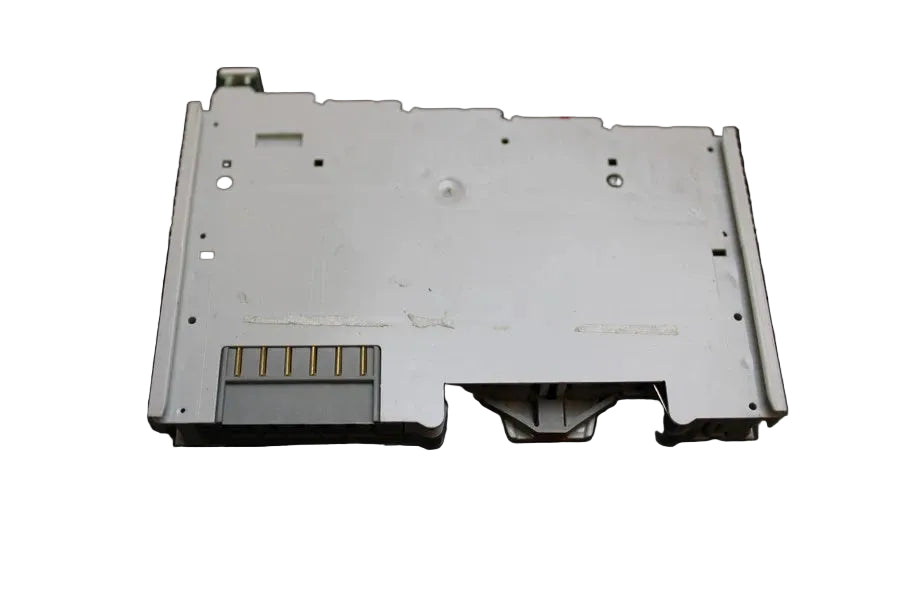

750-468 | WAGO 4-Channel 0–10 V Analog Input Module
- Regular price
- $219.00
- Sale price
- $219.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 750-468
Description
The WAGO 750-468 is a 4-channel analog input module designed for processing standard 0–10 VDC voltage signals in industrial automation systems. It provides electrically isolated signal acquisition with reliable performance and fast conversion times. This module is optimized for precise voltage measurement within WAGO 750 Series I/O systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | WAGO |
| Category | Industrial I/O Modules |
| Part Number | 750-468 |
| Subcategory | Analog Input Modules |
| Number of Analog Inputs | 4 |
| Signal Type | Voltage |
| Input Voltage Range | 0 … 10 VDC |
| Maximum Input Voltage | 35 V |
| Signal Characteristics | Single-ended |
| Resolution | 12-bit |
| Data Width | 4 × 16-bit data; 4 × 8-bit control/status |
| Internal Resistance | 133 kΩ |
| Conversion Time | ≤ 4 ms (typ.) |
| Measurement Error | ≤ ±0.2% of upper-range value |
| Temperature Error | ≤ ±0.01%/K |
| System Supply Voltage | 5 VDC via data contacts |
| Current Consumption | 60 mA (5 V system supply) |
| Isolation | 500 V system/field |
| Ingress Protection | IP20 |
| Mounting Type | DIN-35 rail |
| Housing Material | Polycarbonate, Polyamide 6.6 |
| Dimensions (W × H × D) | 12 × 100 × 69.8 mm |
| Weight | 50 g |
Information About 750-468
The 750-468 is part of the WAGO 750 Series modular I/O platform, offering scalable and flexible integration into distributed control systems. It supports four single-ended voltage input channels with a common ground reference, making it suitable for standard analog field devices. The module features electrical isolation between system and field levels, enhancing noise immunity and system safety. Its compact DIN-rail design and internal system-powered operation make it ideal for space-constrained control cabinets and industrial environments.
Key Features:
- Four-Channel Analog Input Module: Supports four independent voltage input channels
- Standard Voltage Signal Support: Designed for 0–10 VDC analog signals
- Single-Ended Input Design: All channels share a common ground reference
- Electrical Signal Isolation: 500 V isolation between system and field sides
- High Measurement Resolution: 12-bit resolution ensures accurate signal conversion
- Fast Conversion Performance: Typical conversion time of 4 ms per channel
- Integrated Status Indicators: Green LEDs indicate normal operation for each input
- Compact DIN-Rail Housing: Slim 12 mm width optimizes cabinet space usage
- Internal System Powering: Powered directly via the I/O system data contacts
- Robust Industrial Design: Built to withstand vibration, shock, and EMC conditions
The 750-468 delivers the reliability and precision required for accurate voltage signal acquisition in industrial automation applications.
