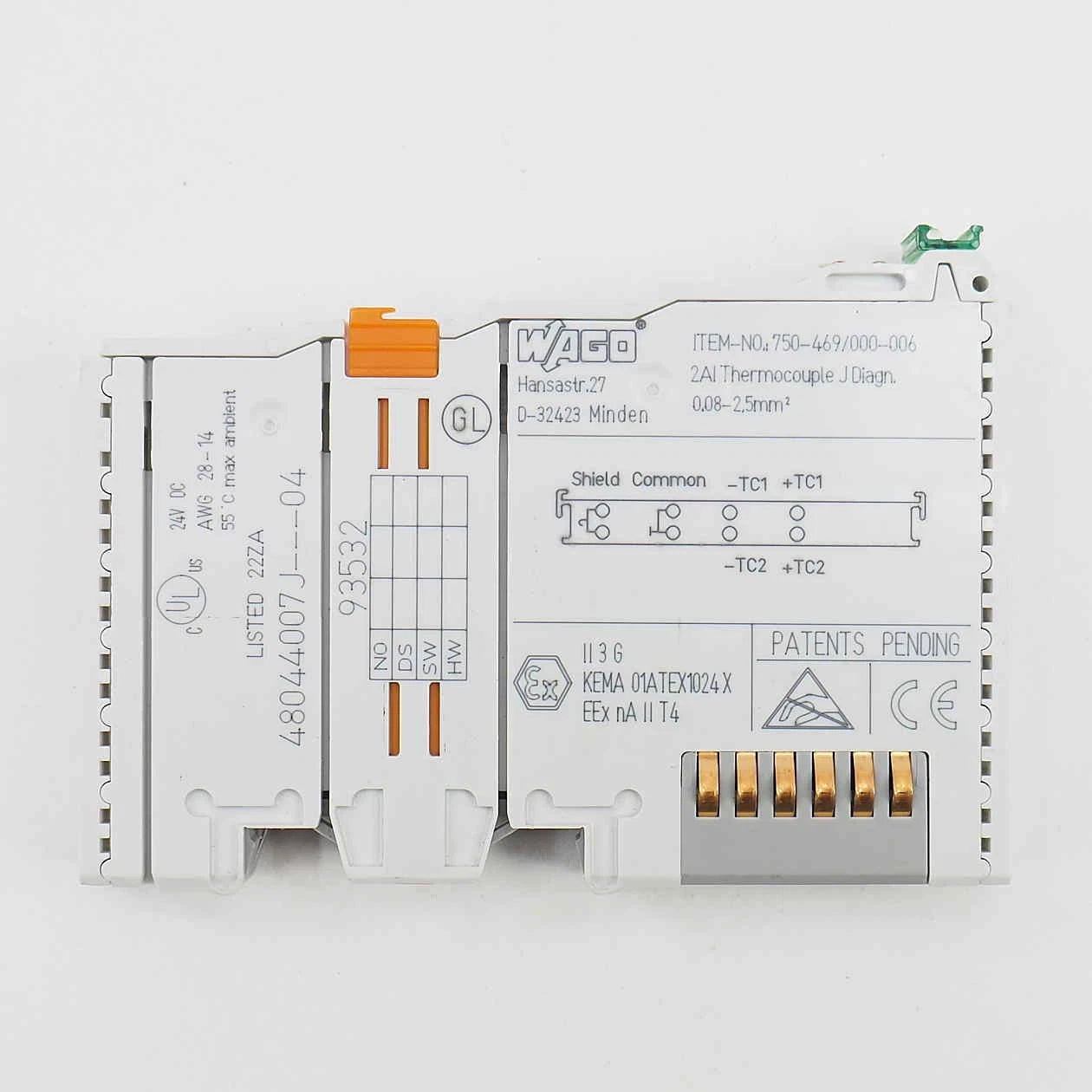

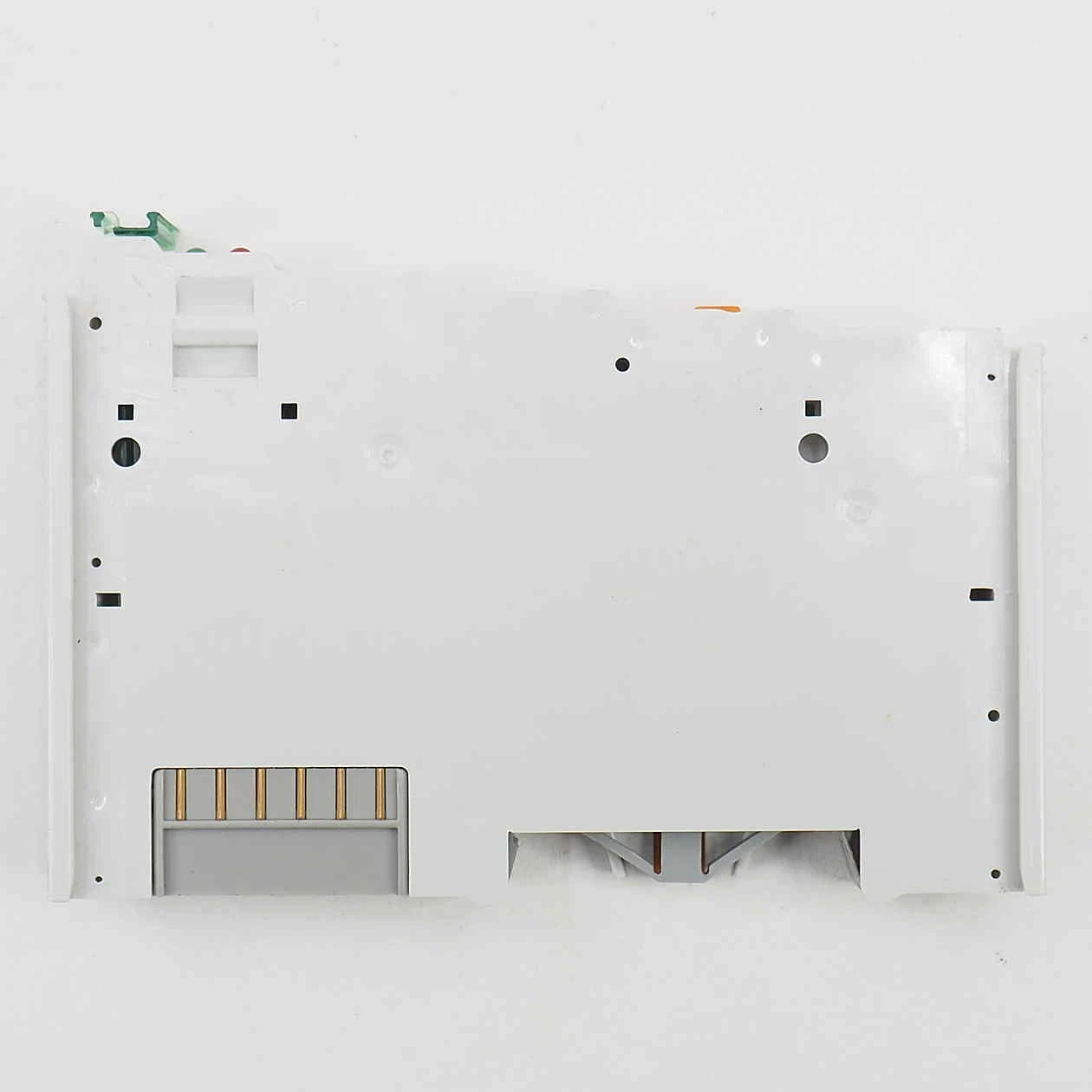

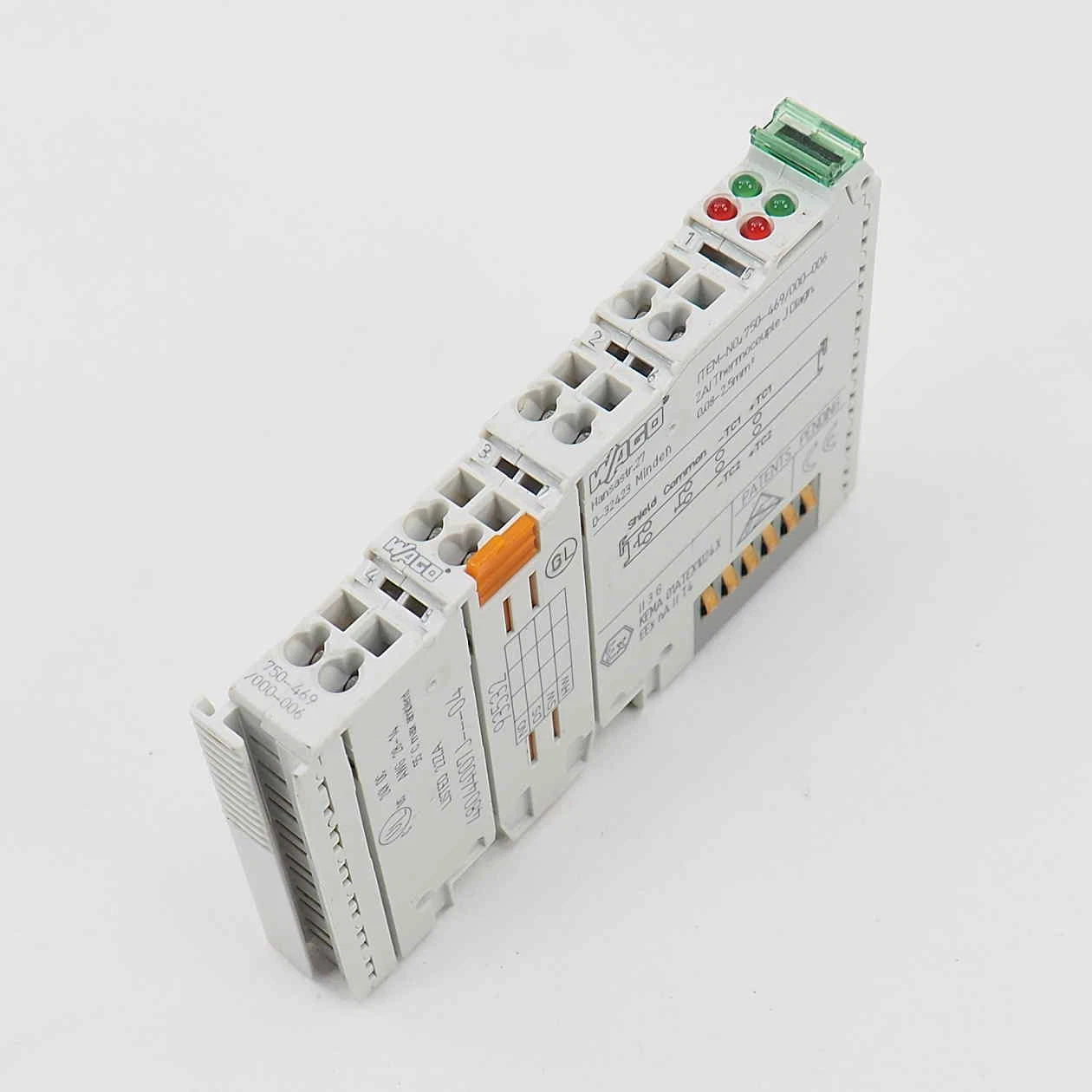

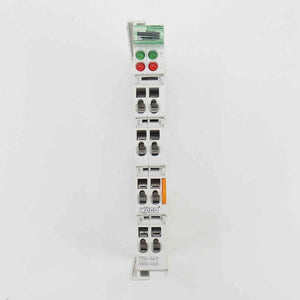

750-469/000-006 | WAGO 2-Channel Type J Thermocouple Analog Input Module
- Regular price
- $579.00
- Sale price
- $579.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 750-469/000-006
Description
The WAGO 750-469/000-006 is a 2-channel analog input module designed for direct connection of Type J thermocouples in industrial temperature measurement applications. It provides accurate temperature acquisition with automatic linearization and integrated diagnostics. This module supports grounded thermocouples and is optimized for reliable operation in modular WAGO I/O systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | WAGO |
| Category | Industrial I/O Modules |
| Part Number | 750-469/000-006 |
| Subcategory | Thermocouple Analog Input Modules |
| Number of Analog Inputs | 2 |
| Signal Type | Thermocouple |
| Supported Sensor Type | Thermocouple J |
| Temperature Range | −100 … +1200 °C |
| Resolution | 0.1 °C |
| Conversion Time | ≤ 320 ms (typ.) |
| Measurement Error (25 °C) | < ±6 K |
| Temperature Coefficient | < ±0.2 K/K |
| Cold Junction Compensation | Integrated at terminal blocks |
| Internal Resistance | 1000 kΩ |
| System Supply Voltage | 5 VDC via data contacts |
| Current Consumption | 65 mA (5 V system supply) |
| Isolation | 500 V system/field |
| Ingress Protection | IP20 |
| Mounting Type | DIN-35 rail |
| Housing Material | Polycarbonate, Polyamide 6.6 |
| Dimensions (W × H × D) | 12 × 100 × 69.8 mm |
| Weight | 51.7 g |
Information About 750-469/000-006
The 750-469/000-006 is part of the WAGO 750 Series I/O System, engineered for scalable and distributed industrial automation. It supports two thermocouple J inputs with internal electrical isolation, allowing safe operation of grounded sensors. The module includes cold junction compensation at each terminal block pair to minimize measurement errors caused by ambient temperature variations. Integrated LED indicators provide immediate visual diagnostics for line breaks, operational readiness, and communication status.
Key Features:
- Dual Thermocouple Input Design: Supports two independent Type J thermocouple channels
- Wide Temperature Measurement Range: Measures temperatures from −100 °C to +1200 °C
- Automatic Signal Linearization: Internally linearizes thermocouple signals across the full range
- Cold Junction Compensation: Compensates terminal block temperature effects over the operating range
- Grounded Sensor Support: Electrical isolation allows safe use of grounded thermocouples
- High Measurement Resolution: Provides 0.1 °C resolution over the entire temperature range

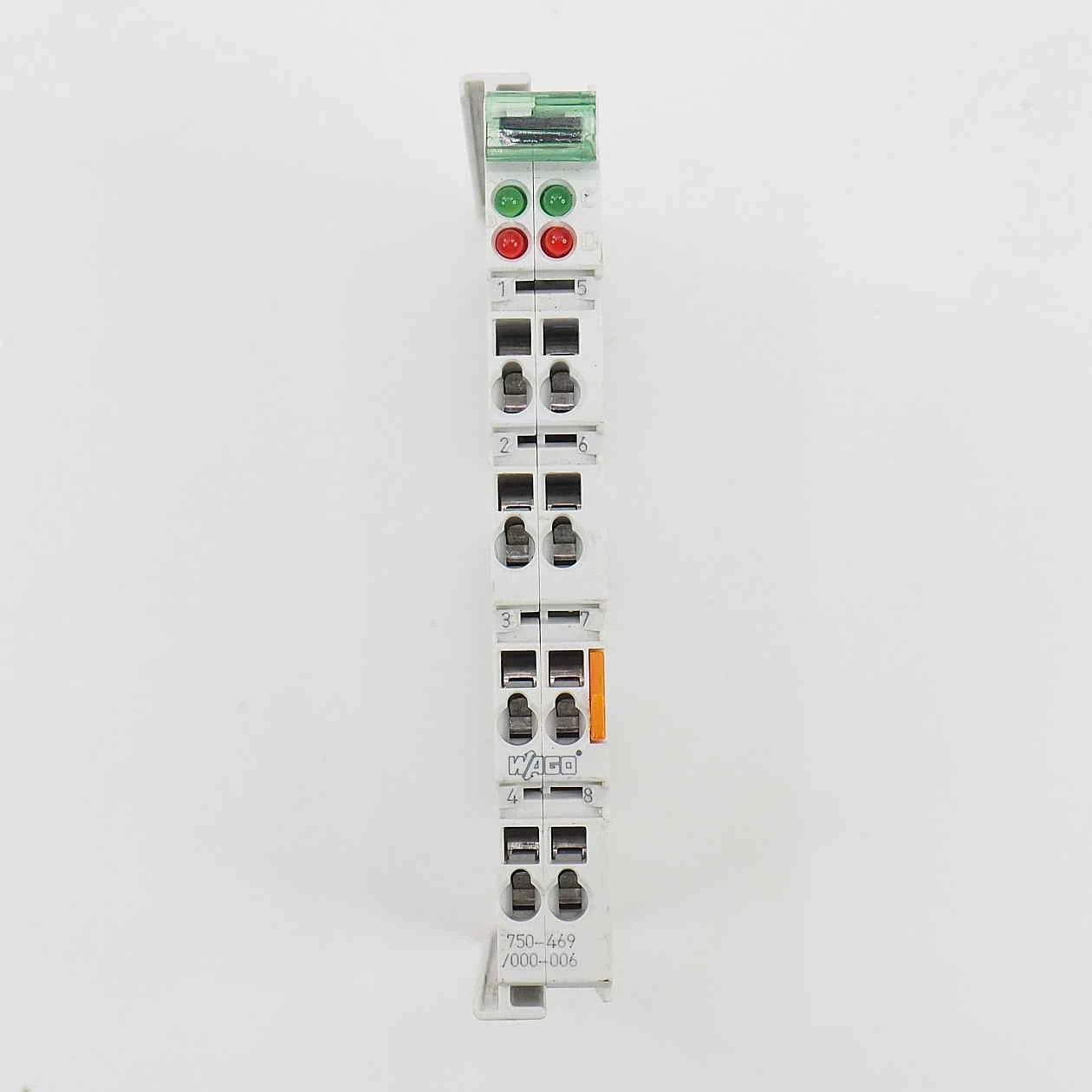

- Integrated Diagnostics LEDs: Green LEDs indicate normal operation; red LEDs signal line breaks or errors
- Electrical Isolation Protection: 500 V isolation between system and field sides
- Compact DIN-Rail Housing: Slim 12 mm design optimizes control cabinet space
- Industrial Environmental Compliance: Designed to meet vibration, shock, and EMC requirements
The 750-469/000-006 delivers the reliability and precision required for high-temperature thermocouple measurement in industrial automation systems.
