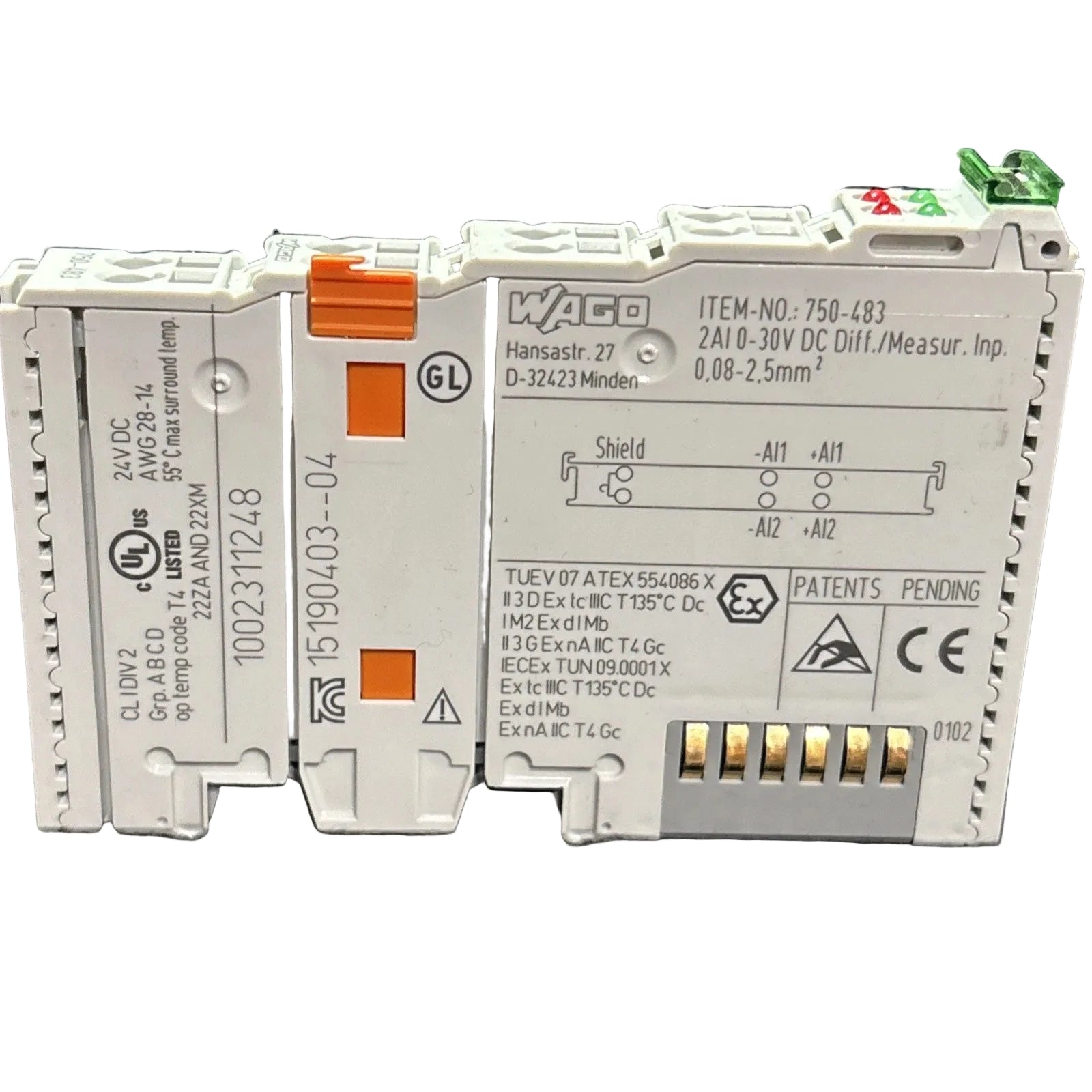

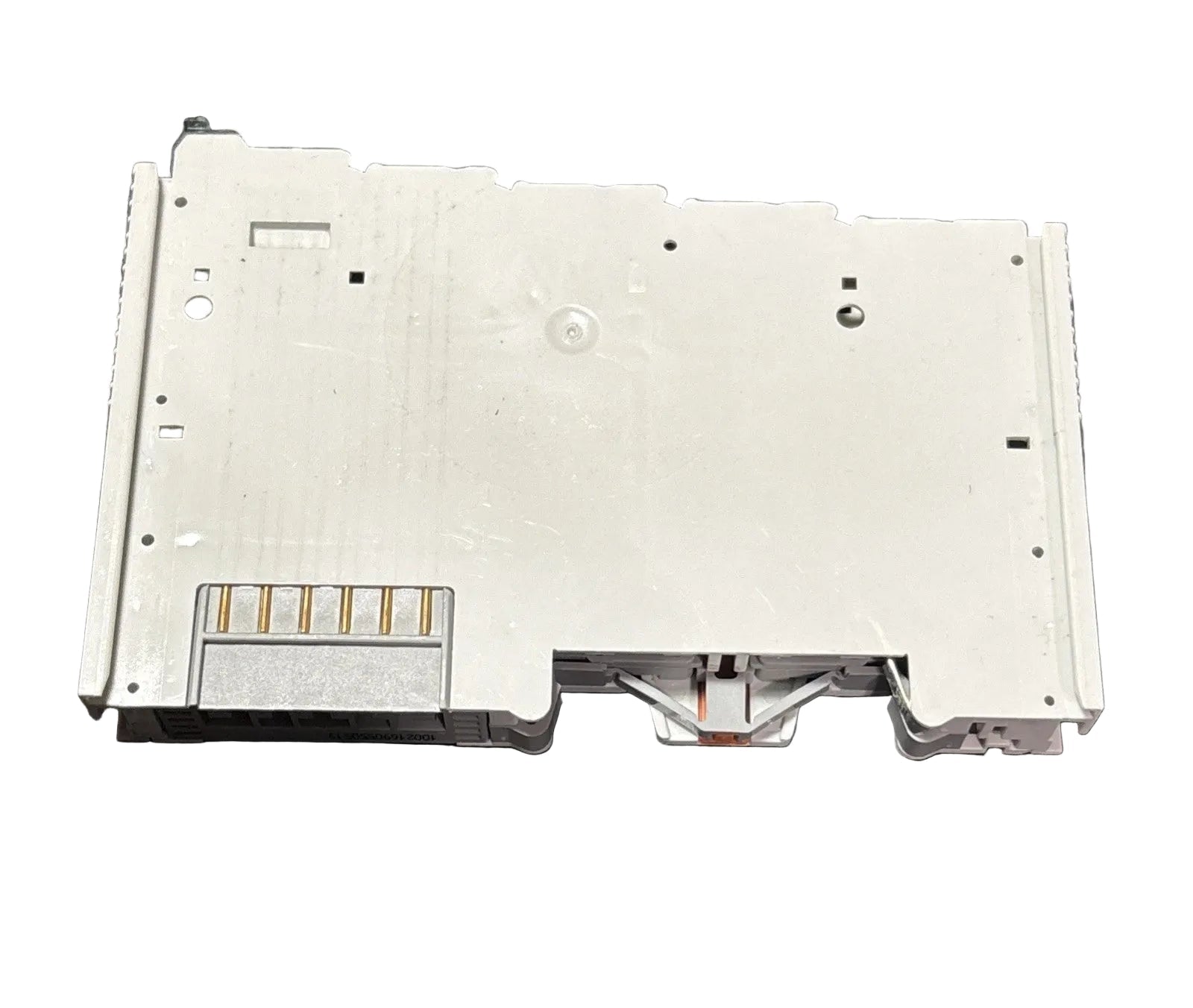

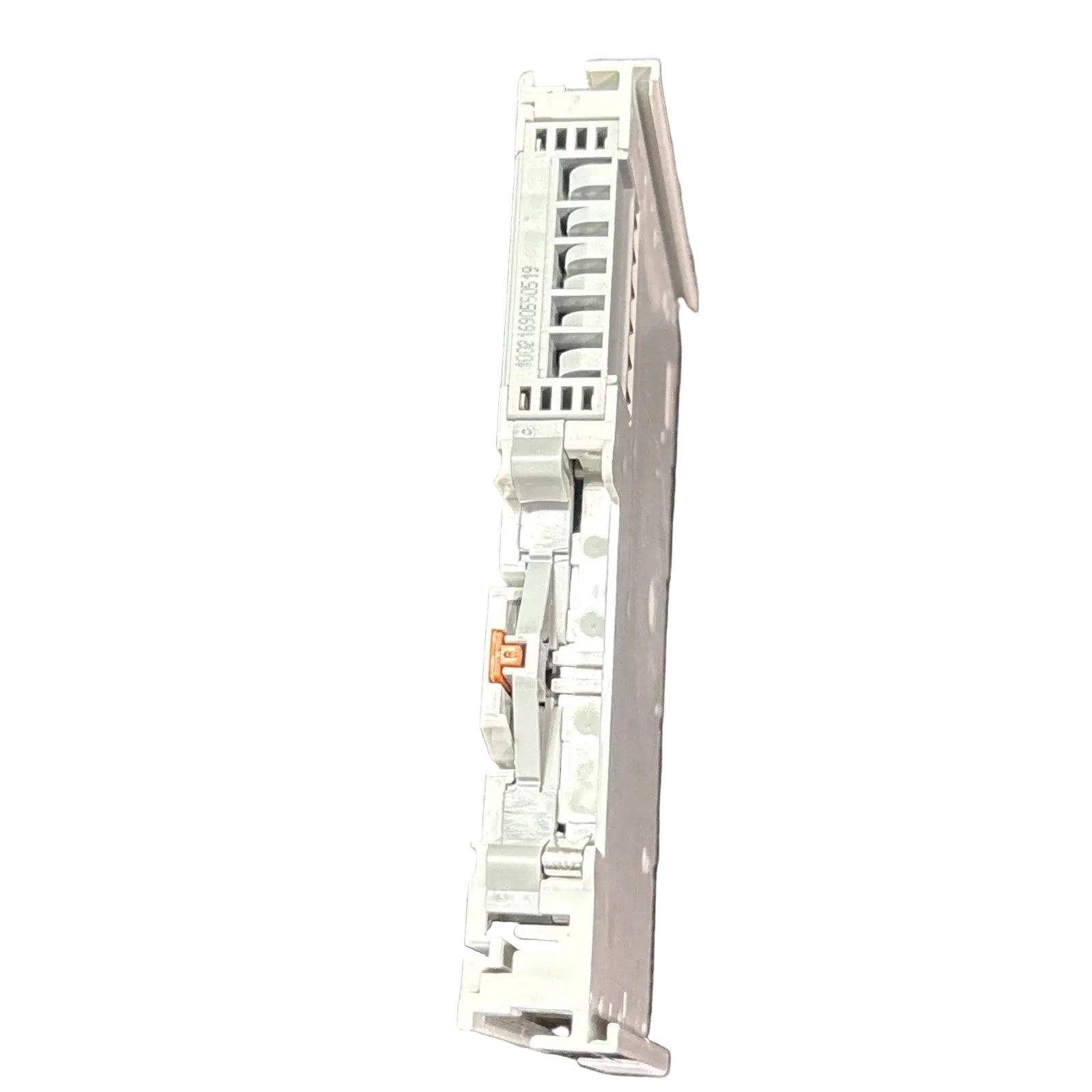

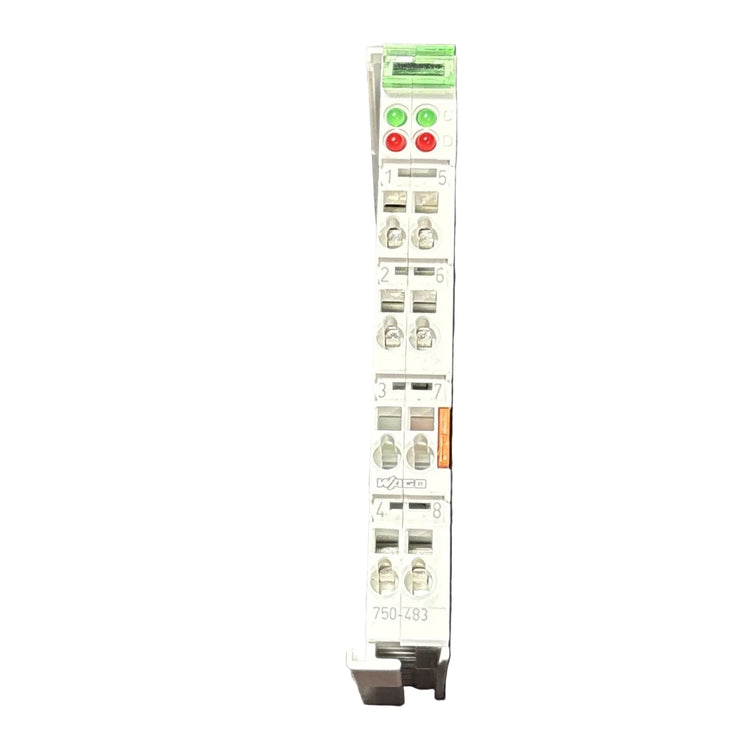

750-483 | Wago 2-Channel Differential Analog Input Module 0–30 VDC
- Regular price
- $557.00
- Sale price
- $557.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 750-483
Description
The Wago 750-483 is a 2-channel analog input module designed for precise measurement of differential voltage signals from 0 to 30 VDC within the WAGO I/O System. It provides high-resolution signal acquisition with electrical isolation per channel, ensuring accurate and reliable data processing. This module is suited for industrial automation applications requiring stable voltage monitoring and noise-resistant measurement.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Wago |
| Category | Industrial Automation |
| Part Number | 750-483 |
| Subcategory | Analog Input Modules |
| Number of Inputs | 2 |
| Signal Type | Voltage, differential |
| Input Range | 0 … 30 VDC |
| Resolution | 14-bit |
| Conversion Method | SAR (Successive Approximation Register) |
| Sampling Repetition Time | 1 ms |
| Input Filter | Low-pass, 1st order, 5 kHz |
| Electrical Isolation | 500 V system/field or channel/channel |
| System Supply Voltage | 5 VDC via data contacts |
| Current Consumption | 80 mA |
| Degree of Protection | IP20 |
| Mounting | DIN-35 rail |
| Operating Temperature | 0 to +55 °C |
| Weight | 50.5 g |
Information About 750-483
The 750-483 is part of the WAGO I/O System 750 analog input module range, engineered for differential voltage signal acquisition. Each input channel is electrically isolated and converts incoming signals using a 14-bit SAR-based conversion method for high measurement accuracy. The module continuously samples input values and integrates diagnostic functions such as overflow and underflow detection via status bytes and LEDs. Designed for compact DIN-rail installations, it draws power directly from the system supply and connects shields directly to the DIN rail for improved EMC performance.
Key Features:
- Dual Analog Inputs: Provides two independent channels for differential voltage measurement.
- Wide Voltage Range: Supports input signals from 0 to 30 VDC for flexible sensing applications.
- Differential Signal Processing: Enhances noise immunity and measurement accuracy in industrial environments.
- High Resolution Conversion: 14-bit resolution ensures precise signal representation.
- Electrical Isolation: 500 V isolation between system and field or channel-to-channel improves safety.
- Continuous Sampling Mode: Default operating mode enables real-time signal acquisition.
- Fast Conversion Technology: SAR-based conversion with short sampling and repetition times.
- Integrated Diagnostics: LED indicators and status bytes report channel errors and range violations.
- Compact DIN-Rail Design: Slim housing minimizes space requirements in control cabinets.
The 750-483 delivers the reliability and precision required for accurate analog voltage measurement in distributed industrial automation systems.
