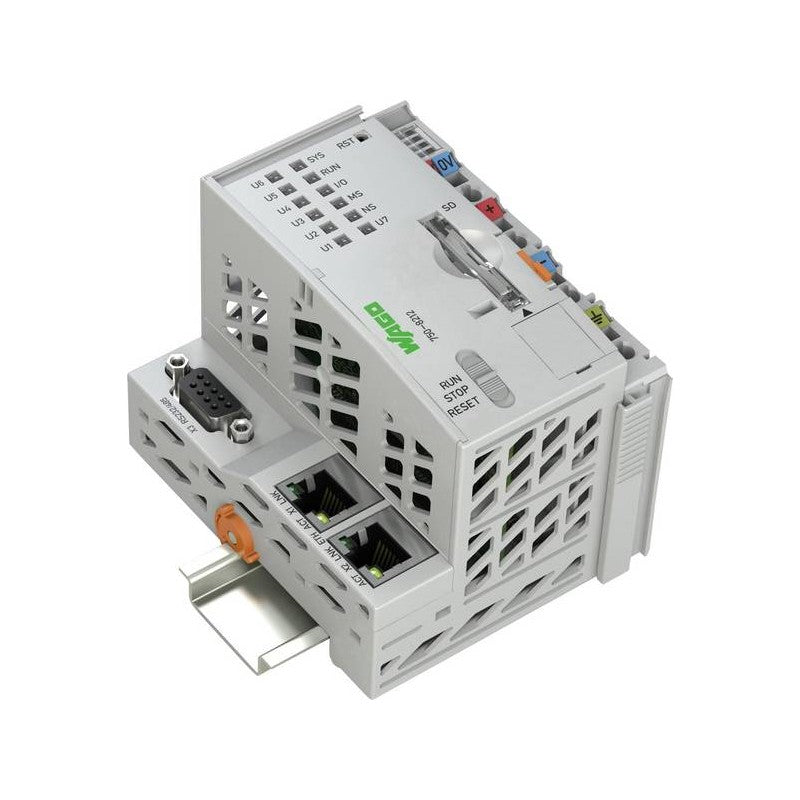

750-8212 | Wago Controller PFC200
- Regular price
- $1,472.00
- Sale price
- $1,472.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 750-8212
Description
The 750-8212 Wago Controller PFC200 is a compact, high-performance programmable field controller designed for industrial automation. It features modular I/O integration, supports multiple communication protocols like Ethernet/IP and Modbus TCP, and is programmable via CoDeSys. The PFC200 also offers a web-based interface for remote monitoring and configuration, making it ideal for a wide range of automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Wago |
| Category | PLCs and Accessories |
| Part Number | 750-8212 |
| Subcategory | Programmable Controllers |
Weight |
0.21 kgs |
Operating Voltage Min. |
18 V |
Operating Voltage Max. |
24 V |
Load Current |
1.7 A |
Amperage Rating |
550 mA |
Dimensions |
3.937 in H x 3.094 in W x 2.831 in D |
Temperature Rating (Degrees F) |
0 to 55 deg C |
Type |
2nd Generation |
Baud rate |
ETHERNET: 10/100 Mbit/s |
Depth |
71.9 mm / 2.831 inch |
Height |
100 mm / 3.937 inch |
Internal memory |
4096 MB |
Isolation |
500 V system/field |
Main memory (RAM) |
512 MB |
Mounting Type |
DIN Rail, DIN-35 rail |
Information About 750-8212
The 750-8212 is a Wago Controller PFC200 (Programmable Field Controller), part of Wago’s I/O system designed for industrial automation. The PFC200 is a compact, high-performance controller with integrated web-based programming and advanced communication capabilities, making it suitable for a variety of industrial applications.
Key Features:
- Performance: Equipped with a powerful processor for efficient control of automated systems.
- Modular Design: Works with Wago's modular I/O systems, offering flexibility and scalability for various automation needs.
- Communication: Supports multiple communication protocols such as Ethernet/IP, Modbus TCP, PROFINET, and BACnet, enabling seamless integration with different industrial devices and systems.
- Programming: Programmable via CoDeSys, a widely-used IEC 61131-3 standard software, providing a user-friendly interface for programming.
- Web-based Interface: Provides an integrated web server for remote monitoring and configuration, simplifying maintenance and troubleshooting.
- Compact Size: A space-saving design, making it ideal for installations with limited space.
The 750-8212 Wago Controller PFC200 is a versatile, reliable controller suitable for applications in factory automation, building automation, energy management, and more. Its high processing capability, flexible I/O integration, and communication options make it an ideal choice for modern industrial control systems.
