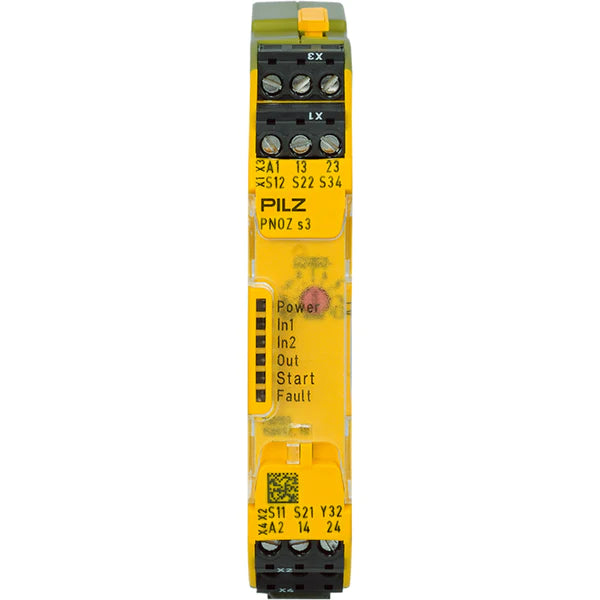

750103 | Pilz PNOZ S3 Safety Relay 24 V DC 2 N/O
- Regular price
- $289.00
- Sale price
- $289.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 750103
Description
The Pilz 750103 is a PNOZ S3 safety relay designed to monitor and control safety functions in industrial automation systems. It operates on a 24 V DC supply and provides reliable safety switching using normally open safety contacts. The relay is engineered to meet high safety requirements for machinery protection and personnel safety.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | Pilz |
| Category | Safety Systems |
| Part Number | 750103 |
| Subcategory | Safety Relay |
| Series | PNOZ S3 (PNOZsigma) |
| Supply Voltage | 24 V DC |
| Number of Channels | 2 |
| Safety Contacts | 2 N/O |
| Input Channels | 3 |
| Output Channels | 3 |
| Reset Method | Automatic, Manual, Monitored |
| Safety Category | Category 4 (ISO 13849-1) |
| Performance Level | PL e |
| SIL Rating | SIL 3 (IEC 61508) |
| Functions | Emergency stop, light curtain/beam, safety switch/interlock |
| Terminal Type | Screw terminals |
| Operating Temperature | -10…55 °C |
| Width | 17.5 mm |
| Height | 102 mm |
| Depth | 120 mm |
Information About 750103
The 750103 is a compact safety relay from the Pilz PNOZ S3 series, designed to implement safety-related control functions in industrial machinery. It is suitable for monitoring emergency stop circuits, safety gates, light curtains, and interlock switches. The relay supports both automatic and monitored manual reset modes, enabling flexible integration into different safety concepts. Its slim housing allows efficient use of control cabinet space while maintaining compliance with the highest safety standards.
Key Features
- PNOZ S3 Safety Relay Platform: Proven Pilz design for safety-critical applications.
- 24 V DC Operation: Compatible with standard industrial control power systems.
- High Safety Integrity: Certified to Category 4, PL e, and SIL 3 safety levels.
- Flexible Reset Options: Supports automatic, manual, and monitored reset configurations.
- Compact Housing: Slim 17.5 mm width for space-efficient panel installation.
- Multiple Safety Functions: Suitable for emergency stop, light curtain, and safety interlock monitoring.
- Industrial Reliability: Designed for stable operation across a wide temperature range.
The 750103 delivers the reliability and precision required for safeguarding machinery and personnel in demanding industrial safety applications.
