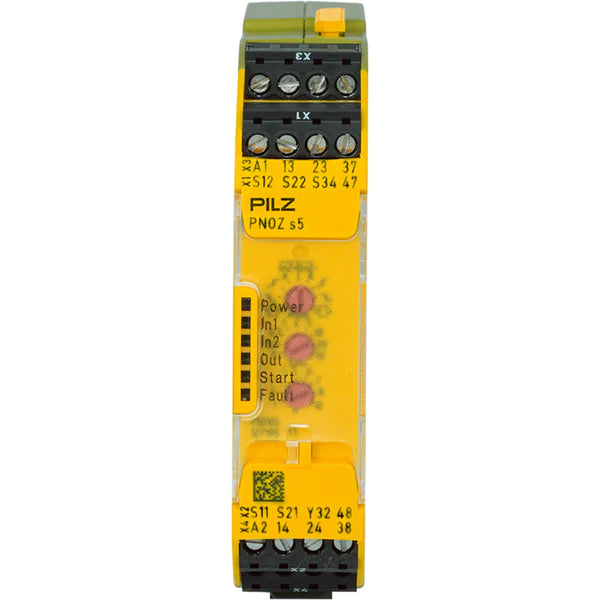

750105 | Pilz PNOZsigma Safety Relay 24 VDC, 4PST-NO
- Regular price
- $325.00
- Sale price
- $325.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 750105
Description
The Pilz 750105 is a compact safety relay designed for critical safety-related control functions in industrial machinery. Featuring reliable switching performance and 24 VDC coil operation, it provides dependable monitoring for emergency stops, safety gates, and protective devices.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pilz |
| Category | Safety Relays |
| Part Number | 750105 |
| Subcategory | PNOZsigma Safety Relay |
| Amperage Rating | 40 mA |
| Coil Voltage | 24 VDC |
| Contact Form | 2NO (module description includes 4PST-NO functions) |
| Application | Safety gate, E-STOP monitoring, limit switch/light beam monitoring |
| Power Rating | 4 W |
| Frequency Rating | 50/60 Hz |
| Mounting Type | Plug-in |
| Terminal Type | Screw terminals |
| Enclosure Rating | IP20 / IP40 / IP54 |
| Temperature Rating | –10 to 55 °C |
| Series | PNOZsigma |
| Dimensions | 98 mm H × 22.5 mm W × 120 mm D |
| Function | Safety monitoring relay |
Information About 750105
The 750105 is part of the Pilz PNOZsigma family, a range of safety relays engineered to provide compact, efficient, and reliable protection functions in industrial automation systems. This model supports monitoring for safety gates, emergency stops, limit switches, and optical safety devices, ensuring compliance with machine safety standards. Its 24 VDC coil voltage and universal 50/60 Hz compatibility make it suitable for a wide variety of control environments, while its plug-in mounting design simplifies installation and maintenance. With multiple enclosure protection options and a narrow form factor, the relay integrates easily into modern control cabinets and machine safety circuits.
Key Features:
- 24 VDC coil operation: ensures stable activation and compatibility with standard industrial control power supplies.
- Multi-function safety monitoring: supports safety gate control, instantaneous and delayed E-STOP monitoring, and sensor device supervision.
- Compact PNOZsigma design: provides a narrow 22.5 mm width to save space within crowded control panels.
- Flexible enclosure ratings (IP20/IP40/IP54): allows integration into protected or semi-protected areas depending on installation needs.
- Plug-in mounting system: enables quick replacement and streamlined maintenance without rewiring external connections.
- Screw-terminal wiring: ensures secure termination for safety-critical circuits and consistent electrical reliability.
- 4W power consumption: maintains efficient operation while supporting continuous monitoring tasks in safety systems.
- Broad temperature tolerance: operates reliably from –10 to 55 °C for use in varied industrial conditions.
The 750105 delivers the reliability and precision required for dependable safety monitoring, machine protection, and compliant operation in industrial automation environments.
