753-540 | WAGO 4-Channel 230 VAC Solid-State Digital Output Module
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 753-540
Description

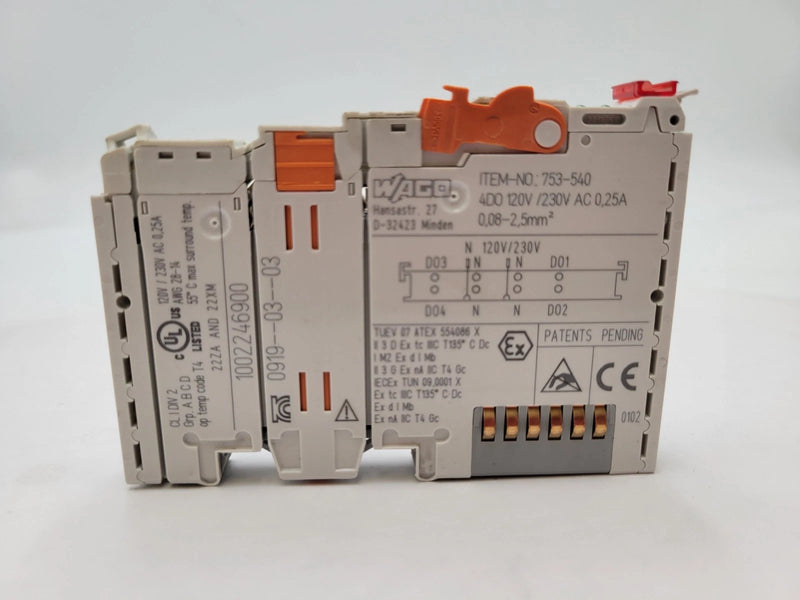

The WAGO 753-540 is a 4-channel solid-state digital output module designed for switching AC loads up to 230 VAC in industrial automation systems. It transmits control signals from the automation controller to connected actuators with reliable electrical isolation. This module is optimized for compact, high-density output control within WAGO I/O systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | WAGO |
| Category | Industrial I/O Modules |
| Part Number | 753-540 |
| Subcategory | Digital Output Modules |
| Number of Digital Outputs | 4 |
| Signal Type | Digital |
| Output Voltage Range | 5 … 250 VAC |
| Rated Output Voltage | 230 VAC |
| Output Current per Channel | 0.25 A |
| Output Characteristic | High-side switching |
| Load Types Supported | Resistive, inductive |
| Short-Circuit Protection | Yes |
| Short-Circuit Current | Max. 10 A (16 ms) |
| Switching Time (On/Off) | ≤ 10 ms |
| System Supply Voltage | 5 VDC via data contacts |
| Field Supply Voltage | 230 VAC via power jumper contacts |
| Current Consumption | 18 mA (5 V system supply) |
| Isolation | Electrical isolation between system and field |
| Ingress Protection | IP20 |
| Mounting Type | DIN-35 rail |
| Housing Material | Polycarbonate, Polyamide 6.6 |
| Dimensions (W × H × D) | 12 × 100 × 69.8 mm |
| Weight | 41.4 g |
Information About 753-540
The 753-540 is part of the WAGO 753 Series I/O modules, engineered for modular and scalable automation architectures. It provides four high-side switching digital output channels, allowing control of up to eight actuators via two-wire connections. Field and system levels are electrically isolated to improve operational safety and noise immunity. The module requires an additional supply module to provide the 120/230 VAC field supply and is designed for DIN-rail-mounted control cabinets.
Key Features:
- Four-Channel Digital Output Module: Provides four independent AC digital output channels
- Solid-State Switching Technology: Enables silent and wear-free switching of AC loads
- Wide Output Voltage Range: Supports digital output signals from 5 to 250 VAC
- High-Side Switching Design: Ensures reliable control of connected actuators
- Electrical Isolation: Isolates system and field levels for improved safety
- Short-Circuit Protection: Outputs are protected against short-circuit conditions

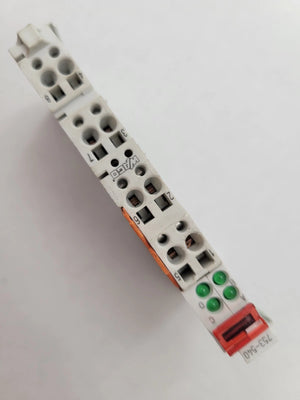

- LED Status Indication: Green LEDs display the switching state of each output channel
- Compact DIN-Rail Housing: Slim 12 mm width supports high-density installations
- Industrial Load Compatibility: Suitable for resistive and inductive loads
- Overvoltage Protection: Integrated varistor protection up to 275 V
The 753-540 delivers the reliability and precision required for AC actuator control in industrial automation environments.
