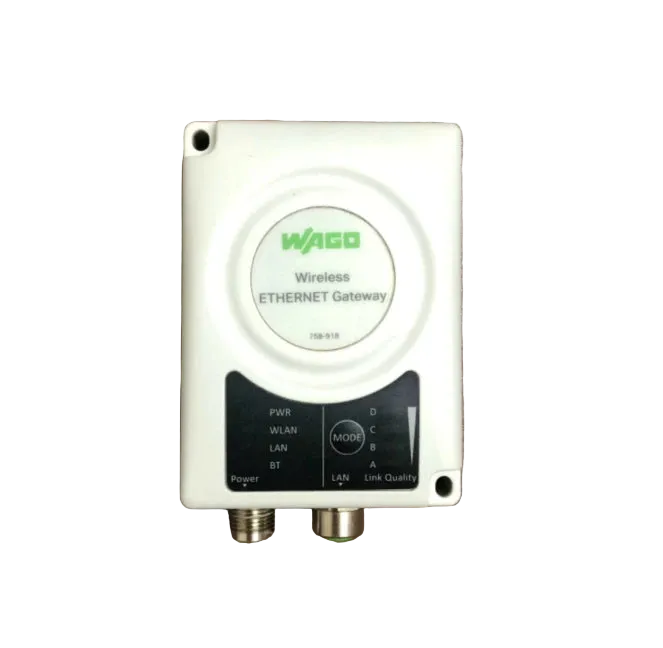

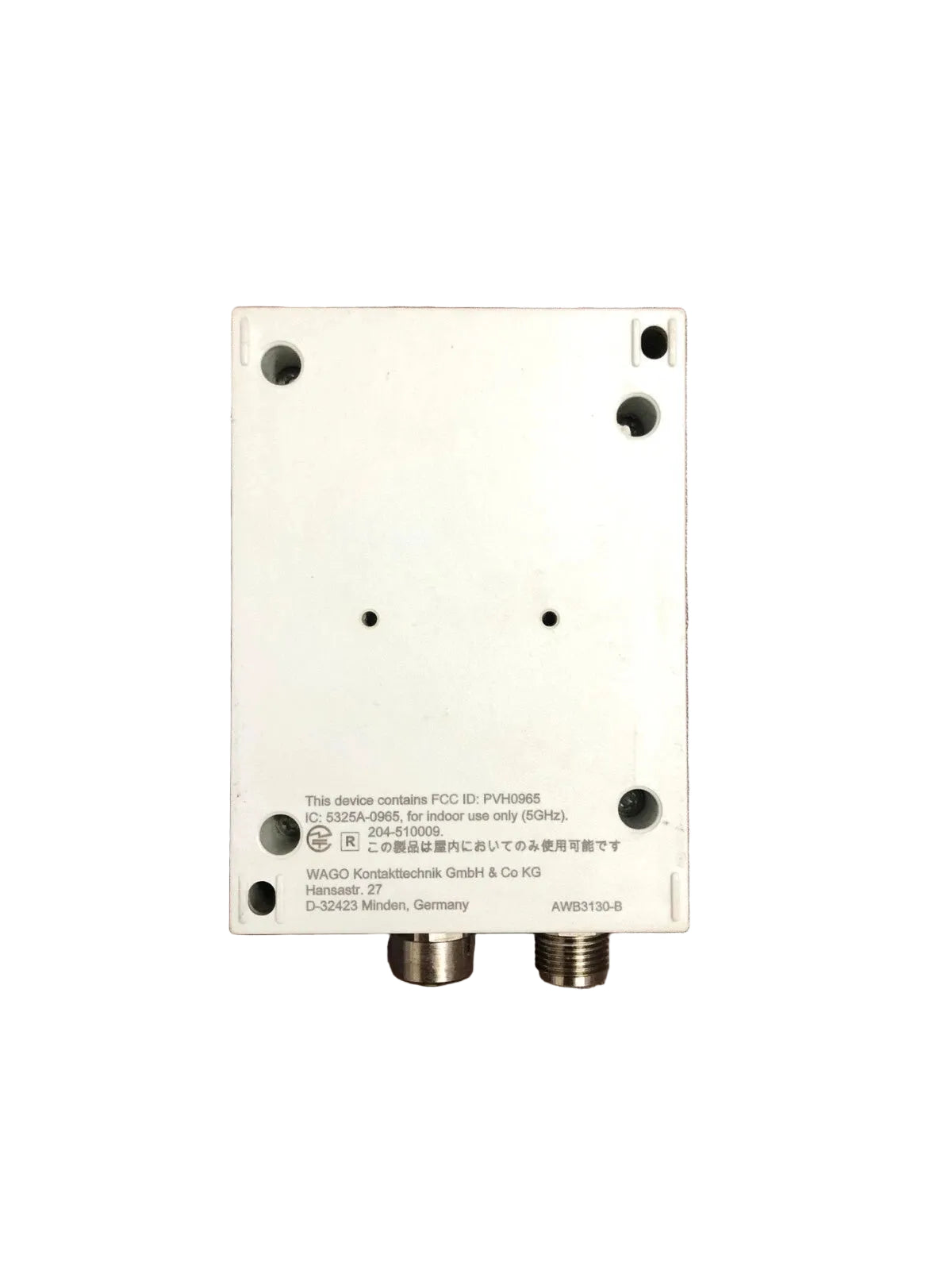

758-918 | WAGO WLAN Ethernet Gateway for Industrial Automation
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 758-918
Description
The WAGO 758-918 is a WLAN Ethernet Gateway designed to create a reliable wireless Ethernet connection for industrial automation networks. It serves as a cable replacement for Ethernet-based protocols, enabling robust Bluetooth® or WLAN communication between automation devices. This gateway is engineered for secure and stable wireless data transmission in harsh industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | WAGO |
| Category | Industrial Communication Devices |
| Part Number | 758-918 |
| Subcategory | Wireless Ethernet Gateways |
| Wireless Technology | Bluetooth® 4.0; WLAN |
| WLAN Standards | IEEE 802.11 a/b/g/d/e/i/h |
| Frequency Bands | 2.4 GHz (Bluetooth®, WLAN); 5 GHz (WLAN) |
| Transmission Range | Up to 400 m |
| Security Encryption | None, WEP64, WEP128, TKIP, AES/CCMP |
| Security Authentication | WPA/WPA2 PSK, LEAP, PEAP |
| Network Topology | Peer-to-peer |
| Antenna Type | Internal directional antenna |
| Ethernet Interface | 1 × M12 socket, B-coded |
| Trigger Input | 1 × 9 … 30 VDC |
| Supply Voltage | 24 VDC (9 … 30 VDC) |
| Ingress Protection | IP65 |
| Operating Temperature | −30 … +65 °C |
| Storage Temperature | −40 … +85 °C |
| Dimensions (W × H × D) | 67.8 × 33.2 × 92.7 mm |
| Weight | 120 g |
Information About 758-918
The 758-918 is part of WAGO’s wireless communication solutions, developed to simplify Ethernet networking without physical cabling. It supports peer-to-peer wireless connections and can also operate as an access point for flexible network topologies. The gateway features an IP65-rated housing and an internal directional antenna, allowing installation in demanding industrial locations. Configuration is simplified through push-button pairing and extended configuration options via a web-based management interface.
Key Features:
- Wireless Ethernet Bridge Functionality: Acts as a cable replacement for Ethernet-based automation networks
- Multi-Protocol Compatibility: Supports Ethernet protocols such as PROFINET, Modbus/TCP, and EtherNet/IP
- Dual Wireless Technologies: Operates using Bluetooth® 4.0 and WLAN communication
- Peer-to-Peer Network Topology: Enables direct wireless connections between automation devices
- Access Point Capability: Can be configured to operate as a wireless access point
- Industrial-Grade Housing: IP65-rated enclosure suitable for harsh environments
- Internal Directional Antenna: Enhances signal stability and transmission range
- Push-Button Pairing: Allows fast and simple wireless connection setup
- Web-Based Management Interface: Enables advanced configuration and monitoring
- Long Transmission Distance: Supports wireless communication ranges up to 400 meters
The 758-918 delivers the reliability and flexibility required for wireless Ethernet communication in industrial automation systems.
