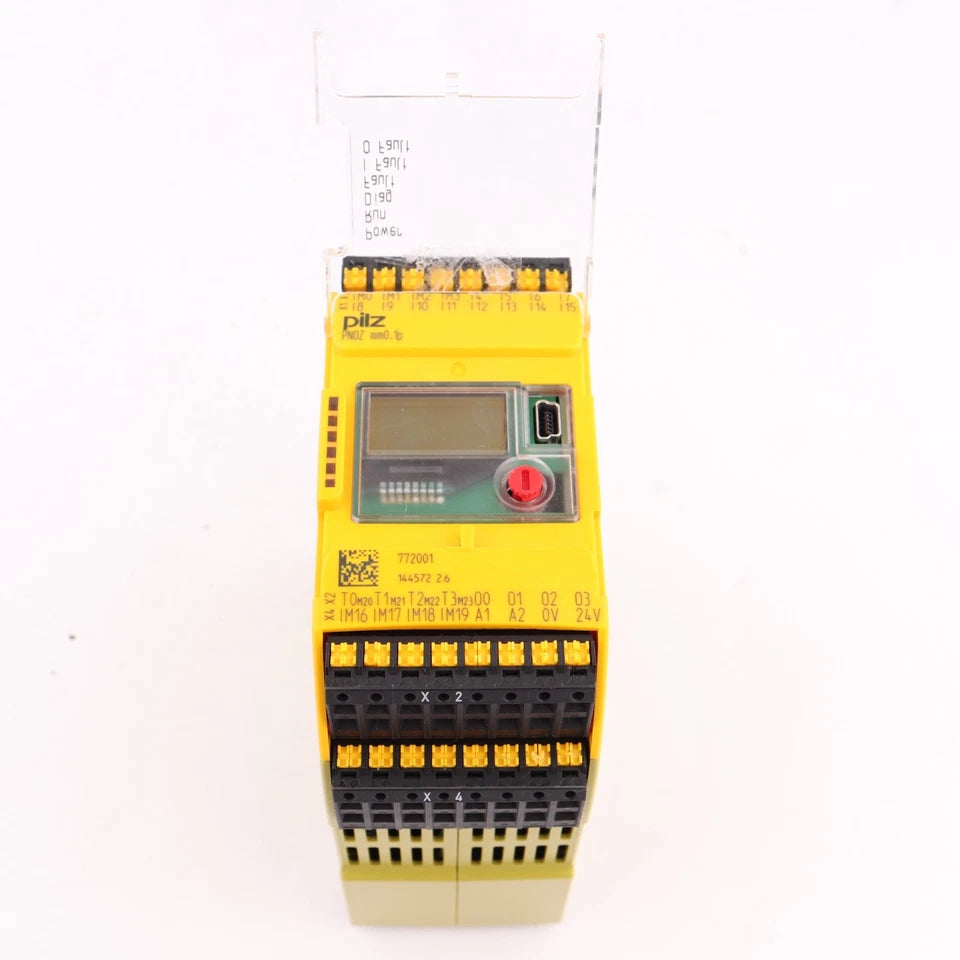

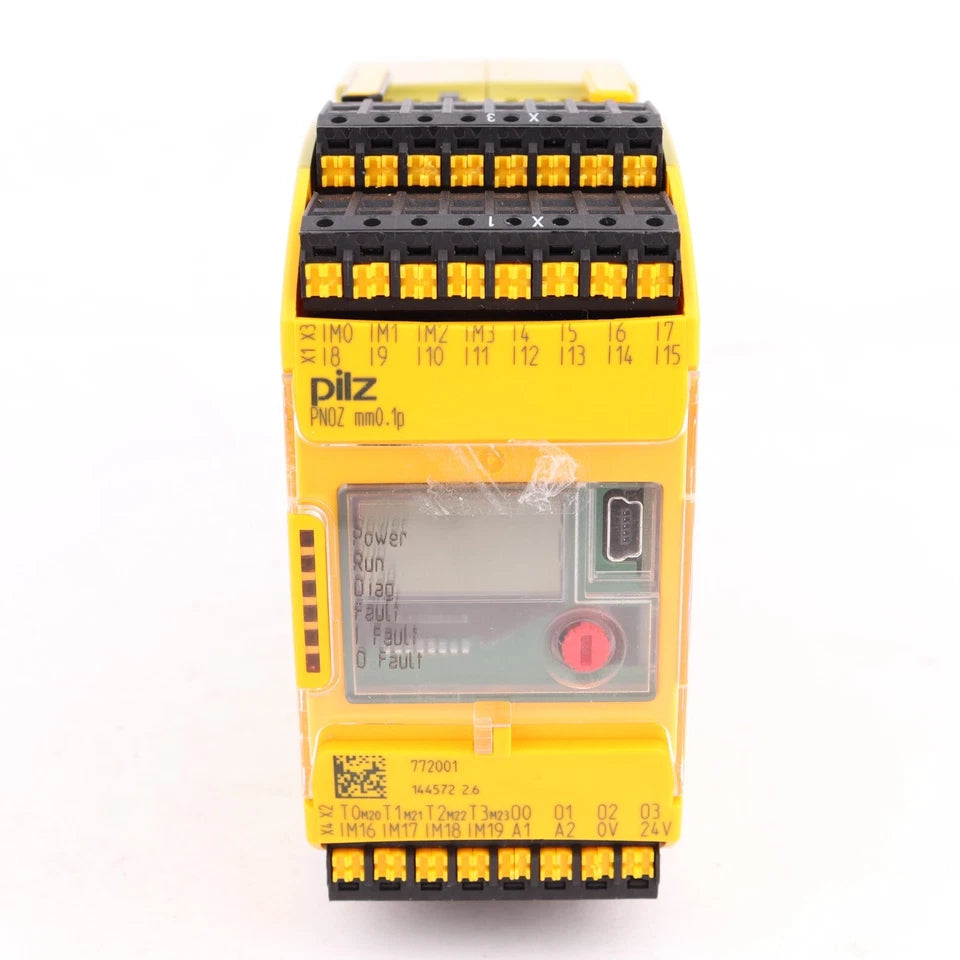

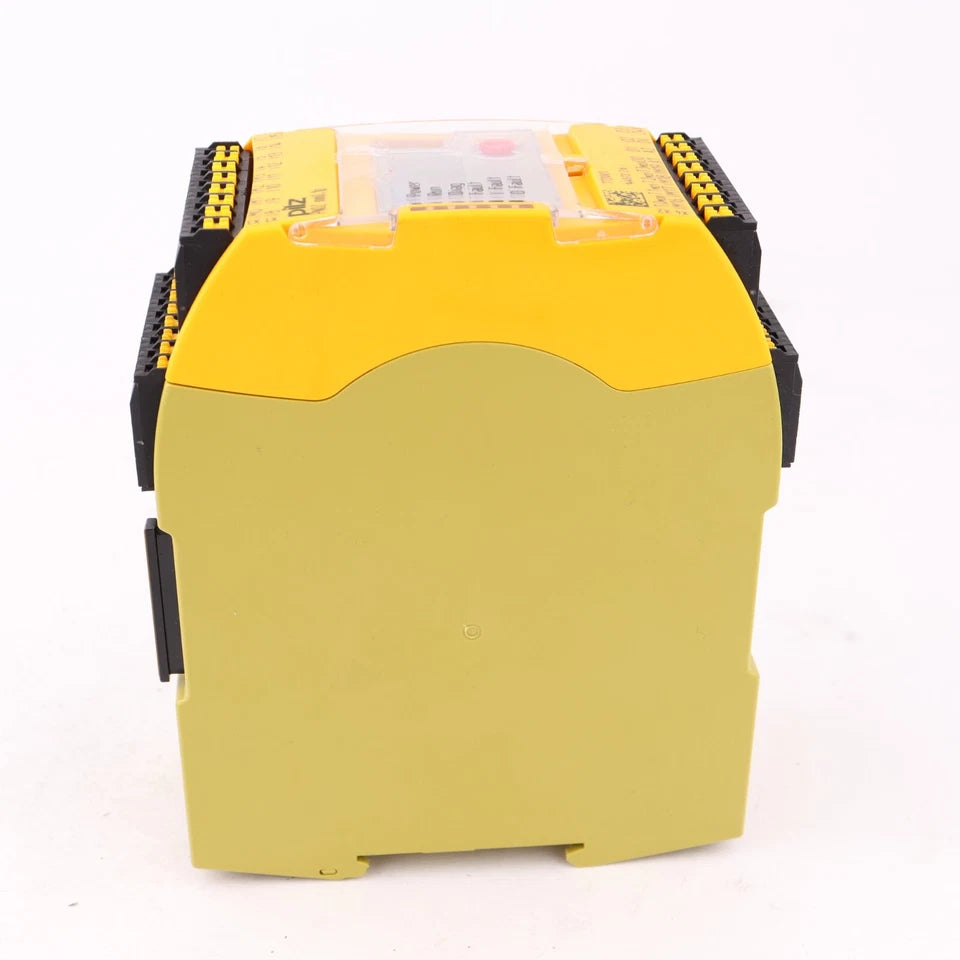

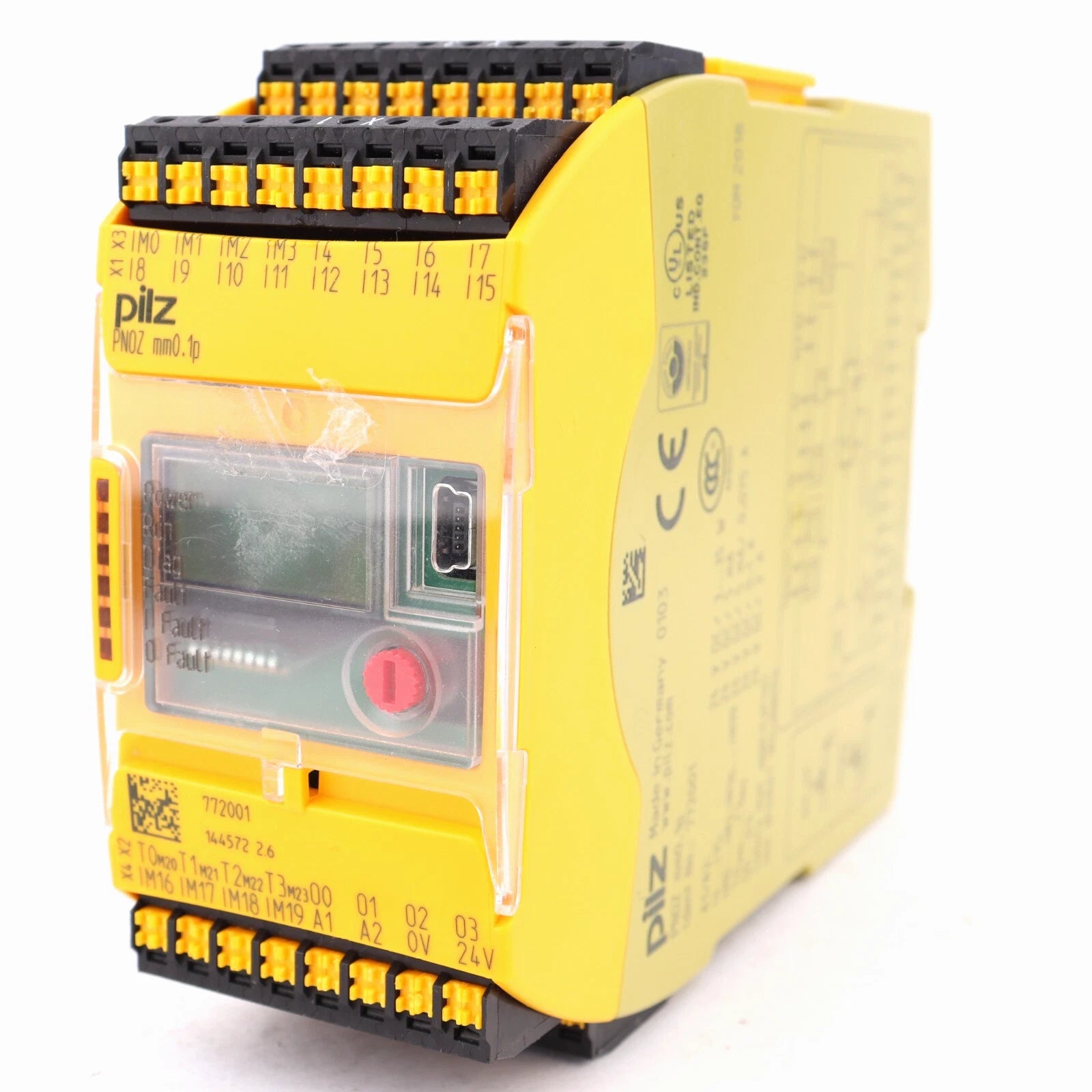

772001 | Pilz PNOZ mm0.1p PNOZmulti Mini Base Safety Controller
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 772001
Description
The Pilz 772001 is a configurable compact safety controller serving as the base unit of the PNOZmulti Mini system for safety-related control tasks. It provides integrated safe digital inputs and semiconductor outputs for centralized monitoring and control in machine safety applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pilz |
| Category | Safety Controllers |
| Part Number | 772001 |
| Subcategory | Configurable Safety Controllers |
| Product Series | PNOZmulti Mini |
| Model | PNOZ mm0.1p |
| Controller Type | Expandable base unit |
| Safe Digital Inputs | 20 |
| Safe Semiconductor Outputs | 4 |
| System Supply Voltage (U1) | 24 V DC |
| Output Supply Voltage (U2) | 24 V DC |
| Power Consumption | 35 W |
| Application | Safe voltage monitoring |
| Mounting | DIN rail |
| Connection Type | Screw / spring-loaded terminals |
| Conductor Size | 24–12 AWG |
| Approvals | CCC, CE, cULus |
| Ambient Temperature | 0 to +60 °C |
| Dimensions (H x W x D) | 100 x 45 x 120 mm |
| Weight | 231 g |
Information About 772001
The 772001 is part of the Pilz PNOZmulti Mini platform, a range of configurable compact safety controllers designed for modular and scalable machine safety solutions. As a base unit, it supports expansion with additional modules and enables centralized evaluation of safety functions using integrated safe inputs and outputs. The device is used for applications such as safe voltage monitoring and general safety logic processing within automated systems. This product has reached the end of its product lifecycle and is no longer planned for future availability, with Pilz recommending migration to a successor solution where required.
Key Features
- PNOZmulti Mini Base Unit: Serves as the central controller for compact and configurable safety systems within the PNOZmulti Mini family.
- High Input Density: Provides 20 safe digital inputs, enabling direct connection of multiple safety devices without additional input modules.
- Integrated Safe Outputs: Includes 4 safe semiconductor outputs for controlling safety-related actuators and signals.
- Expandable System Design: Supports connection of expansion modules to adapt the safety controller to evolving machine requirements.
- Dual Power Supply Concept: Separates system supply and output supply to support stable operation and flexible power distribution.
- Industrial Mounting And Wiring: DIN rail mounting with screw and spring-loaded terminals allows secure installation and reliable wiring.
- Certified Safety Compliance: Approved to international standards including CE, cULus, and CCC for global industrial use.
The 772001 delivers the reliability and precision required for compact, configurable safety control and safe voltage monitoring in PNOZmulti Mini systems.
