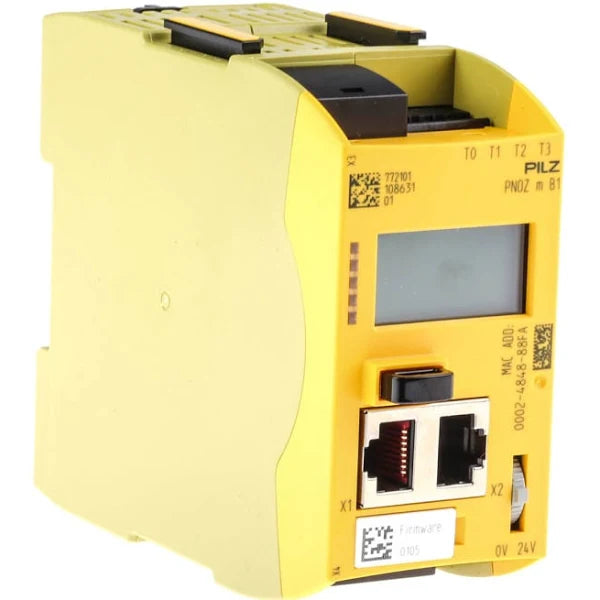

Part #: 772101 Manufactured by: Pilz
Regular price
$804.00
Sale price
$804.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Pilz 772101 Controller belongs to the PNOZ Series and serves as a base unit for the PNOZmulti 2 configurable safe smal...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 772101
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Pilz
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 772101

Description / Specifications

Description

The Pilz 772101 Controller is a Base Unit featuring an Ethernet Interface, 2 RJ45 ports, and 4 Pulse Outputs, designed as part of the PNOZmulti 2 Series. These configurable safe small controllers find application across various sectors of plant and mechanical engineering. They serve the dual purpose of safely monitoring safety functions and executing standard control functions economically. The PNOZmulti 2 controllers boast a modular design: users can select a base unit and then customize the setup by adding the required number of expansion modules to suit their specific application requirements. The compact standalone base unit, PNOZ m C0, is non-modular and not expandable. Despite its narrow 22.5 mm width, it offers powerful performance comparable to a safety controller. Configuration of both the hardware and application is facilitated through the PNOZmulti Configurator software tool. Upon completion, the configuration is transferred onto a program memory and inserted into the base unit. The configurator allows for offline simulation of configurations before actual commissioning, eliminating the need for physical hardware during testing and setup phases.



Technical Specifications





Manufacturer

PILZ

Category

Safety Systems

Subcategory

Safety Relay

Depth

98 mm

Evaluation inputs

1-channel

Height

120.2 mm

Model

Basic device

Number of outputs, signalling function, delayed, semiconductors

0

Number of outputs, signalling function, delayed, with contact

0

Performance level acc. to EN ISO 13849-1

Level e

Rail mounting possible

Yes

Supply voltage DC

24...24 V

Type of electric plug connection

Screw connection

Voltage type of supply voltage

DC

Width

45 mm

With approval according to UL

Yes





Information About 772101




The Pilz 772101 Controller is a part of the PNOZ Series, specifically the PNOZmulti 2 line of configurable safe small controllers. These controllers find extensive application across various domains of plant and mechanical engineering. The PNOZmulti 2 controllers serve the dual purpose of safely monitoring safety functions and executing standard control functions in a cost-effective manner.

Featuring a modular design, the PNOZmulti 2 controllers offer flexibility to users. They can select a base unit and then customize the setup by adding the required number of expansion modules to tailor the system to their specific application requirements. However, it's essential to note that the compact standalone base unit, PNOZ m C0, is not modular and expandable.

Despite its narrow 22.5 mm width, the PNOZ m C0 base unit delivers robust performance comparable to a safety controller, making it a versatile choice for various applications. The hardware and application configuration for these controllers are created using the software tool PNOZmulti Configurator. Once the configuration is completed, it is loaded onto a program memory and inserted into the base unit.

A notable feature of the PNOZmulti 2 controllers is the ability to simulate the configuration offline prior to commissioning. This eliminates the need for physical hardware during the testing and setup phases, streamlining the deployment process and reducing potential risks associated with on-site commissioning.



Manufacturer information

Pilz is a leading German automation technology company specializing in safety and control systems. Established in 1948, Pilz offers innovative solutions for industrial automation, including safety sensors, programmable logic controllers (PLCs), and software. Renowned for their expertise in machinery safety, Pilz serves diverse industries, ensuring efficient, reliable, and secure automation solutions worldwide.
