772143 | Pilz | Input/Output Module

Description

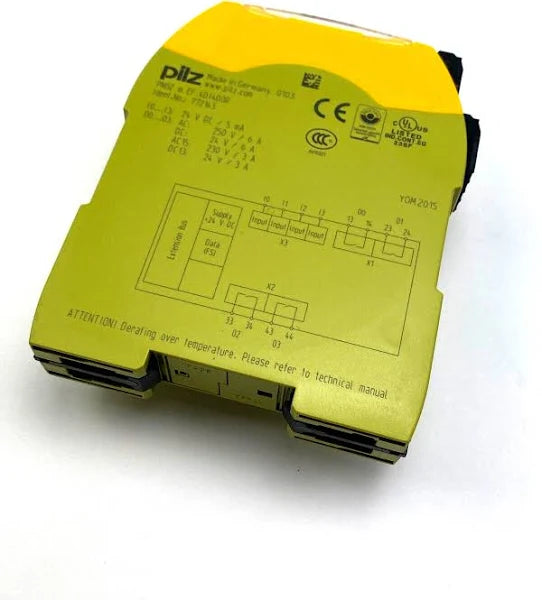

The Pilz PNOZ m EF Series Input/Output Module, specified as the "PNOZmulti 2 Safe Input/Relay Output Module," is an expansion module designed to integrate with a base unit from the PNOZmulti 2 configurable control system. This module features 4 safe inputs and 4 safe relay outputs, offering flexibility and functionality for diverse applications.

The PNOZ m EF 4DI4DOR expansion module ensures reliable safety performance, providing protection levels up to PLe of EN ISO 13849-1 and up to SIL CL 3 of EN IEC 62061, depending on the specific application requirements. It operates at a voltage of 24 V dc, ensuring compatibility with standard industrial power systems.

With its 4 inputs and 4 relay outputs, this module serves as a crucial component in safety-critical systems, facilitating safe control and monitoring of machinery and processes. It seamlessly integrates with the PNOZmulti 2 control system, enhancing its functionality and safety features.

Technical Specifications

Information About 772143

The Pilz PNOZ m EF Series Input/Output Module, designated as PNOZ-M-EF-4DI4DOR, features 4 inputs and 4 outputs, operating at a supply voltage of 24 V dc. It is specifically designed for integration with the PNOZmulti 2 Safe Input/Relay Output Module.

The PNOZ-M-EF-4DI4DOR expansion module is engineered to seamlessly interface with a base unit from the PNOZmulti 2 configurable control system. It facilitates 4 safe inputs and 4 safe relay outputs, ensuring versatile application compatibility.

Notably, the module provides robust safety features, offering protection levels up to PLe as per EN ISO 138491 standards. Furthermore, it adheres to SIL CL 3 requirements outlined in EN IEC 62061, enhancing operational safety in diverse industrial environments.

The integration of this module into existing control systems enables efficient and reliable automation processes. Its compact design and DIN Rail mounting style ensure straightforward installation and integration within industrial settings.

Equipped with screw terminals, the PNOZ-M-EF-4DI4DOR module facilitates secure and dependable connections, minimizing the risk of operational disruptions. Its adherence to stringent safety standards underscores its suitability for critical applications requiring reliable safety functionalities.

Manufacturer information

Pilz is a leading German automation technology company specializing in safety and control systems. Established in 1948, Pilz offers innovative solutions for industrial automation, including safety sensors, programmable logic controllers (PLCs), and software. Renowned for their expertise in machinery safety, Pilz serves diverse industries, ensuring efficient, reliable, and secure automation solutions worldwide.
