772170 | Pilz Configurable Control System Controller, PNOZmulti 2, Motion Monitoring Module
- Regular price
- $865.00
- Sale price
- $865.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 772170
Description

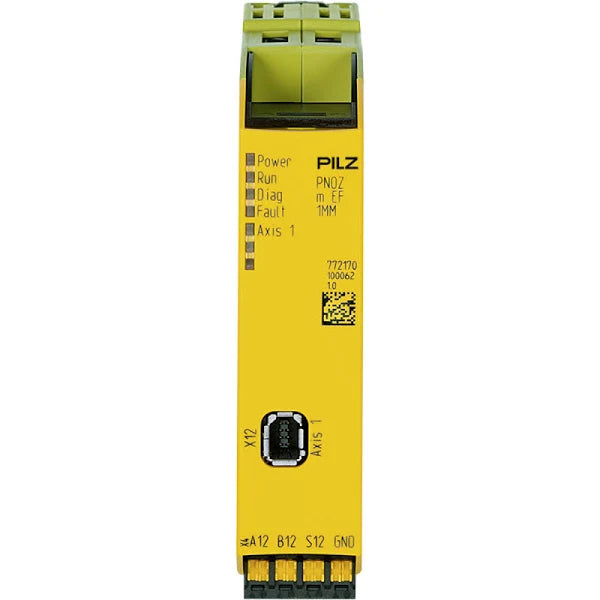

The Pilz 772170 is a motion monitoring expansion module designed for use with the PNOZmulti 2 configurable safety system. Operating on 24 V DC and providing dedicated digital inputs, it enables safe supervision of single-axis movement in industrial machinery. Its compact IP20 module design mounts directly on DIN rail for efficient integration into safety control architectures.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pilz |
| Category | Machine Parts |
| Part Number | 772170 |
| Subcategory | Nut/Bolt/Rod/Washer |
| Range | PNOZmulti 2 |
| Series | PNOZ m EF |
| Type | Motion Monitoring Module |
| For Use With | PNOZmulti 2 systems |
| Supply Voltage | 24 V DC |
| Digital Inputs | 2 (proximity switch compatible) |
| Input High Signal Level | +11 to +30 V |
| Input Low Signal Level | 0 to +3 V |
| Encoder Interface | 8-pin mini-IO (incremental encoder) |
| Mounting Style | DIN Rail |
| IP Rating | IP20 |
| Ambient Temperature Range | 0 to 60°C |
| Dimensions | 101.4 × 22.5 × 111 mm |
| Module Type Code | 00E3h |
| Control System Integration | Plug-in expansion for PNOZmulti 2 |
Information About 772170
The 772170 module is part of the Pilz PNOZmulti 2 family, designed to extend safety functionality in configurable control systems. Built as the PNOZ m EF 1MM variant, it features two digital inputs and an 8-pin mini-IO interface for incremental encoder signals, supporting precise and reliable motion monitoring. The module connects to a PNOZmulti 2 base unit, receiving power and system communication through the backplane connector. It is typically used to monitor speed, position, or standstill conditions on a single axis within industrial applications requiring safe motion supervision.
Key Features:
- PNOZmulti 2 expansion module: Designed specifically for use with PNOZmulti 2 base units.
- 1-axis motion monitoring: Supports safe speed or position monitoring applications.
- Dual digital inputs: Accepts +11 to +30 V for logic high and 0 to +3 V for logic low.
- Incremental encoder interface: Includes an 8-pin mini-IO connector for encoder feedback.
- 24 V DC module supply: Powered directly from the base unit backplane.
- Compact DIN rail housing: Slim 22.5 mm width minimizes control panel space.
- IP20 protection: Suitable for installation inside control cabinets.
- Industry-rated temperature range: Operates reliably from 0 to 60°C.
The 772170 delivers the reliability and precision required for safe motion monitoring within configurable safety control systems.
