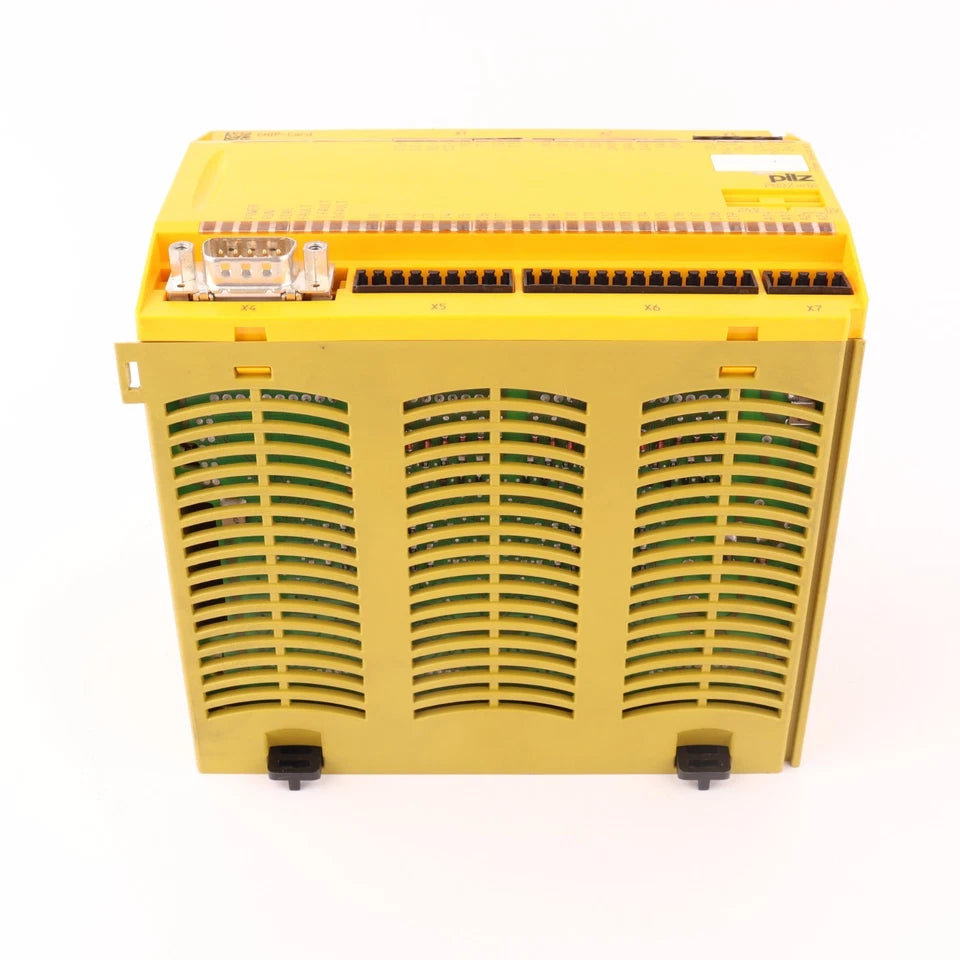

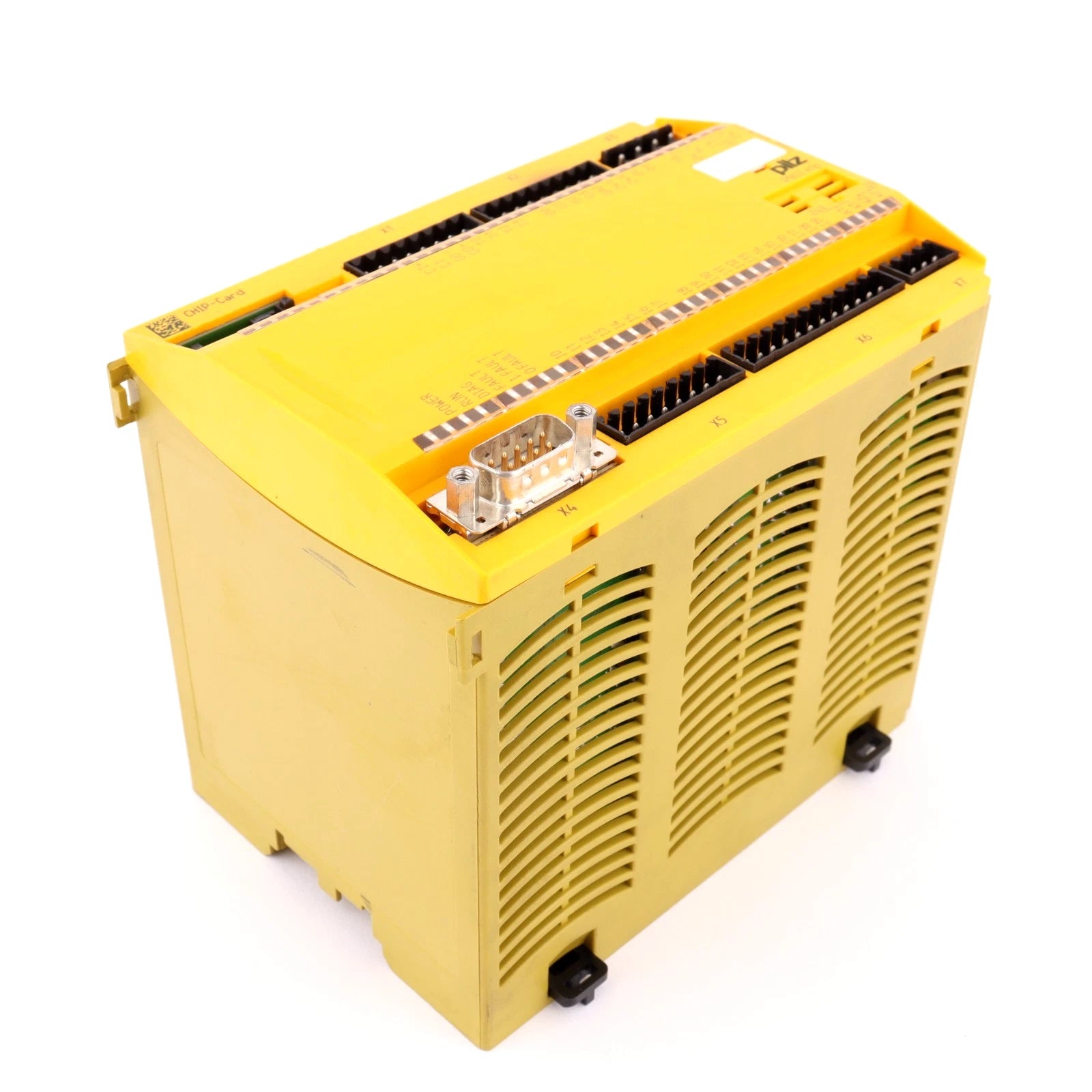

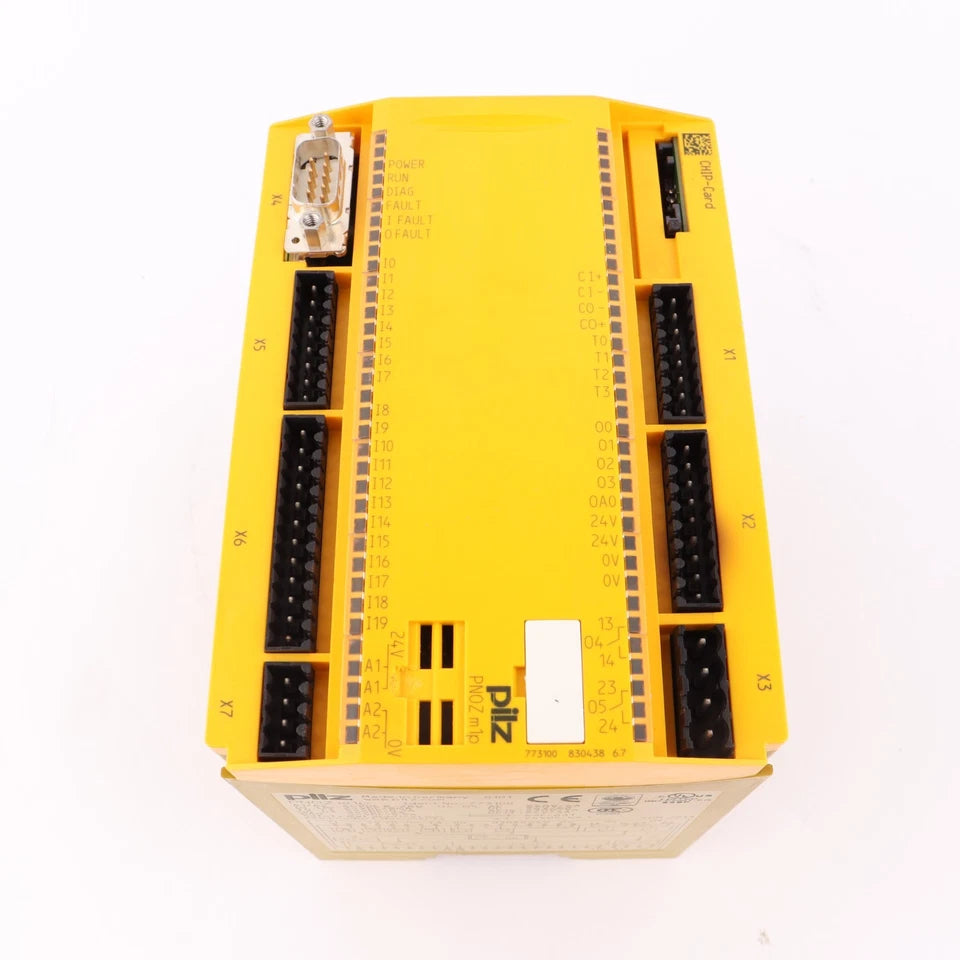

773100 | Pilz PNOZ M0P Safety Controller Base Unit 24VDC
- Regular price
- $427.00
- Sale price
- $427.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 773100
Description
The Pilz 773100 PNOZ M0P is a configurable safety controller base unit designed for modular machine safety applications. Operating on 24 VDC, it provides centralized processing of safety inputs and outputs for reliable control of safety-related functions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pilz |
| Category | Safety Controllers |
| Part Number | 773100 |
| Subcategory | Safety Controller Base Units |
| Series | PNOZmulti Classic |
| Supply Voltage | 24 VDC |
| Type of Supply | DC |
| Safe Digital Inputs | 20 |
| Safe Semiconductor Outputs | 4 |
| Safe Relay Outputs | 2 |
| Max Contact Rating AC-1 | 240 VAC, 6 A |
| Max Contact Rating DC-1 | 24 VDC, 6 A |
| Electrical Connection | Screw terminals / spring-loaded terminals |
| Mounting Type | DIN rail |
| Operating Temperature | 0…60°C |
| Housing Width | 135 mm |
| Housing Height | 94 mm |
| Housing Depth | 121 mm |
| Weight | 1.1 lb (approx. 500 g) |
Information About 773100
The 773100 is part of the Pilz PNOZmulti Classic safety controller platform, developed to provide flexible and scalable safety logic for industrial machinery. As a base unit, it serves as the core of the safety system, processing input signals from safety devices and controlling safe outputs accordingly. The controller supports expansion modules, allowing the system to be tailored to specific machine safety requirements. Its robust design and standardized terminal connections make it suitable for long-term use in industrial control cabinets.
Key Features
- PNOZmulti Classic Base Unit: Acts as the central controller for configurable machine safety logic.
- High Input Capacity: Supports up to 20 safe digital inputs for monitoring emergency stops, guards, and safety sensors.
- Mixed Safe Outputs: Combines semiconductor and relay outputs to accommodate different actuator and signaling requirements.
- 24 VDC Low-Voltage Operation: Compatible with standard industrial control power systems.
- Expandable Architecture: Allows additional PNOZmulti expansion modules to be added for increased functionality.
- DIN Rail Mounting: Enables straightforward installation and replacement within control panels.
- Industrial-Grade Construction: Designed for reliable operation across a wide ambient temperature range.
The 773100 delivers the reliability and precision required for configurable safety control in modern industrial automation systems.
