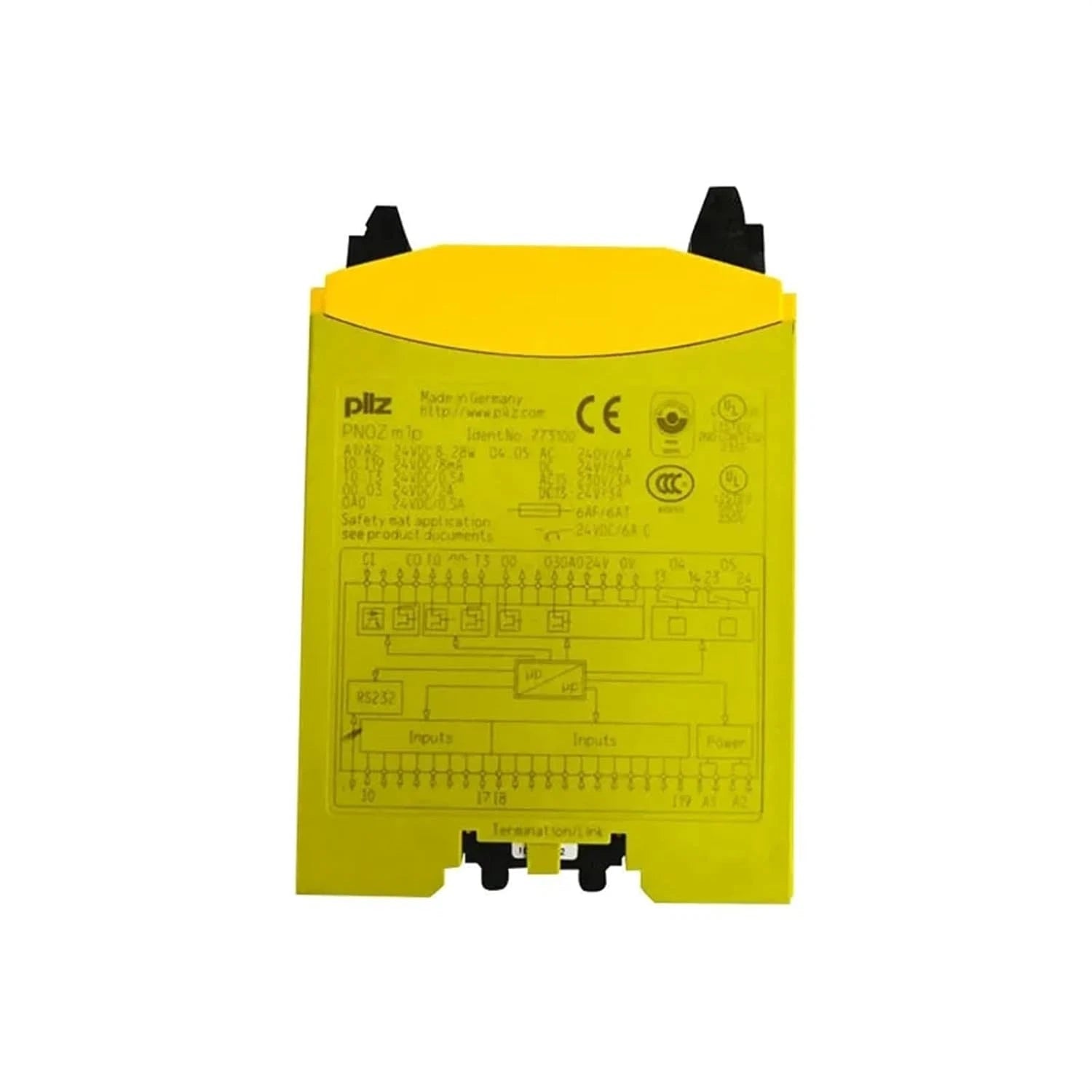

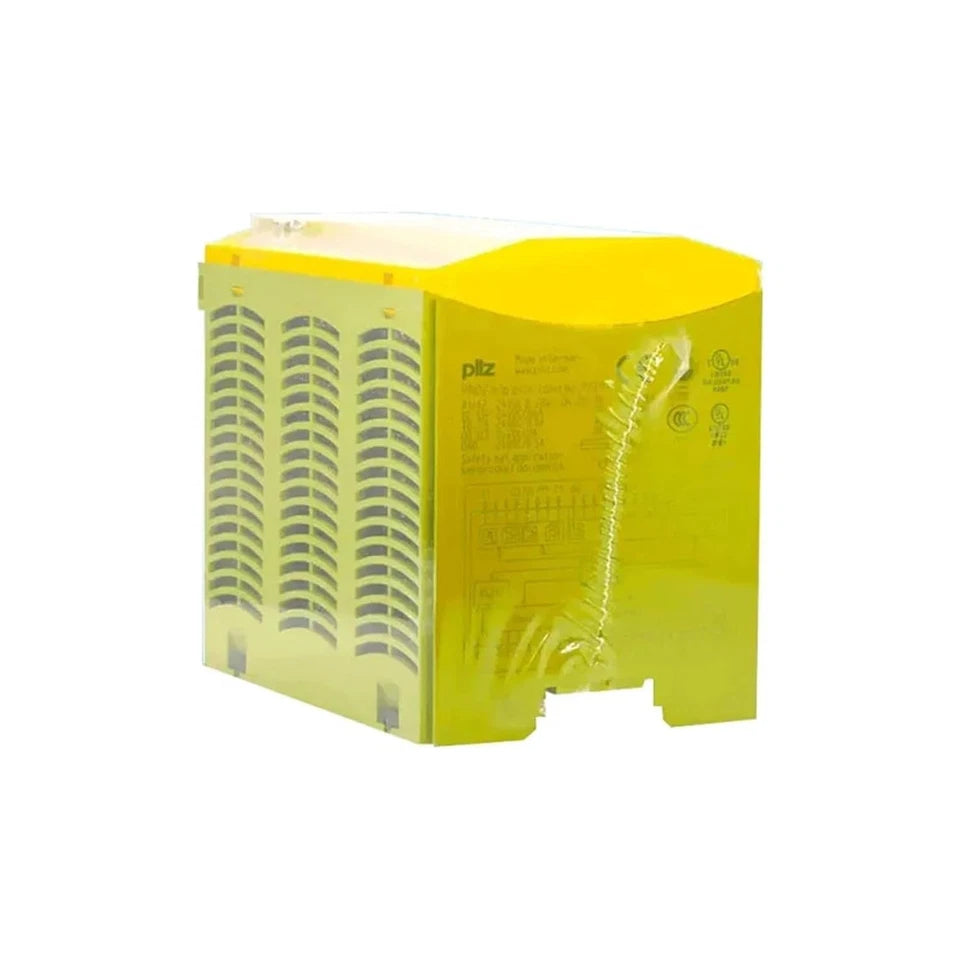

773110 | Pilz Safety Relay 24 VDC System And Output Supply
- Regular price
- $549.00
- Sale price
- $549.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 773110
Description
The Pilz 773110 safety relay is a DIN-rail mounted control device designed for reliable safety-related applications using a 24 VDC supply. It supports separated system and output supplies with potential isolation to ensure stable and secure operation in industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pilz |
| Category | Safety Relays |
| Part Number | 773110 |
| Subcategory | Safety Control Relays |
| Relay Type | Safety relay |
| System Supply (U1) | 24 V DC |
| Output Supply (U2) | 24 V DC |
| Potential Isolation U2 | Yes |
| Supply Voltage Type | DC |
| Ambient Temperature | 0 to +60 °C |
| Humidity Rating | 93% RH at 40 °C |
| Connection Type | Screw terminal / spring-loaded terminal |
| Conductor Size (with ferrule) | 24–16 AWG |
| Conductor Size (without ferrule) | 24–12 AWG |
| Mounting | DIN rail |
| Dimensions (H x W x D) | 94 x 135 x 121 mm |
| Weight | 499 g |
Information About 773110
The 773110 is part of the Pilz safety relay portfolio designed for dependable safety control in fixed industrial installations. It features separate system and safety output power supplies, allowing flexible power distribution and improved electrical stability. Potential isolation between the output supply and internal electronics enhances protection against interference and wiring faults. The device is intended for control cabinet installation and supports both screw and spring-loaded terminals for versatile wiring options.
Key Features
- Dual Power Supply Concept: Separate 24 VDC system supply and safety output supply support stable operation and flexible system design.
- Potentially Isolated Output Supply: Electrical isolation of U2 improves safety integrity and reduces the risk of fault propagation.
- DIN Rail Mounting: Designed for standard DIN rail installation in industrial control panels.
- Flexible Terminal Options: Supports both screw and spring-loaded terminals for secure and service-friendly wiring.
- Wide Conductor Compatibility: Accommodates conductor sizes from 24 to 16 AWG with ferrules and up to 12 AWG without ferrules.
- Industrial Environmental Rating: Suitable for continuous operation in ambient temperatures from 0 to 60 °C with high humidity tolerance.
The 773110 delivers the reliability and precision required for safety control and power distribution in industrial safety relay applications.
