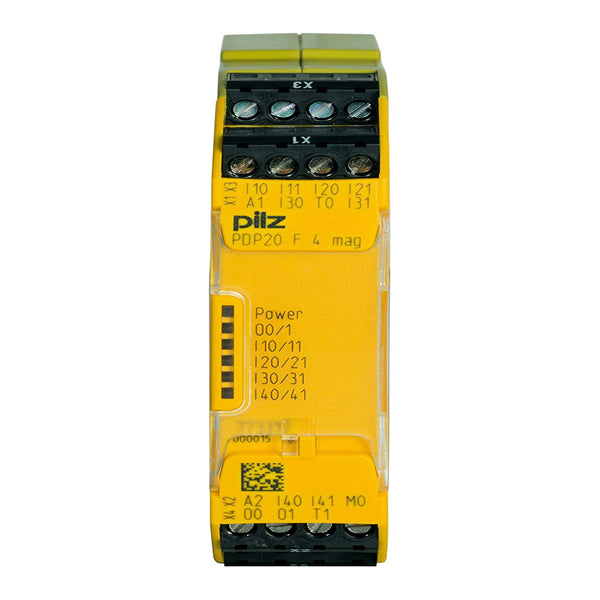

773310 | Pilz PDP20 F 4 Mag Safety Interface Module 24VDC
- Regular price
- $849.00
- Sale price
- $849.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 773310
Description
The Pilz 773310 PDP20 F 4 mag is a decentralized safety interface module designed for series connection of contact-based safety sensors. Operating on 24 VDC, it enables reliable acquisition of multiple safety signals with reduced wiring effort in machine safety systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pilz |
| Category | Safety Interface Modules |
| Part Number | 773310 |
| Subcategory | Decentralized Safety I/O Modules |
| Product Series | PDP20 |
| Module Type | Decentralized interface module |
| Supply Voltage | 24 VDC |
| Power Consumption | 3.5 W |
| Digital Inputs | 8 |
| Sensor Connection Type | Contact-based safety sensors |
| Series Connection Capability | Up to 4 sensors |
| Communication Type | Safety-related decentralized interface |
| Mounting | DIN rail |
| Application | Machine safety signal acquisition |
| Weight | 0.25 lb |
Information About 773310
The 773310 is part of Pilz’s PDP20 safety interface family, developed to simplify wiring and diagnostics in safety-related automation systems. It allows multiple contact-based safety sensors to be connected in series while maintaining reliable signal evaluation. By decentralizing input processing, the module reduces control cabinet wiring complexity and installation time. Its compact design and low power consumption make it suitable for space-constrained industrial environments.
Key Features
- Decentralized Safety Interface Design: Enables distributed connection of safety sensors close to the machine, reducing cabling and installation effort.
- Support for Series-Connected Sensors: Allows up to four contact-based safety sensors to be connected in series without compromising safety monitoring.
- Eight Digital Safety Inputs: Provides flexible acquisition of multiple safety signals within a single compact module.
- 24 VDC Operation: Compatible with standard industrial safety control power supplies.
- Low Power Consumption: Operates at just 3.5 W, supporting energy-efficient safety system design.
- Compact and Lightweight Housing: Minimizes space requirements and mechanical load when mounted in control panels or machine frames.
- DIN Rail Mounting: Supports quick installation and easy replacement in industrial environments.
The 773310 delivers the reliability and precision required for decentralized safety signal acquisition in modern machine safety architectures.
