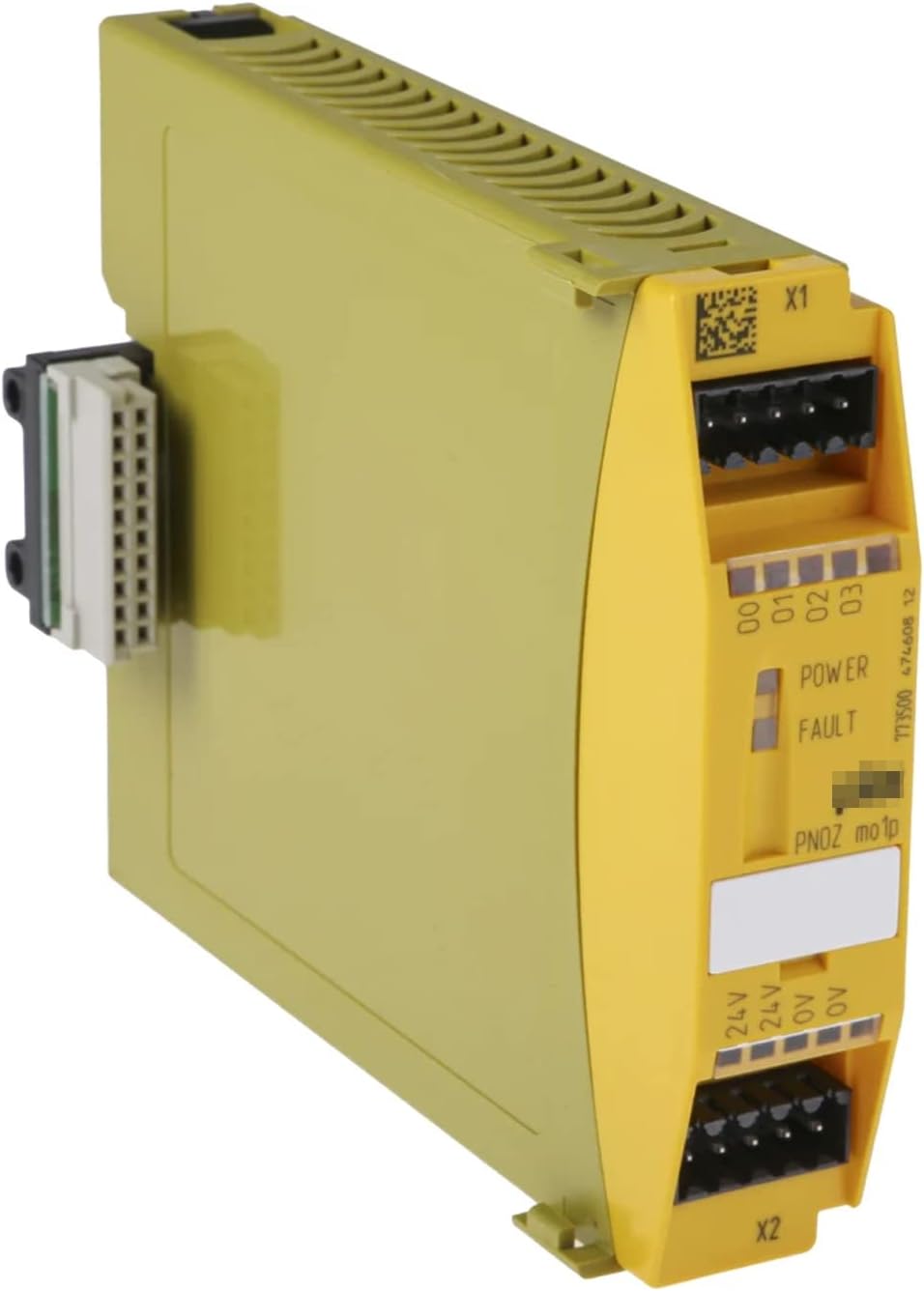

773500 | Pilz PNOZ Mo1p 4 So Safety Relay Expansion Module 24VDC
- Regular price
- $397.00
- Sale price
- $397.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 773500
Description
The Pilz 773500 is a safety relay expansion module designed to extend safety output capability within Pilz PNOZ modular safety systems. Operating on 24 VDC, it provides four fail-safe semiconductor outputs for reliable signal switching in safety-related control circuits.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pilz |
| Category | Safety Relays |
| Part Number | 773500 |
| Subcategory | Safety Relay Expansion Modules |
| Series | PNOZ M |
| Module Type | Expansion module |
| Supply Voltage | 24 VDC |
| Coil Voltage | 24 VDC |
| Number of Outputs | 4 |
| Output Type | Semiconductor, positive-switching |
| Output Configuration | Single pole |
| Output Current Rating | 2 A |
| Power Consumption | 2.5 W |
| Safety Category | Category 3 |
| Mounting | DIN rail |
| Terminal Type | Screw terminals / spring-loaded terminals |
| Operating Temperature | 0…60°C |
| Dimensions | 22.5 × 94 × 121 mm |
| Weight | 0.35 lb (160 g) |
Information About 773500
The 773500 is part of the Pilz PNOZ M modular safety system, designed to expand the number of safe outputs in machine safety applications. As an expansion module, it works in conjunction with a PNOZ multi base unit, adding four semiconductor safety outputs without requiring additional logic configuration. The module supports fail-safe, positive-switching outputs suitable for driving downstream safety-related devices. Its slim 22.5 mm housing enables high-density DIN rail installation in compact control panels.
Key Features
- PNOZ M Expansion Module: Extends safety output capability when used with compatible Pilz PNOZ multi base units.
- Four Semiconductor Safety Outputs: Provides fail-safe, positive-switching digital outputs for reliable safety signal distribution.
- 24 VDC Operation: Designed for standard low-voltage industrial safety control systems.
- Category 3 Safety Rating: Supports safety-related control systems requiring redundant architecture and fault detection.
- Compact DIN Rail Design: Narrow 22.5 mm width allows efficient use of control cabinet space.
- Flexible Terminal Connections: Supports screw and spring-loaded terminals for secure and vibration-resistant wiring.
- Maintenance-Free Operation: Solid-state output design reduces mechanical wear and long-term maintenance needs.
The 773500 delivers the reliability and precision required for expanding safe output functions in modular machine safety systems.
