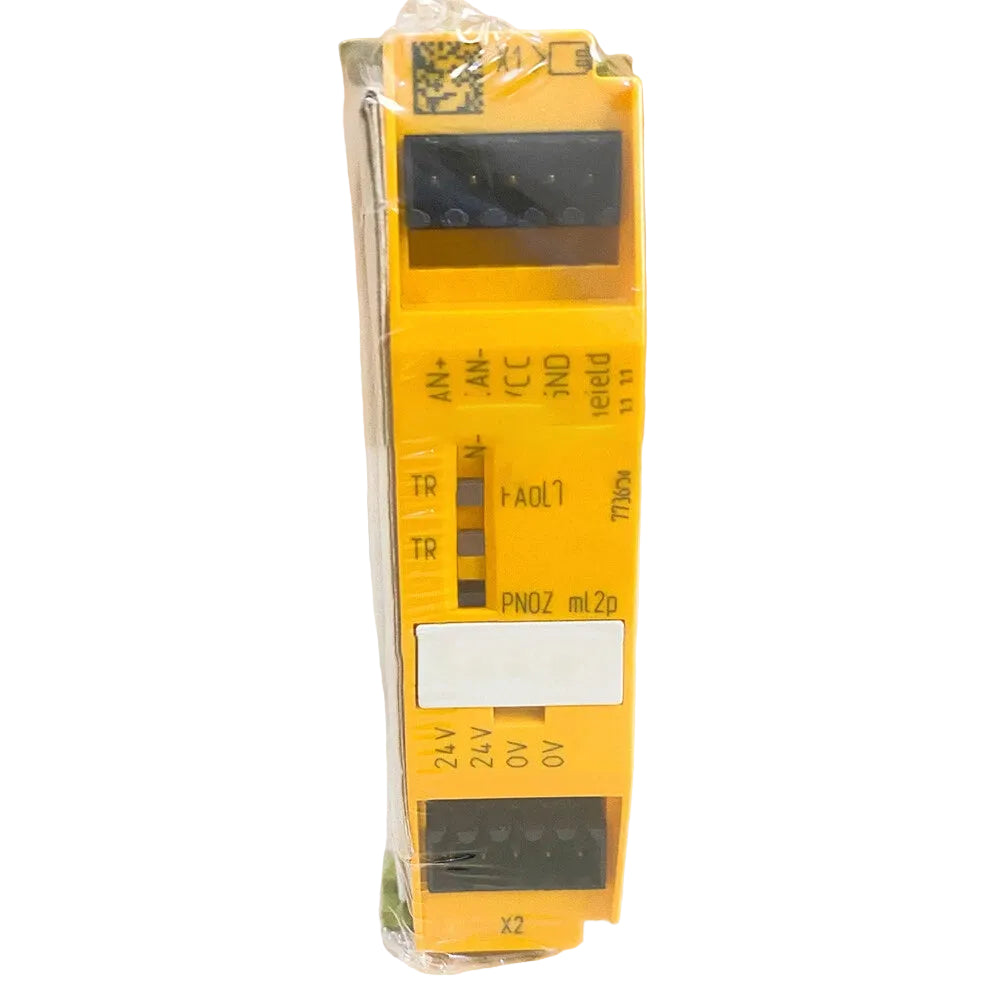

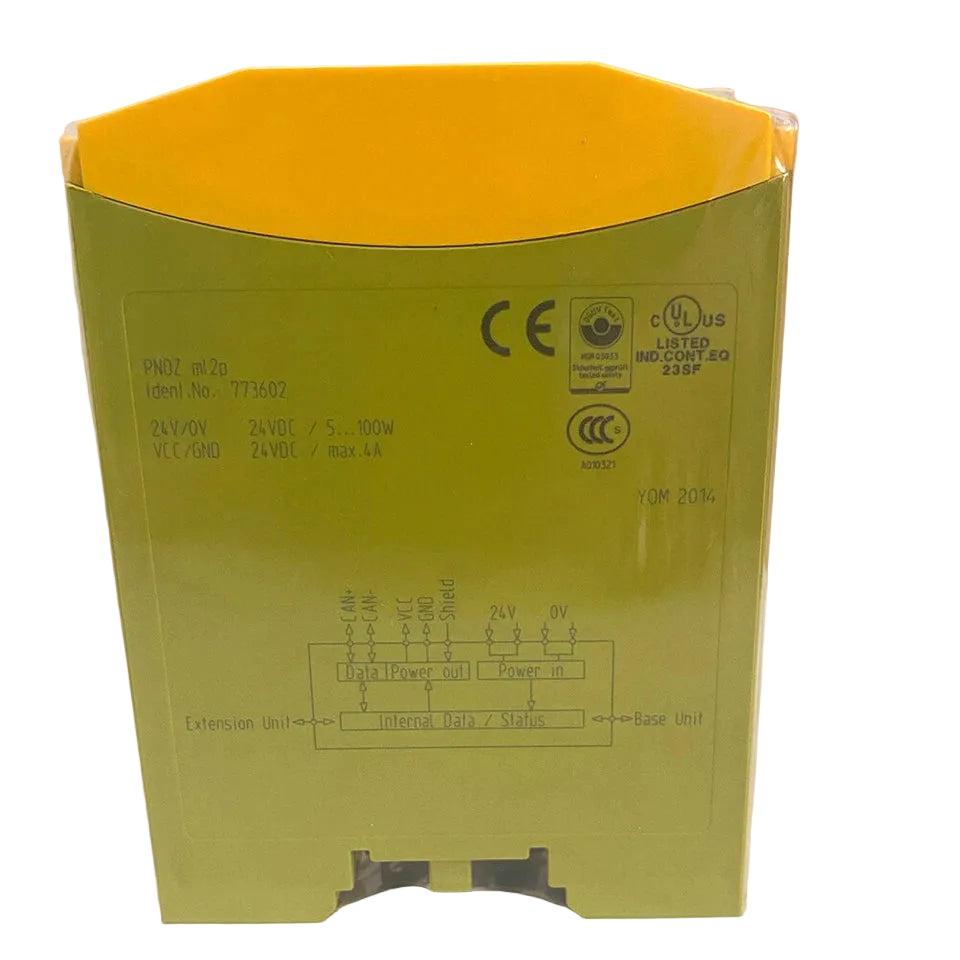

773602 | Pilz PNOZ ml2p Safe Link PDP Connection Module For PNOZmulti Classic
- Regular price
- $1,525.00
- Sale price
- $1,525.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 773602
Description
The Pilz 773602 connection module is a failsafe Safe Link PDP unit designed for decentralized safety communication within PNOZmulti Classic systems. It enables CAN-based series connection of multiple PDP67 devices while providing reliable power distribution and safety data exchange.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pilz |
| Category | Safety Controllers |
| Part Number | 773602 |
| Subcategory | Safety Communication Modules |
| Product Series | PNOZmulti Classic |
| Module Type | Safe Link PDP connection module |
| Communication Protocol | CAN-based Safe Link |
| Supported Devices | Up to 4 decentralised PDP67 devices |
| Supply Voltage | 24 V DC |
| Power Consumption | 101 W |
| Supply Current | 4 A |
| Version | Standard (for industrial environments) |
| Ambient Temperature | 0 to +60 °C |
| Width | 22.5 mm |
| Height | 94.0 mm |
| Depth | 121.0 mm |
| Weight | 151 g |
Information About 773602
The 773602 is part of the Pilz PNOZmulti Classic safety control system and serves as a Safe Link PDP connection module for decentralized safety architectures. It is designed to connect up to four PDP67 decentralized devices via a CAN-based Safe Link interface, enabling series connection and centralized safety data exchange. The module provides failsafe communication and power supply for connected devices, supporting distributed machine safety concepts. Its slim housing allows efficient installation in control cabinets while maintaining robust performance in industrial environments.
Key Features
- PNOZmulti Classic Integration: Designed specifically for use within PNOZmulti Classic safety controller systems to extend decentralized safety functionality.
- Safe Link PDP Communication: Utilizes CAN-based Safe Link technology to ensure failsafe data transmission between connected safety devices.
- Support For Decentralized Devices: Enables connection of up to four PDP67 decentralized modules in a series configuration.
- Integrated Power Distribution: Supplies up to 4 A to connected PDP devices, reducing the need for external power components.
- Failsafe Design: Ensures reliable safety communication suitable for distributed emergency stop and safety circuit architectures.
- Compact Module Housing: Slim 22.5 mm width supports space-efficient control cabinet layouts.
- Industrial Environmental Rating: Designed for continuous operation in ambient temperatures from 0 to 60 °C.
The 773602 delivers the reliability and precision required for decentralized safety communication within PNOZmulti Classic automation systems.
