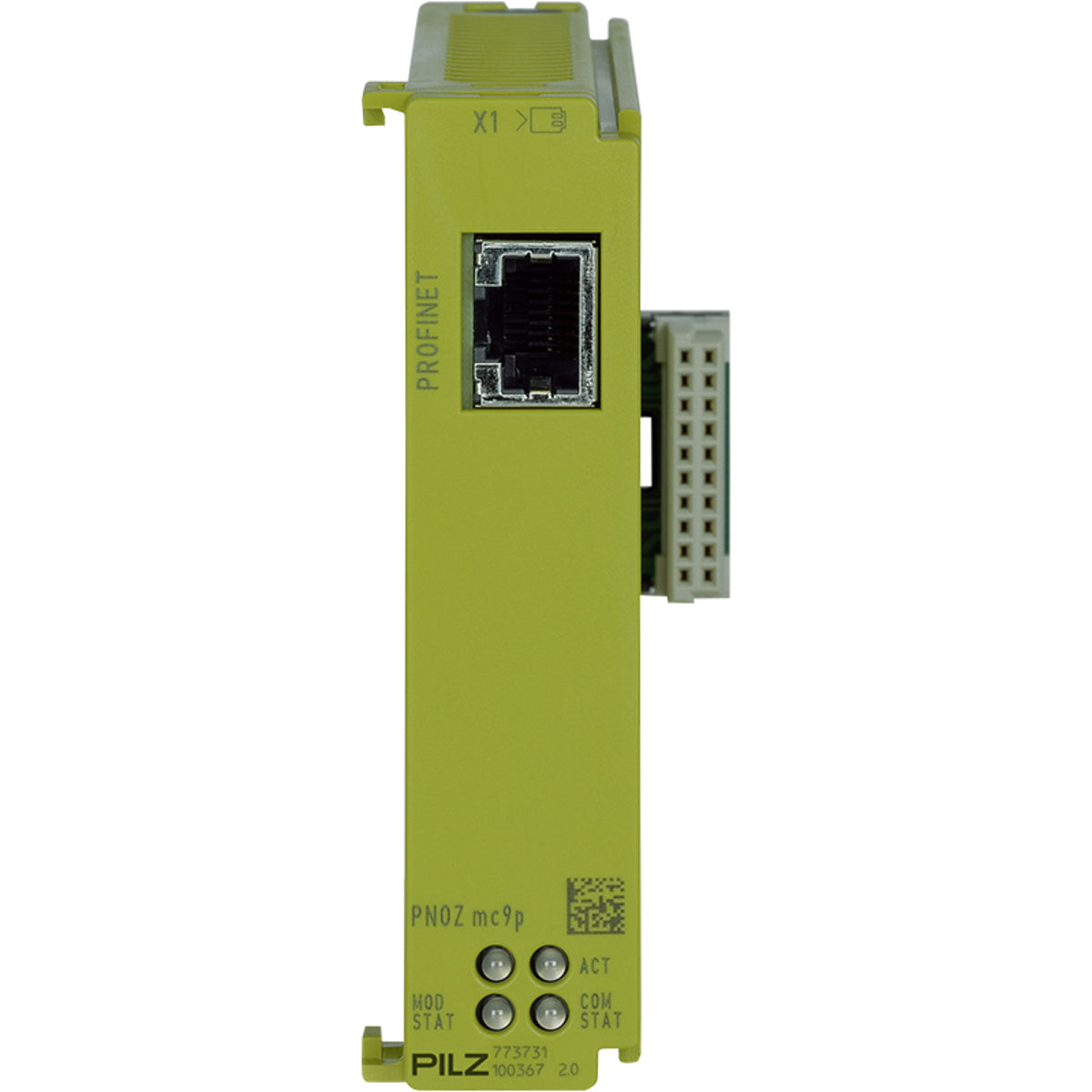

773731 | Pilz PNOZ mc9p PROFINET IO Communication Module
- Regular price
- $4,279.00
- Sale price
- $4,279.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 773731
Description
The Pilz 773731 communication module is designed for PROFINET IO integration within PNOZmulti Classic safety control systems. It enables reliable exchange of safety-related and standard data between the controller and higher-level automation networks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pilz |
| Category | Safety Controllers |
| Part Number | 773731 |
| Subcategory | Communication Modules |
| Product Series | PNOZmulti Classic |
| Model | PNOZ mc9p |
| Module Type | Communication module |
| Fieldbus Interface | PROFINET IO |
| Fieldbus Device Type | Slave |
| Transmission Rate | 100 MBit/s |
| Duplex Mode | Full / Half duplex |
| Fieldbus Connection | RJ45 |
| Galvanic Isolation | Yes |
| Test Voltage | 500 V AC |
| Virtual Inputs | 24 / 128 Bit |
| Virtual Outputs | 24 / 128 Bit |
| Module Supply | Via base unit |
| Voltage Type | DC |
| Voltage Tolerance | -2% / +2% |
| Ambient Temperature | 0 to +60 °C |
| Dimensions (H x W x D) | 94 x 22.5 x 114 mm |
| Weight | 135 g |
Information About 773731
The 773731 is part of the Pilz PNOZmulti Classic system and functions as a PROFINET IO communication module for fieldbus-based automation architectures. It allows the safety controller to operate as a PROFINET IO slave, exchanging cyclic data with PLCs and industrial networks. The module supports configurable virtual inputs and outputs, enabling flexible mapping of safety and control signals. Galvanic isolation of the fieldbus interface enhances system robustness and protects against electrical interference.
Key Features
- PNOZmulti Classic Compatibility: Designed specifically for seamless integration into PNOZmulti Classic safety controller systems.
- PROFINET IO Communication: Enables high-speed data exchange using standard PROFINET IO protocols in industrial Ethernet networks.
- Configurable Virtual I O: Supports 24 or 128-bit virtual inputs and outputs for flexible signal mapping.
- High-Speed Data Transfer: Operates at 100 MBit/s with support for full and half duplex communication modes.
- Galvanically Isolated Interface: Improves noise immunity and protects connected systems from electrical disturbances.
- Compact Module Design: Slim 22.5 mm width allows efficient use of control cabinet space.
The 773731 delivers the reliability and precision required for PROFINET-based communication in PNOZmulti Classic safety control systems.
