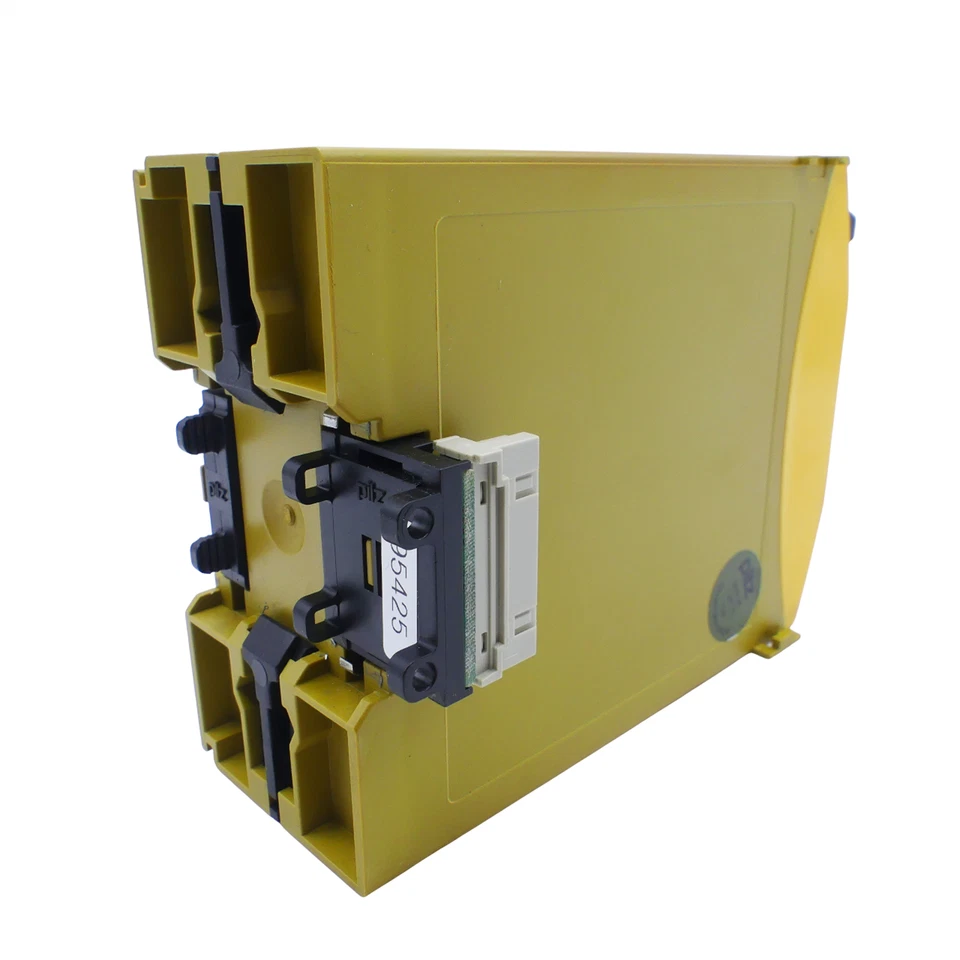

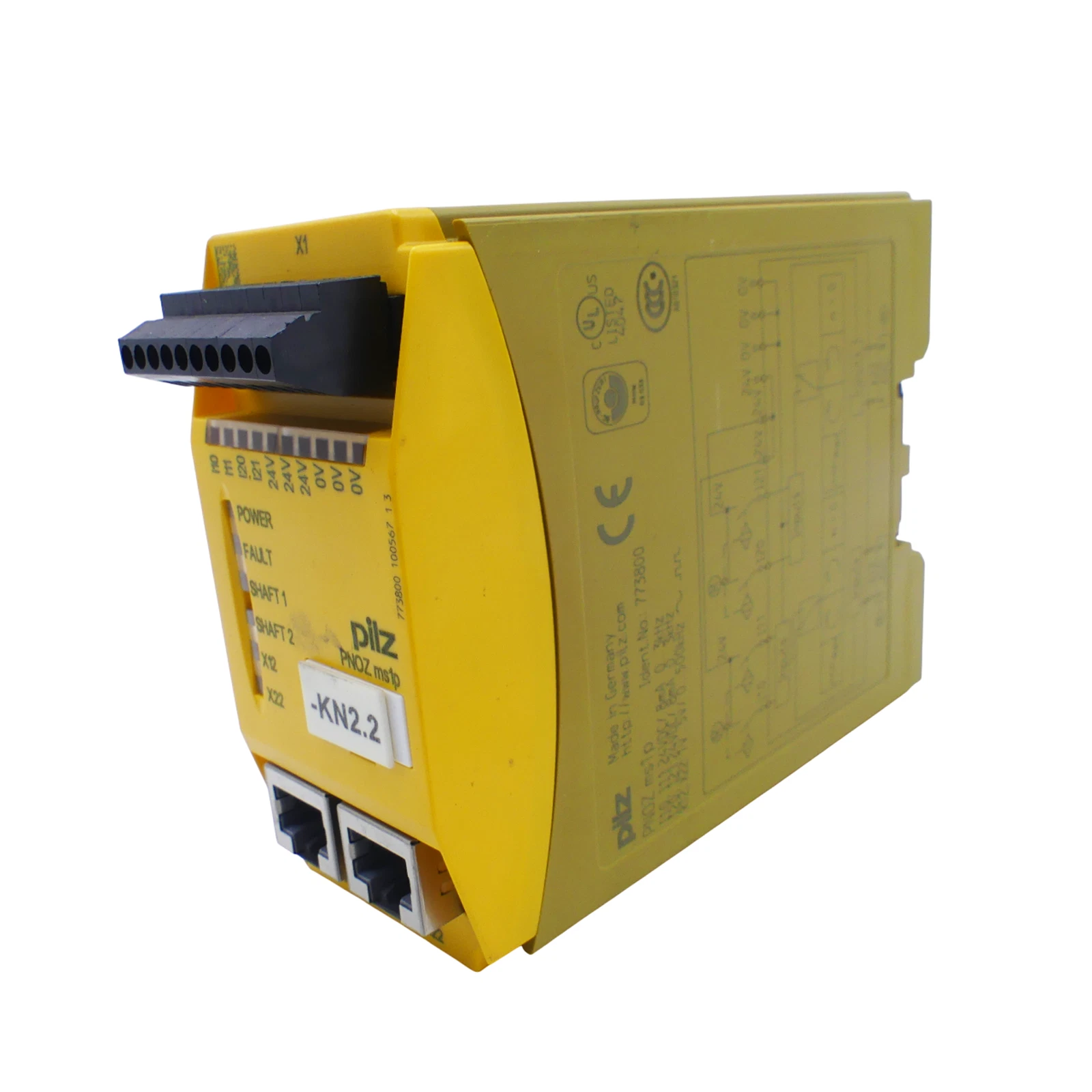

773800 | Pilz PNOZmulti Classic Motion Monitoring Expansion Module
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 773800
Description
The Pilz 773800 automation module is a failsafe expansion unit for PNOZmulti Classic systems designed for motion monitoring of two independent axes. It supports incremental encoder feedback and proximity switch inputs for precise safety-related motion evaluation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pilz |
| Category | Safety Controllers |
| Part Number | 773800 |
| Subcategory | Motion Monitoring Expansion Modules |
| Product Series | PNOZmulti Classic |
| Module Type | Failsafe motion monitoring expansion module |
| Monitored Axes | 2 |
| Encoder Inputs | 2 incremental encoders |
| Encoder Signal Types | Sin/Cos, TTL (RS422) |
| Encoder Connector | RJ45 female, 8-pin |
| Proximity Switch Inputs | 4, PNP type |
| Proximity Switch Frequency (without hysteresis) | 0.1 Hz – 3 kHz |
| Proximity Switch Frequency (with hysteresis) | 0.2 Hz – 3 kHz |
| Module Supply | Via base unit |
| Supply Voltage Type | DC |
| Voltage Tolerance | -2% / +2% |
| Ambient Temperature | 0 to +60 °C |
| Connection Type | Screw terminal / spring-loaded terminal |
| Conductor Size | 24–16 AWG |
| Dimensions (H x W x D) | 94 x 45 x 121 mm |
| Weight | 192 g |
Information About 773800
The 773800 is part of the Pilz PNOZmulti Classic safety controller platform and functions as a dedicated motion monitoring expansion module. It is designed to evaluate speed, position, and motion-related safety functions using two incremental encoders with differential Sin/Cos or TTL (RS422) signals. The module also supports four PNP proximity switches for additional motion-related inputs and monitoring flexibility. This product is at the end of its lifecycle and is no longer planned for future availability, with Pilz recommending migration to a suitable successor solution.
Key Features
- PNOZmulti Classic Expansion Module: Designed to extend PNOZmulti Classic systems with dedicated failsafe motion monitoring functionality.
- Dual-Axis Motion Monitoring: Enables independent safety monitoring of two axes for speed- and motion-related safety functions.
- Incremental Encoder Support: Accepts Sin/Cos and TTL (RS422) differential encoder signals for precise motion evaluation.
- Integrated Proximity Switch Inputs: Provides four PNP proximity switch inputs for additional motion and position detection tasks.
- Wide Frequency Monitoring Range: Supports programmable monitoring functions up to 3 kHz with or without hysteresis.
- Flexible Industrial Connections: Combines screw and spring-loaded terminals supporting conductor sizes from 24 to 16 AWG.
- Compact Control Cabinet Design: Slim 45 mm width allows efficient integration into existing PNOZmulti Classic installations.
The 773800 delivers the reliability and precision required for safety-related motion monitoring in PNOZmulti Classic automation systems.
