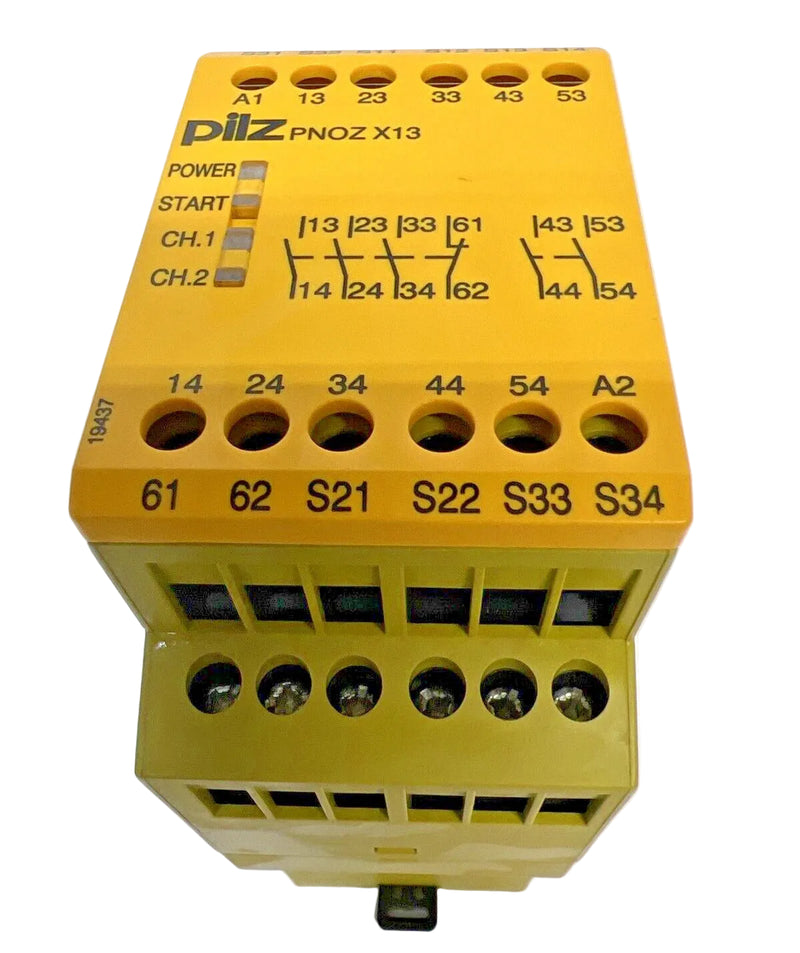

774549 | Pilz PNOZ X Safety Relay 24 VDC With 5 Normally Open Outputs
- Regular price
- $542.00
- Sale price
- $542.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 774549
Description
The Pilz 774549 safety relay is a compact standalone device designed for monitoring emergency stop circuits and safety gates in industrial machinery. Operating on a 24 VDC supply, it provides multiple safety-rated outputs to support reliable shutdown and control functions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pilz |
| Category | Safety Relays |
| Part Number | 774549 |
| Subcategory | Safety Control Relays |
| Product Series | PNOZ X Series |
| Relay Type | Standalone safety relay |
| Supply Voltage | 24 V DC |
| Power Consumption | 4.5 W |
| Input Configuration | 1- or 2-channel wiring, with or without short-circuit detection |
| Safety Outputs | 5 N/O, 1 N/C |
| Max Switching Voltage AC1 | 240 V |
| Max Switching Current AC1 | 8 A |
| Max Switching Voltage DC1 | 24 V |
| Max Switching Current DC1 | 8 A |
| Utilization Category | AC15 / DC13 per EN 60947-5-1 |
| Ambient Temperature | -10 to +55 °C |
| Humidity Rating | 93% RH at 40 °C |
| Connection Type | Integrated screw terminals |
| Conductor Size | 24–10 AWG |
| Dimensions (H x W x D) | 87 x 45 x 121 mm |
| Weight | 345 g |
Information About 774549
The 774549 is part of the Pilz PNOZ X safety relay series developed for dependable safety control in fixed industrial installations. Its narrow 45 mm housing allows space-efficient mounting in control cabinets while maintaining high electrical performance. The relay supports both single-channel and dual-channel safety circuits, with optional detection of shorts across contacts to enhance diagnostic coverage. Designed for emergency stop and safety gate monitoring, it integrates seamlessly into standard machine safety architectures operating on 24 VDC.
Key Features
- PNOZ X Series Platform: Built on Pilz’s proven PNOZ X architecture, ensuring consistent safety performance and standardized integration across machine safety systems.
- Flexible Safety Input Wiring: Supports both 1-channel and 2-channel configurations, with optional short-circuit detection to match different safety levels and application requirements.
- High Output Availability: Provides 5 normally open and 1 normally closed safety contacts, enabling control of multiple contactors or safety-related circuits from a single relay.
- High Switching Capacity: Safety contacts are rated up to 8 A at 240 VAC or 24 VDC, supporting direct switching of industrial loads.
- Compact Control Cabinet Design: Slim 45 mm width allows high-density installation in panels with limited space.
- Industrial Screw Terminals: Fixed screw terminals support conductor sizes from 24 to 10 AWG, ensuring secure and vibration-resistant wiring.
- Wide Environmental Tolerance: Designed for reliable operation in ambient temperatures from -10 to +55 °C with high humidity resistance.
The 774549 delivers the reliability and precision required for emergency stop circuits and safety gate monitoring in compact industrial safety control panels.
