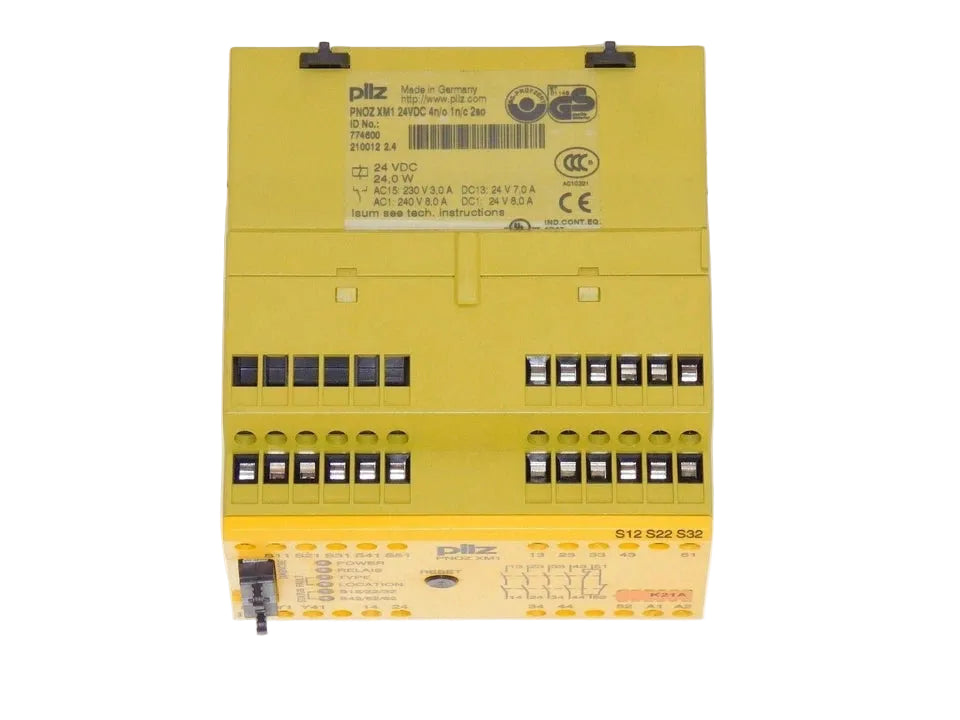

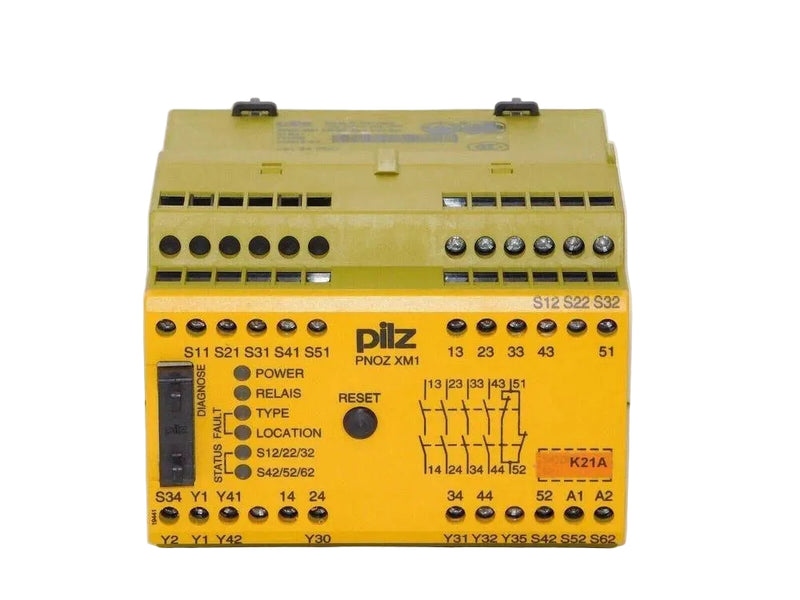

774600 | Pilz PNOZ XM1 Safety Relay 24 VDC With Semiconductor Outputs
- Regular price
- $2,147.00
- Sale price
- $2,147.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 774600
Description
The Pilz 774600 safety relay is a standalone control unit designed for advanced monitoring of emergency stop circuits and safety gates in industrial machinery. Powered by 24 VDC, it combines electromechanical safety contacts with semiconductor outputs and integrated diagnostics.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pilz |
| Category | Safety Relays |
| Part Number | 774600 |
| Subcategory | Safety Control Relays |
| Product Series | PNOZplus / PNOZ XM1 |
| Relay Type | Standalone safety relay |
| Supply Voltage | 24 V DC |
| Power Consumption | 24 W |
| Input Configuration | 1-, 2-, or 3-channel wiring with short-circuit detection |
| Safety Outputs | 4 N/O, 1 N/C |
| Semiconductor Outputs | 2 |
| Test Pulse Outputs | 5 |
| Max Switching Voltage AC1 | 240 V |
| Max Switching Current AC1 | 8 A |
| Max Switching Voltage DC1 | 24 V |
| Max Switching Current DC1 | 8 A |
| Utilization Category | AC15 / DC13 per EN 60947-5-1 |
| Max Switching Current AC15 | 3 A |
| Diagnostic Interface | Yes |
| Humidity Rating | 93% RH at 40 °C |
| Condensation | Not permitted |
| Mounting | DIN rail |
| Width | 112.5 mm |
| Weight | 1.35 lbs |
Information About 774600
The 774600 is part of the Pilz PNOZplus safety relay family, developed for complex safety applications requiring extended diagnostics and flexible input configuration. It supports one-, two-, or three-channel wiring with detection of shorts across contacts, providing high diagnostic coverage for safety-related circuits. The relay integrates both electromechanical and semiconductor outputs, allowing direct control and safe signal processing within the same device. Designed for emergency stop and safety gate monitoring, it includes a diagnostic interface to support system status monitoring and maintenance activities.
Key Features
- PNOZplus Safety Architecture: Built on the Pilz PNOZplus platform, enabling advanced diagnostics and extended safety functionality within a standalone relay.
- Multi-Channel Safety Inputs: Supports 1-, 2-, or 3-channel wiring with short-circuit detection to accommodate different safety device configurations and risk levels.
- Hybrid Output Design: Combines 4 normally open and 1 normally closed safety contacts with 2 semiconductor outputs for versatile safety signal handling.
- Integrated Test Pulse Outputs: Provides 5 test pulse outputs to support monitoring of connected safety devices and input circuits.
- Automatic Or Monitored Start: Allows configuration of restart behavior to align with machine safety requirements and operating procedures.
- Diagnostic Interface: Enables access to device status and fault information for simplified troubleshooting and system integration.
- High Switching Capacity: Safety contacts are rated up to 8 A at 240 VAC or 24 VDC, supporting direct control of industrial contactors.
The 774600 delivers the reliability and precision required for advanced emergency stop and safety gate monitoring in diagnostic-capable industrial safety systems.
