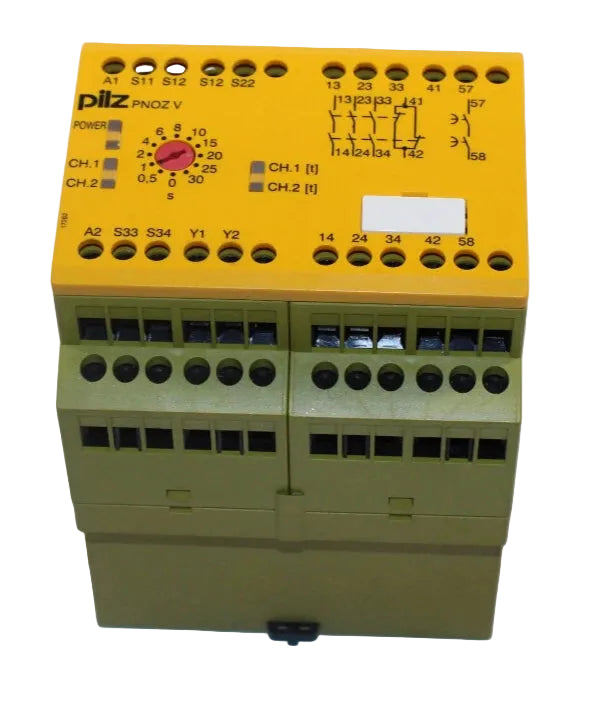

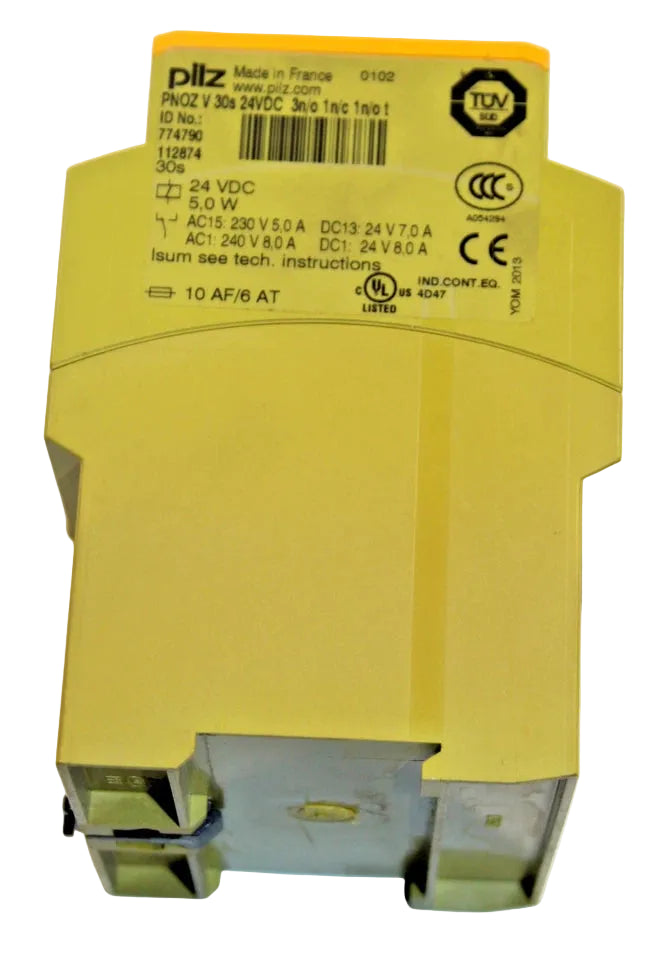

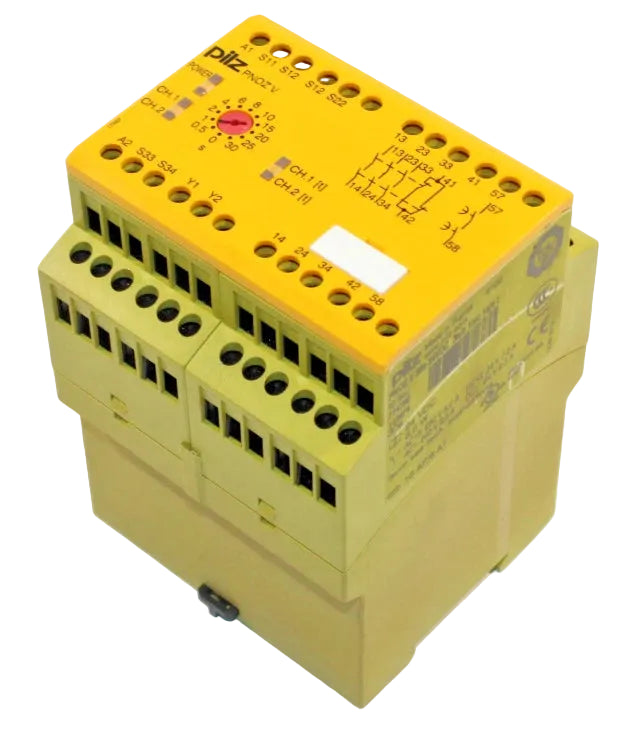

774790 | Pilz PNOZ V 30S Safety Relay 24 VDC With Time Delay Output
- Regular price
- $612.00
- Sale price
- $612.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 774790
Description
The Pilz 774790 safety relay is a standalone control unit designed for monitoring emergency stop circuits and safety gates in industrial machinery. Operating on a 24 VDC supply, it provides multiple safety-rated outputs including a configurable delay-on de-energization contact.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pilz |
| Category | Safety Relays |
| Part Number | 774790 |
| Subcategory | Safety Control Relays |
| Product Series | PNOZ X Series |
| Model | PNOZ V 30S |
| Supply Voltage | 24 V DC |
| Power Consumption | 5 W |
| Input Configuration | 1- or 2-channel wiring, no short-circuit detection |
| Safety Outputs | 3 N/O, 1 N/C, 1 N/O time-delayed |
| Delay Function | Delay-on de-energization |
| Adjustable Delay Time | 0.05 to 30 s (12 steps) |
| Max Switching Voltage AC1 | 240 V |
| Max Switching Current AC1 | 8 A |
| Max Switching Voltage DC1 | 24 V |
| Max Switching Current DC1 | 8 A |
| Utilization Category | AC15 / DC13 per EN 60947-5-1 |
| Ambient Temperature | -10 to +55 °C |
| Humidity Rating | 93% RH at 40 °C |
| Connection Type | Integrated screw terminals |
| Conductor Size | 24–10 AWG |
| Dimensions (H x W x D) | 87 x 90 x 121 mm |
| Weight | 475 g |
Information About 774790
The 774790 is part of the Pilz PNOZ X safety relay series developed for flexible and reliable safety control in fixed industrial installations. It is built with a compact housing and integrated screw terminals, allowing straightforward mounting and wiring in control cabinets. The relay supports one- or two-channel input wiring for emergency stop devices and safety gates, with selectable automatic or manual start behavior. A built-in delay-on de-energization output with 12 selectable time ranges enables controlled shutdown sequences in safety applications.
Key Features
- PNOZ X Series Design: Part of Pilz’s modular safety relay range for standardized machine safety control.
- Flexible Input Wiring: Supports 1- or 2-channel safety circuits for E-STOPs and guard monitoring.
- Multiple Safety Outputs: Provides 3 normally open, 1 normally closed, and 1 time-delayed safety contact.
- Adjustable Time Delay: Delay-on de-energization can be set from 0.05 to 30 seconds in 12 defined steps.
- Automatic Or Manual Start: Allows configuration of restart behavior based on application requirements.
- High Switching Capacity: Supports up to 8 A at 240 VAC or 24 VDC for versatile load control.
- Industrial Screw Terminals: Fixed terminals support conductor sizes from 24 to 10 AWG for secure wiring.
The 774790 delivers the reliability and precision required for emergency stop and safety gate monitoring with controlled shutdown timing.
