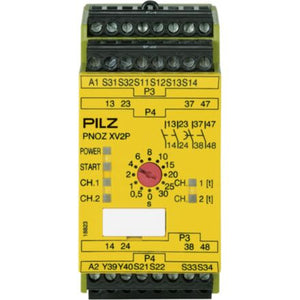

777500 | Pilz PNOZ XV2P Safety Relay 24VDC Dual Channel With Time Delay
- Regular price
- $959.00
- Sale price
- $959.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 777500
Description
The Pilz 777500 is a configurable safety relay designed for single- or dual-channel safety circuits in industrial automation systems. Operating on 24 VDC, it provides instantaneous and time-delayed safety outputs to support reliable machine safety control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pilz |
| Category | Safety Relays |
| Part Number | 777500 |
| Subcategory | Configurable Safety Relays |
| Safety Relay Series | PNOZ XV2P |
| Supply Voltage | 24 VDC (20.4…26.4 VDC) |
| Input Configuration | Single or dual-channel |
| Number of Inputs | 2 digital inputs |
| Input Voltage | 24 VDC |
| Output Configuration | 2 instantaneous NO + 2 delayed NO |
| Output Type | 2 × SPST-NO (each output with series NO contacts) |
| Output Rating | 8 A @ 24 VDC (DC-1) / 240 VAC (AC-1) |
| Time Delay Range | 0…30 s (selectable steps) |
| Start Type | Automatic / monitored start |
| Mounting | DIN rail |
| Terminal Type | Plug-in screw terminals |
| Degree of Protection | IP40 |
| Ambient Temperature | -10…+55°C |
| Width | 45 mm |
| Weight | 0.62 lb |
Information About 777500
The 777500 is part of the Pilz PNOZ XV series of configurable safety relays developed for advanced machine safety applications. It supports multiple safety categories and performance levels, including SIL1 to SIL3 and PL c to PL e, depending on wiring and configuration. The relay provides both instantaneous and adjustable time-delayed safety outputs, enabling controlled shutdown sequences. Designed for compact control panels, it features plug-in terminals and DIN rail mounting for straightforward installation and maintenance.
Key Features
- Configurable Safety Architecture: Supports single- or dual-channel wiring to meet various safety integrity and performance level requirements.
- Instantaneous and Time-Delayed Outputs: Combines immediate and delayed safety contacts for controlled stop functions and sequential shutdown logic.
- Adjustable Time Delay Function: Selectable delay settings from 0 to 30 seconds allow precise adaptation to machine safety requirements.
- High Safety Performance Levels: Supports SIL1–SIL3 and PL c–PL e applications depending on system configuration.
- Robust Output Ratings: Safety contacts rated up to 8 A for both AC and DC resistive loads.
- Compact DIN Rail Design: 45 mm housing width with plug-in screw terminals supports efficient panel layout and servicing.
- Automatic or Monitored Start: Enables flexible startup logic to match machine safety strategies.
The 777500 delivers the reliability and precision required for safety-critical control functions in industrial machinery and automation systems.
