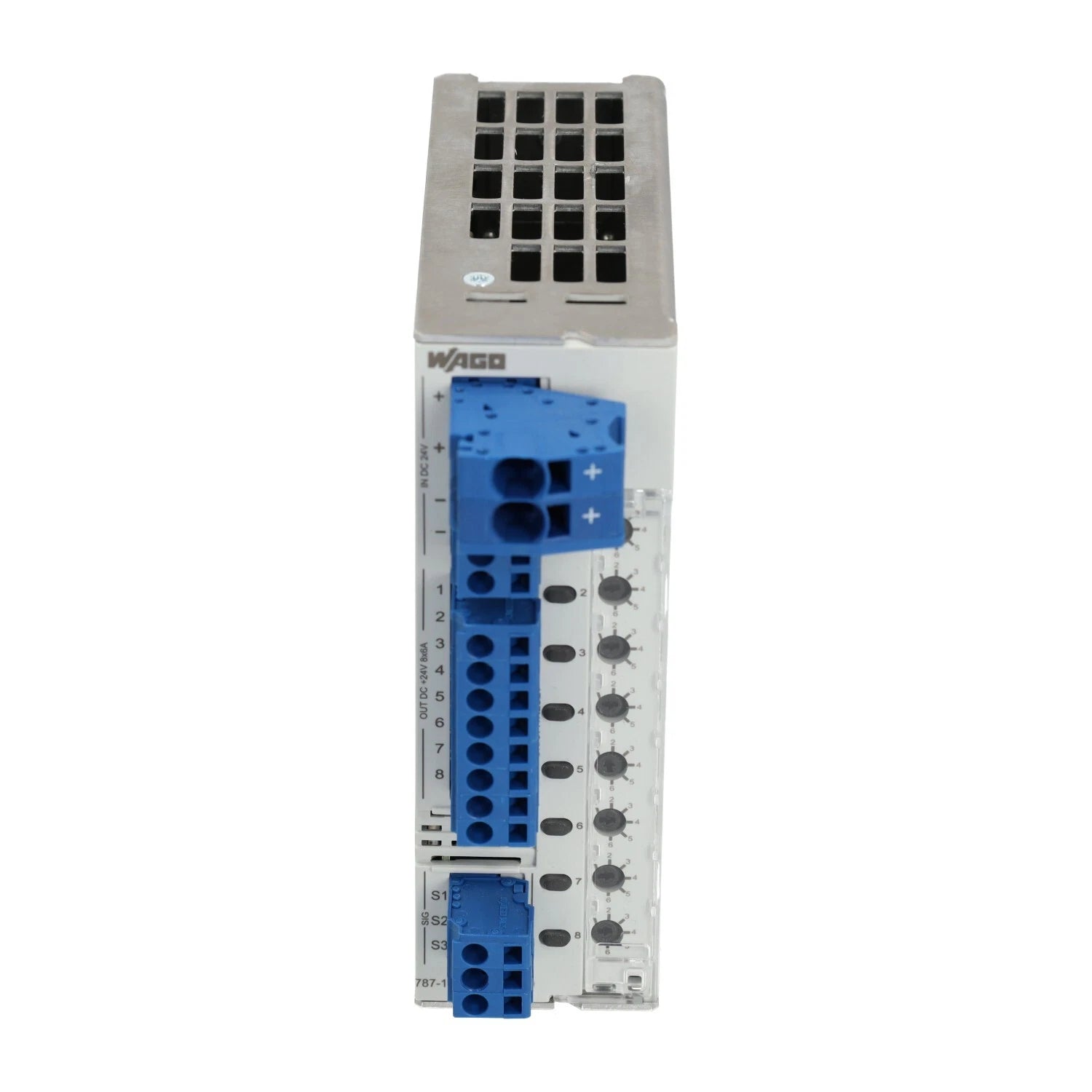

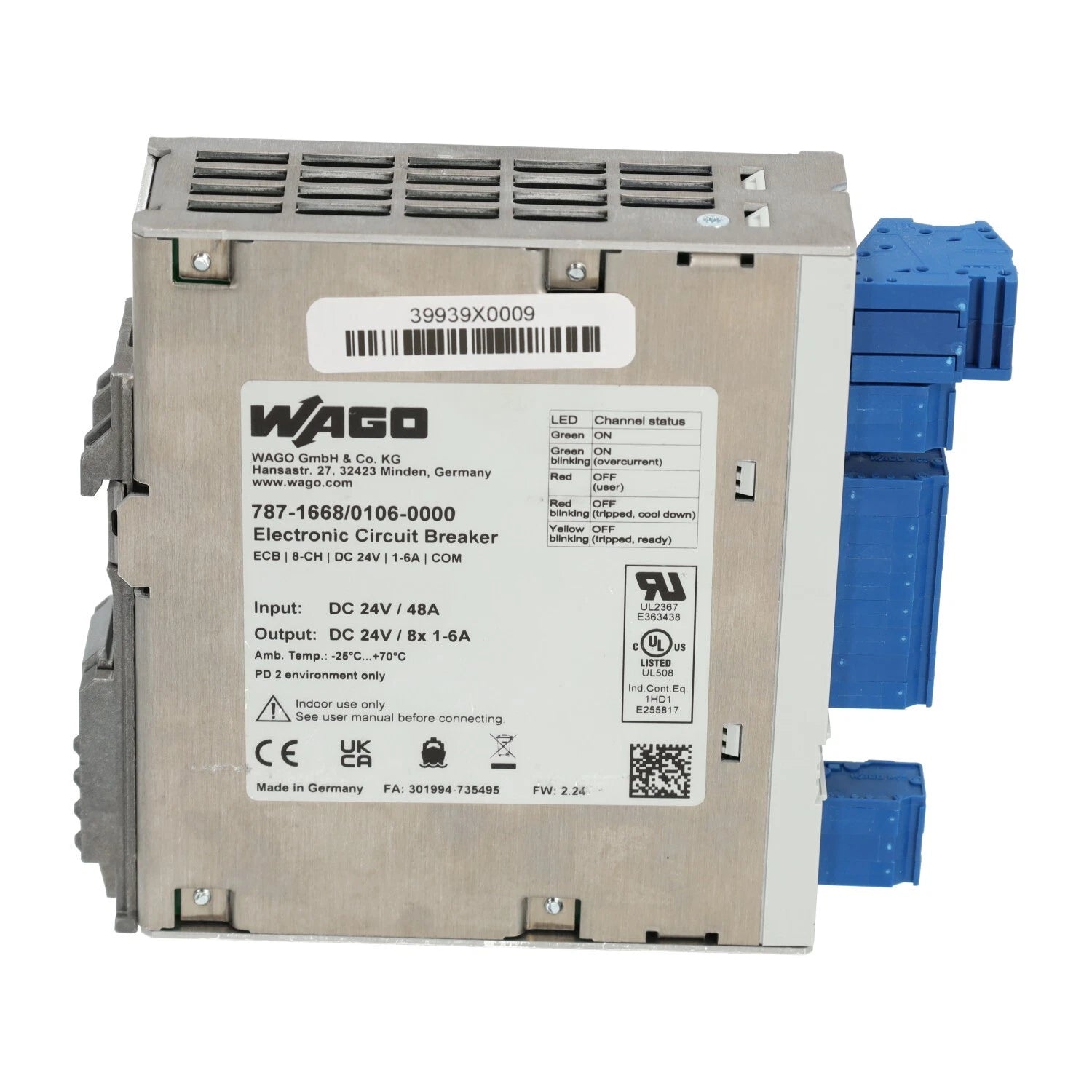

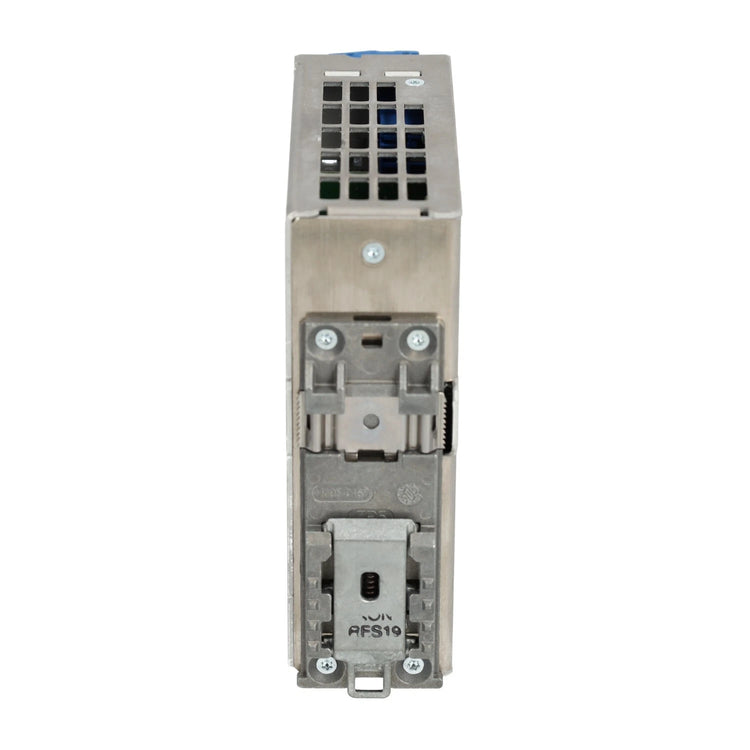

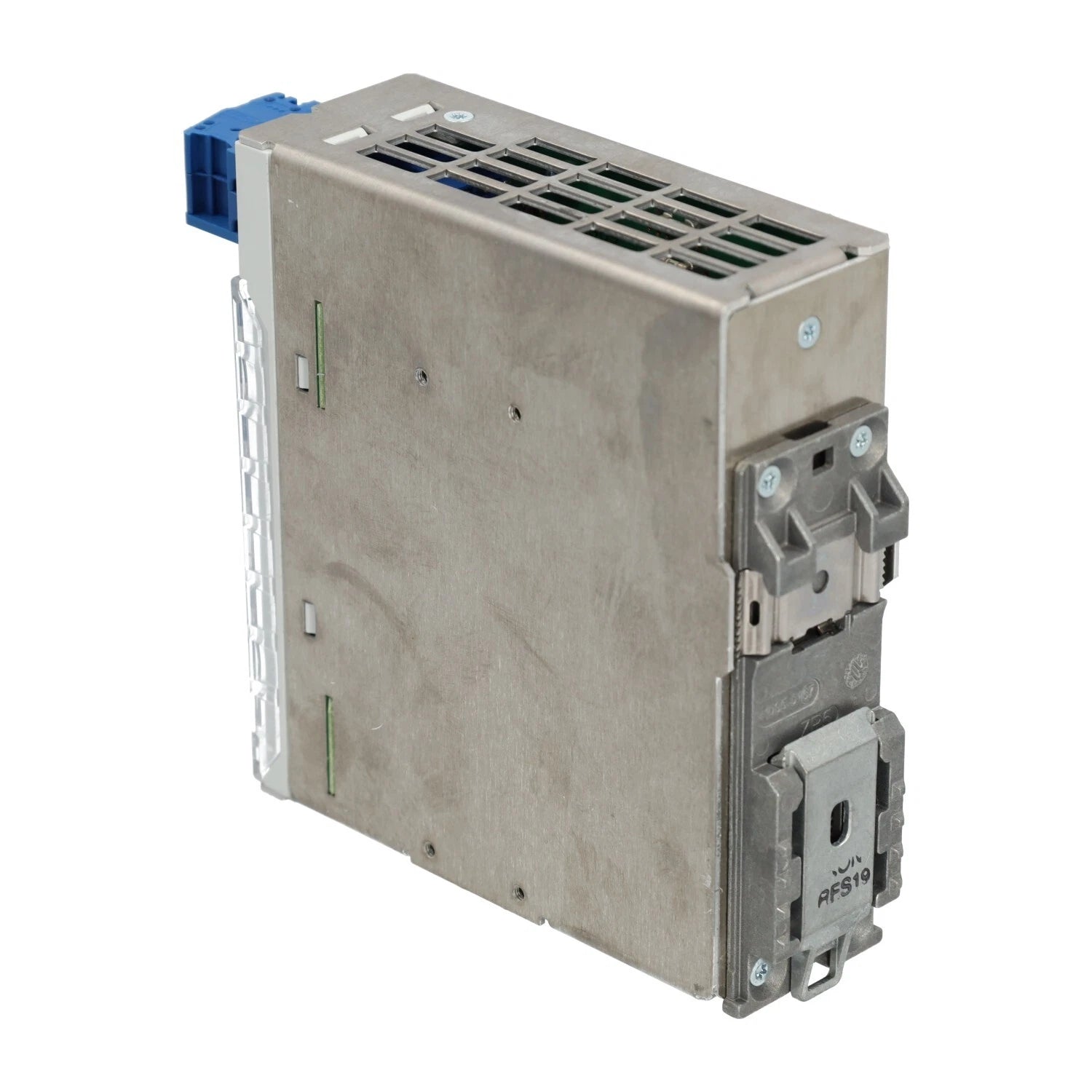

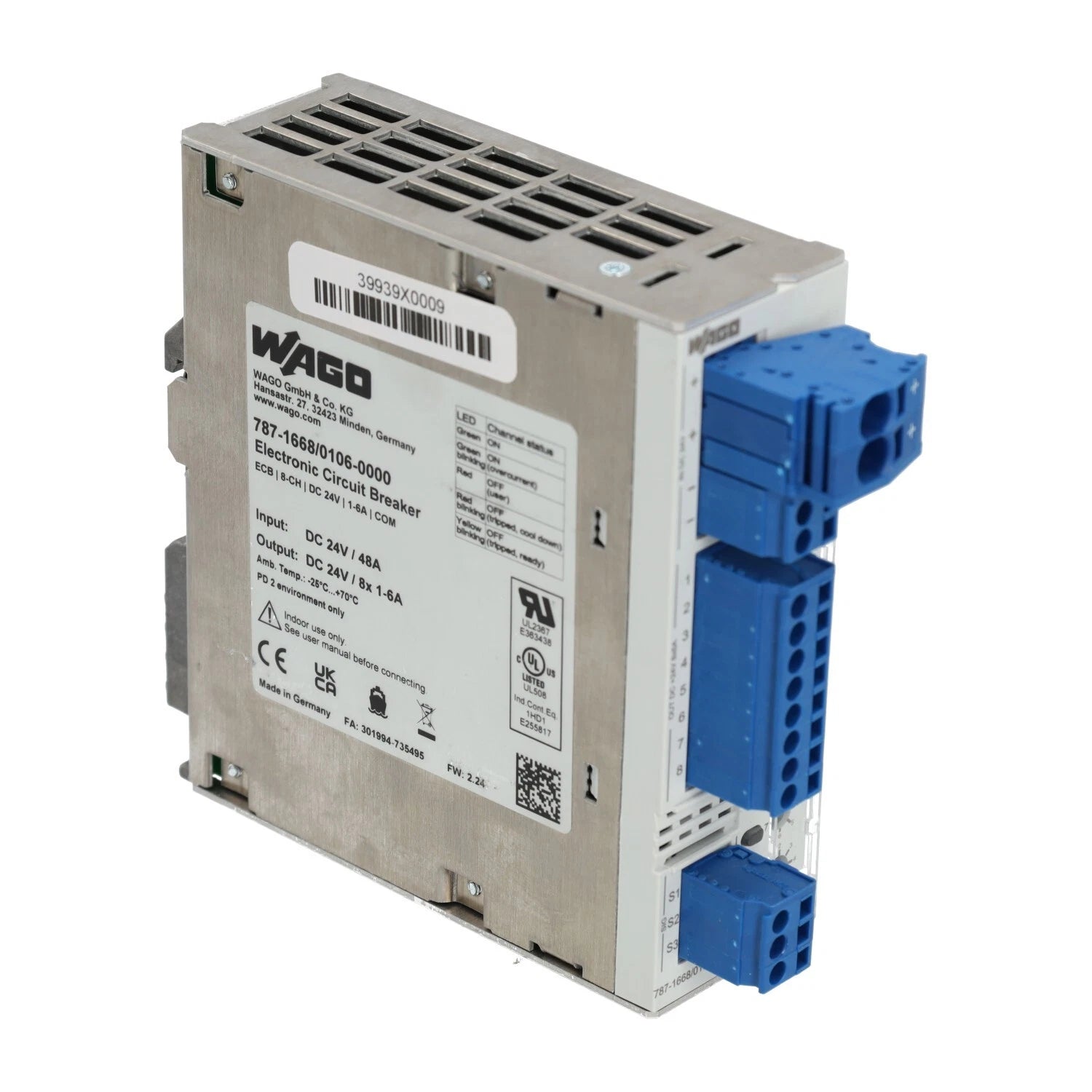

787-1668 | Wago 8-Channel Electronic Circuit Breaker 24 VDC with Adjustable Current
- Regular price
- $454.00
- Sale price
- $454.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 787-1668
Description
The Wago 787-1668 is an eight-channel electronic circuit breaker designed for selective protection and distribution of 24 VDC loads in industrial control systems. It provides adjustable current protection per channel and enables reliable load management with minimal voltage drop. This unit is optimized for space-saving installation in control cabinets requiring advanced diagnostics and remote control functionality.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Wago |
| Category | Industrial Power Distribution |
| Part Number | 787-1668 |
| Subcategory | Electronic Circuit Breakers |
| Nominal Input Voltage | 24 VDC |
| Input Voltage Range | 18 … 30 VDC |
| Number of Channels | 8 |
| Nominal Output Current | 2 / 3 / 4 / 6 / 8 / 10 A per channel (adjustable) |
| Voltage Drop | ≤ 200 mV at 10 A |
| Switch-On Capacity | > 50,000 µF per channel |
| Trip Time | 16 ms … 100 s (load-dependent) |
| Efficiency (typ.) | 99 % |
| Protection Type | IP20 |
| Mounting | DIN-35 rail |
| Operating Temperature | -25 to +70 °C |
| Weight | 440 g |
Information About 787-1668
The 787-1668 is part of WAGO’s electronic circuit breaker portfolio, engineered for efficient and selective DC load protection. Each output channel features individually adjustable nominal current settings, allowing precise adaptation to connected loads. The device supports delayed channel switching to reduce inrush currents and enhance system stability. Designed for DIN-rail mounting, it integrates visual diagnostics, signaling outputs, and remote control inputs for centralized system monitoring and control.
Key Features:
- Eight-Channel Electronic Circuit Breaker: Provides independent protection and distribution for eight 24 VDC load circuits.
- Adjustable Channel Current: Nominal current configurable from 2 to 10 A per channel via sealable selector switches.
- High Inrush Current Capability: Supports switch-on capacities exceeding 50,000 µF per channel.
- Integrated Channel Control Buttons: Three-color illuminated buttons enable local switching, resetting, and diagnostics.
- Time-Delayed Channel Switching: Load-dependent delayed activation minimizes inrush current stress.
- Comprehensive Signaling Outputs: Group tripped signal and individual channel status via pulse sequences.
- Remote Control Functionality: Allows remote reset and switching of channels using pulse-controlled input signals.
- Low Power Loss Design: Achieves high efficiency with minimal heat generation during operation.
- Compact DIN-Rail Housing: Space-saving design optimized for dense control cabinet installations.
The 787-1668 delivers the reliability and precision required for selective 24 VDC load protection and advanced power distribution in industrial automation systems.
