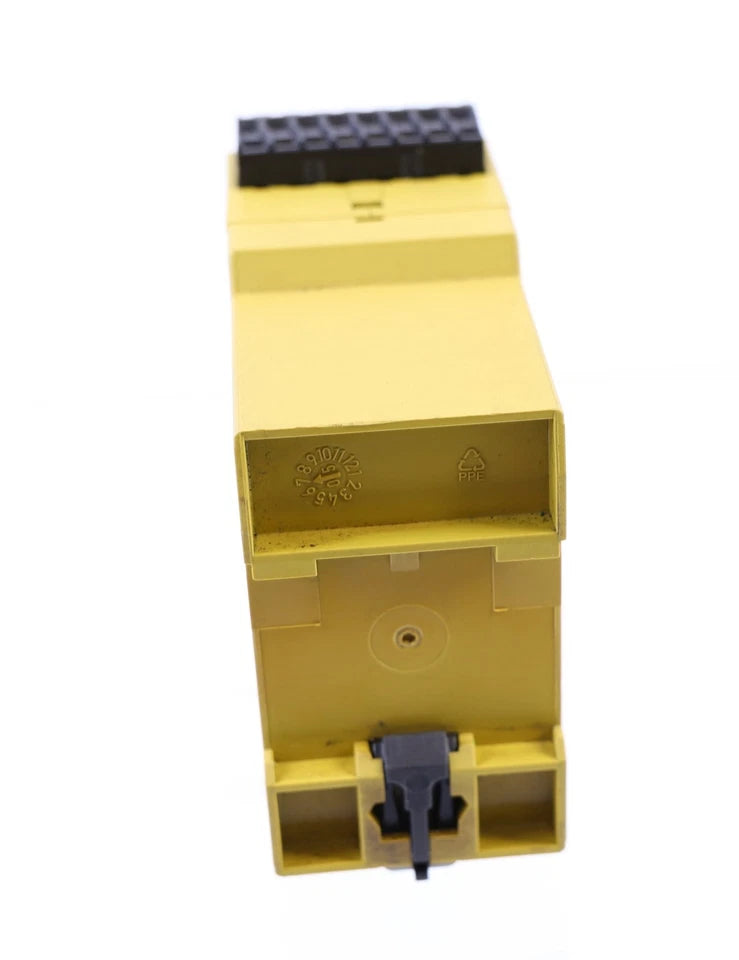

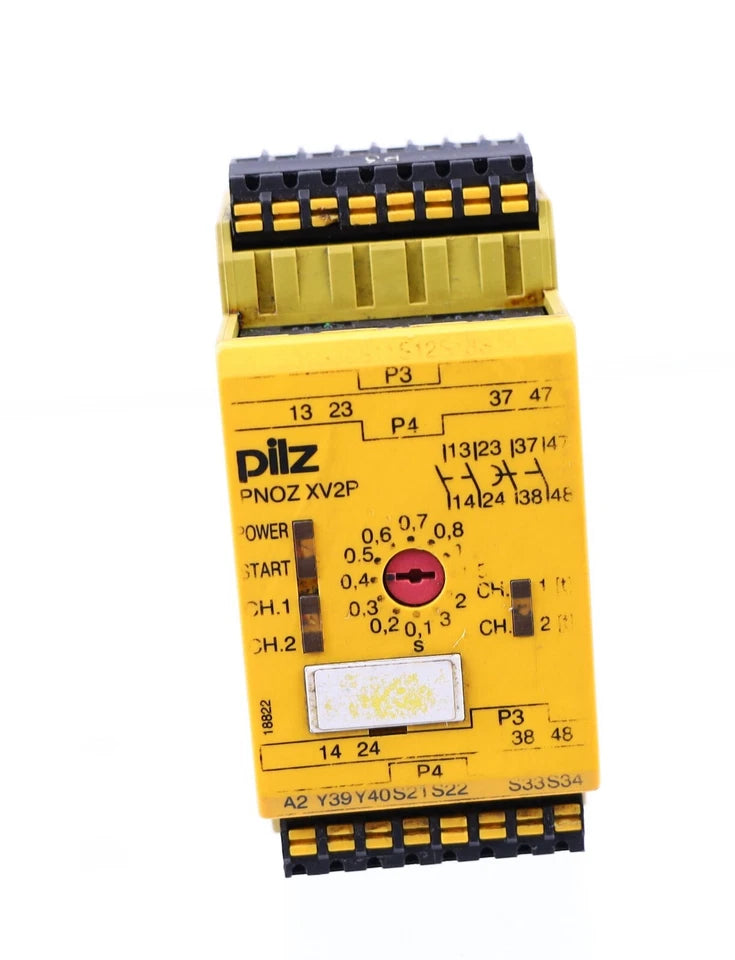

787502 | Pilz PNOZ XV2P C Safety Relay 24VDC Time Delay
- Regular price
- $367.00
- Sale price
- $367.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 787502
Description
The Pilz 787502 PNOZ XV2P C is a configurable safety relay designed for monitoring emergency stop circuits, safety gates, and limit switches. Operating on 24 VDC, it provides instantaneous and time-delayed safety outputs with selectable delay times up to 3 seconds.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pilz |
| Category | Safety Relays |
| Part Number | 787502 |
| Subcategory | Time-Delay Safety Relays |
| Series | PNOZ X |
| Model | PNOZ XV2P C |
| Supply Voltage | 24 VDC |
| Power Consumption | 4.5 W |
| Input Configuration | Single or dual-channel |
| Application | E-stop pushbuttons, safety gates, limit switches |
| Instantaneous Safety Outputs | 2 × NO |
| Delayed Safety Outputs | 2 × NO |
| Selectable Delay Times | 0.1 s to 3 s (multiple steps) |
| Start Type | Automatic / monitored |
| Electrical Connection | Cage clamp terminals |
| Terminal Style | Plug-in |
| Mounting | DIN rail |
| Standards | EN 60204-1, EN 62061, EN 954-1, VDE 0113-1 |
| Approvals | CCC, cUL, GOST, TÜV, UL |
| Weight | 0.78 lb (355 g) |
Information About 787502
The 787502 is part of the Pilz PNOZ X series safety relays developed for reliable control of safety-related stop functions. It supports both instantaneous and time-delayed safety contacts, allowing controlled shutdown sequences to match machine safety requirements. The relay offers a wide range of selectable delay times up to 3 seconds, providing flexibility for different applications and risk assessments. Designed for DIN rail mounting with plug-in cage clamp terminals, it enables secure wiring and efficient installation in industrial control panels.
Key Features
- Configurable Time-Delay Safety Function: Provides selectable delay settings from 0.1 to 3 seconds to support controlled stop and restart sequences.
- Dual Safety Output Types: Combines two instantaneous and two delayed normally open safety contacts for flexible safety circuit design.
- Single or Dual-Channel Input Support: Enables use with various safety devices while meeting different safety architecture requirements.
- 24 VDC Operation: Designed for standard low-voltage industrial safety control systems.
- Cage Clamp Plug-In Terminals: Ensure secure, vibration-resistant wiring and faster installation or replacement.
- Compact DIN Rail Housing: Supports space-efficient mounting in modern control cabinets.
- Certified Safety Compliance: Approved to multiple international safety standards for use in safety-critical machine applications.
The 787502 delivers the reliability and precision required for time-controlled safety switching in industrial automation and machine safety systems.
