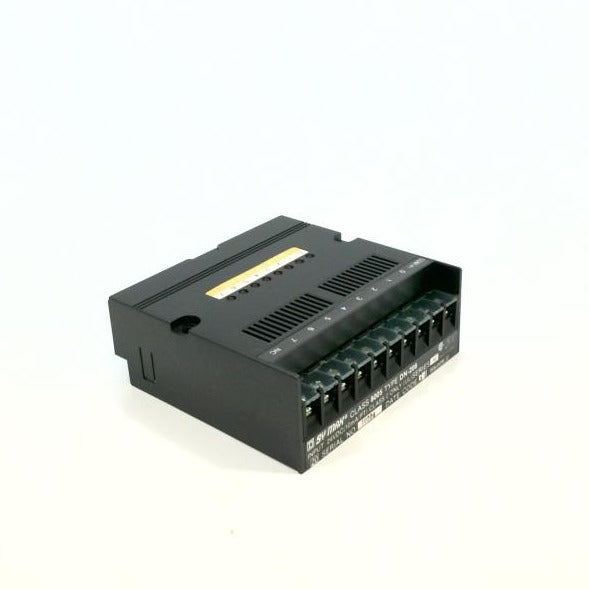

8005-DN-216 | Schneider Electric Sy/Max 16-Point 24VDC Input Module
- Regular price
- $199.00
- Sale price
- $199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8005-DN-216
Description
The Schneider Electric Square D 8005-DN-216 is a 24 VDC input module designed to expand control capabilities within Sy/Max Class 8005 systems. With 16 input functions and photocoupler isolation, it provides reliable signal handling for industrial automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Part Number | 8005-DN-216 |
| Category | PLCs/Machine Control |
| Subcategory | PLC Module/Rack |
| Series | Sy/Max Class 8005 |
| Type | Input module |
| Functions | 16 |
| Voltage Rating | 24 VDC (10–30 VDC range) |
| Points Per Common Connection | 8 |
| Input Impedance | 2.3 kΩ |
| Current Draw (Internal) | 40 mA |
| Isolation Method | Photocoupler |
| Turn-On Time | 7 ms |
| Turn-Off Time | 11 ms |
| Turn-On Voltage | 10 VDC |
| Turn-Off Voltage | 3 VDC |
| For Use With | Sy/Max Class 8005 devices |
| Mounting Orientation | Vertical mounting only |
| Terminal Type | M3.5 screw terminals |
| Application | DC signal input processing |
Information About 8005-DN-216
The 8005-DN-216 is a Sy/Max Class 8005 input module engineered to process 24 VDC input signals with high reliability and stable electrical isolation. Featuring 16 input points arranged in two groups of eight, it supports efficient wiring layouts and structured terminal organization. The module incorporates LED indicators for each input, providing clear visual status feedback during operation, maintenance, and troubleshooting. Designed for installation on processor units or expansion bases, the 8005-DN-216 integrates seamlessly into vertically mounted Sy/Max control configurations.
Key Features
- 16-Point DC Input Module: processes up to sixteen 24 VDC input signals for Sy/Max Class 8005 systems.
- Photocoupler Isolation: provides stable and safe electrical separation between field wiring and control electronics.
- 8-Point Common Connections: organizes input channels in two groups for simplified wiring and configuration.
- Fast Response Times: supports 7 ms turn-on and 11 ms turn-off times for dependable signal processing.
- Wide Voltage Range: accepts 10–30 VDC inputs with defined turn-on and turn-off thresholds.
- LED Input Indicators: includes sixteen red LEDs for real-time status and diagnostic visibility.
- Compatible With Sy/Max Bases: mounts directly to processor units, expansion bases, or power supply bases.
- Structured Terminal Design: features clearly labeled terminals, including COM (+) and NC positions for proper wiring.
The 8005-DN-216 delivers the reliability and precision required for stable DC signal processing in Sy/Max Class 8005 industrial control systems.
