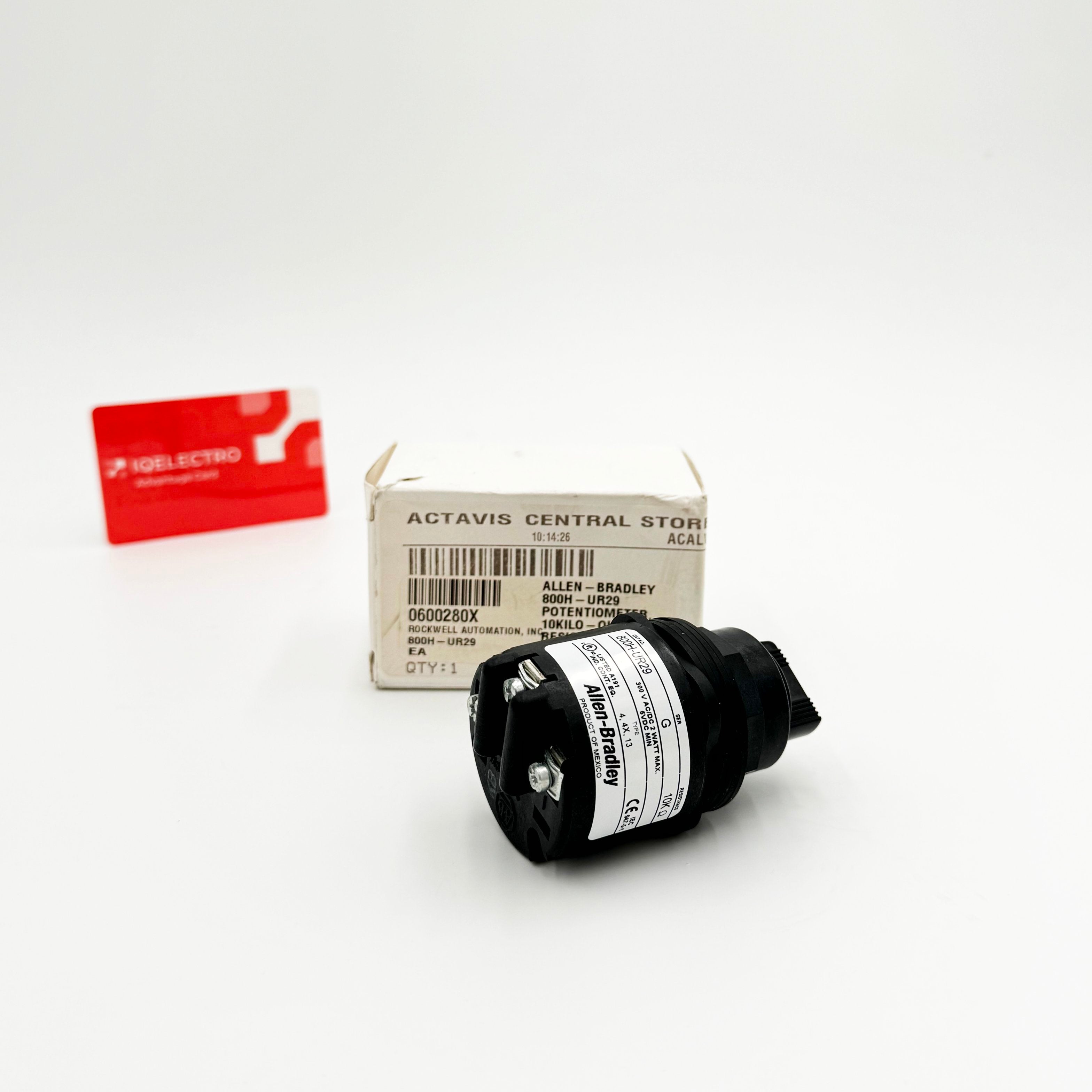

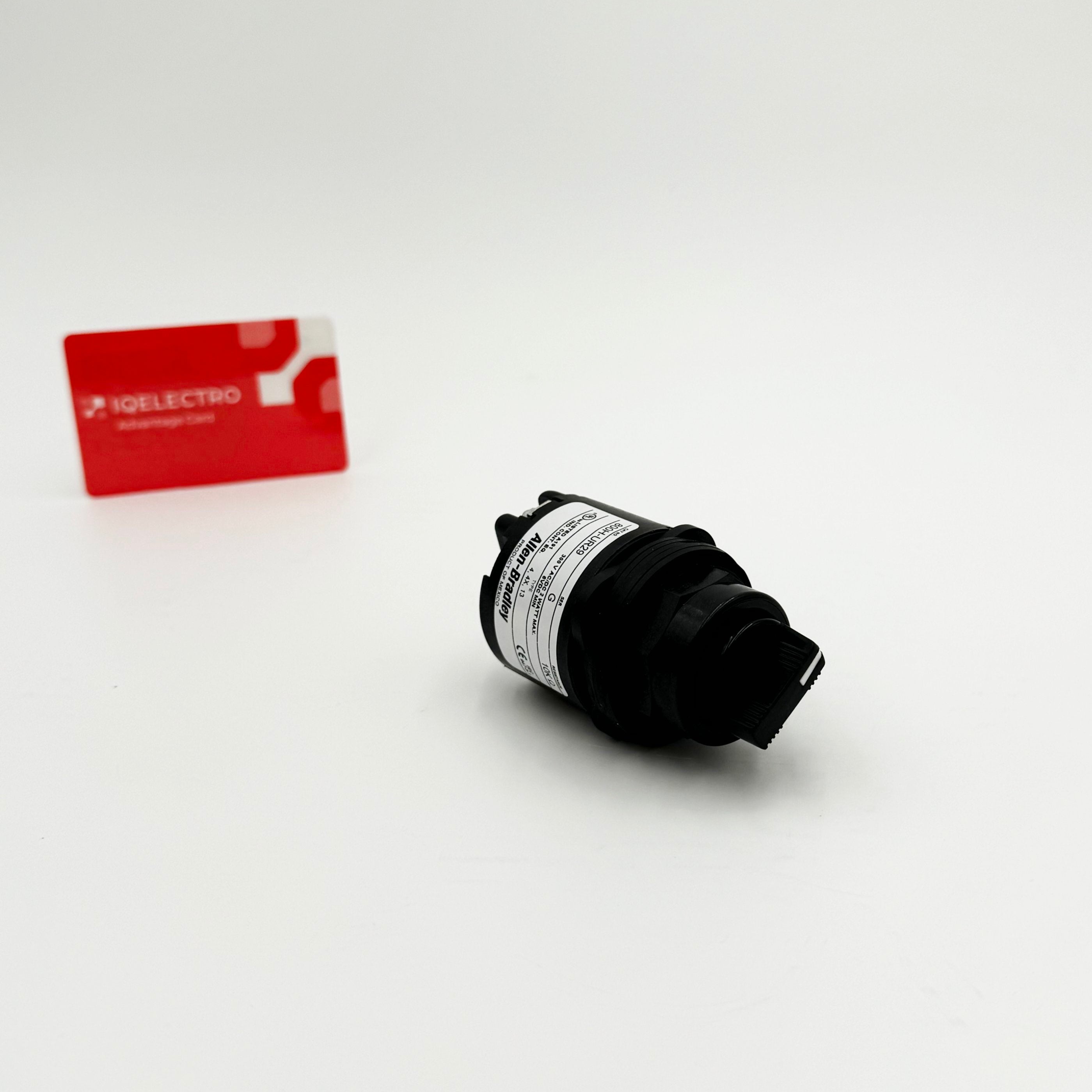

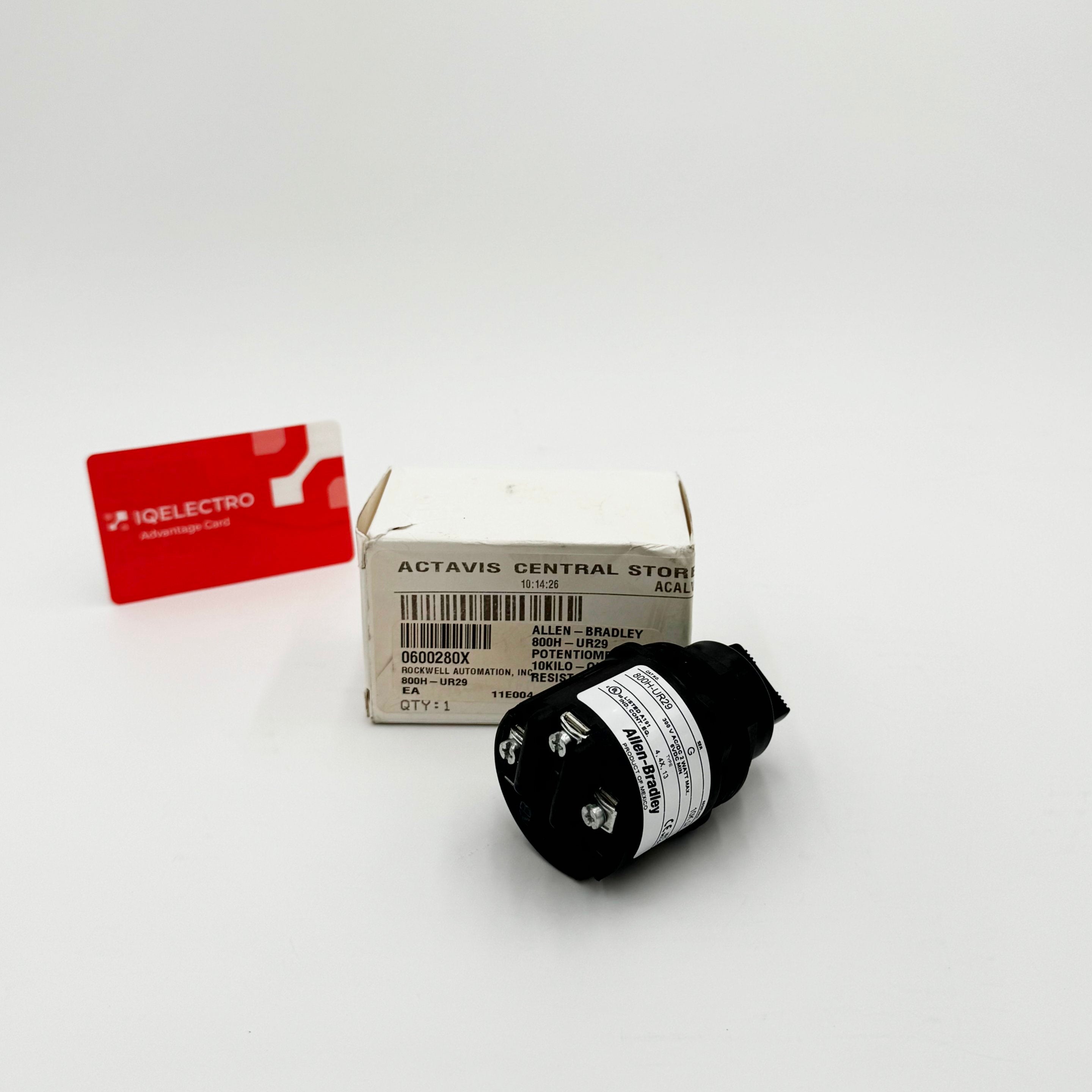

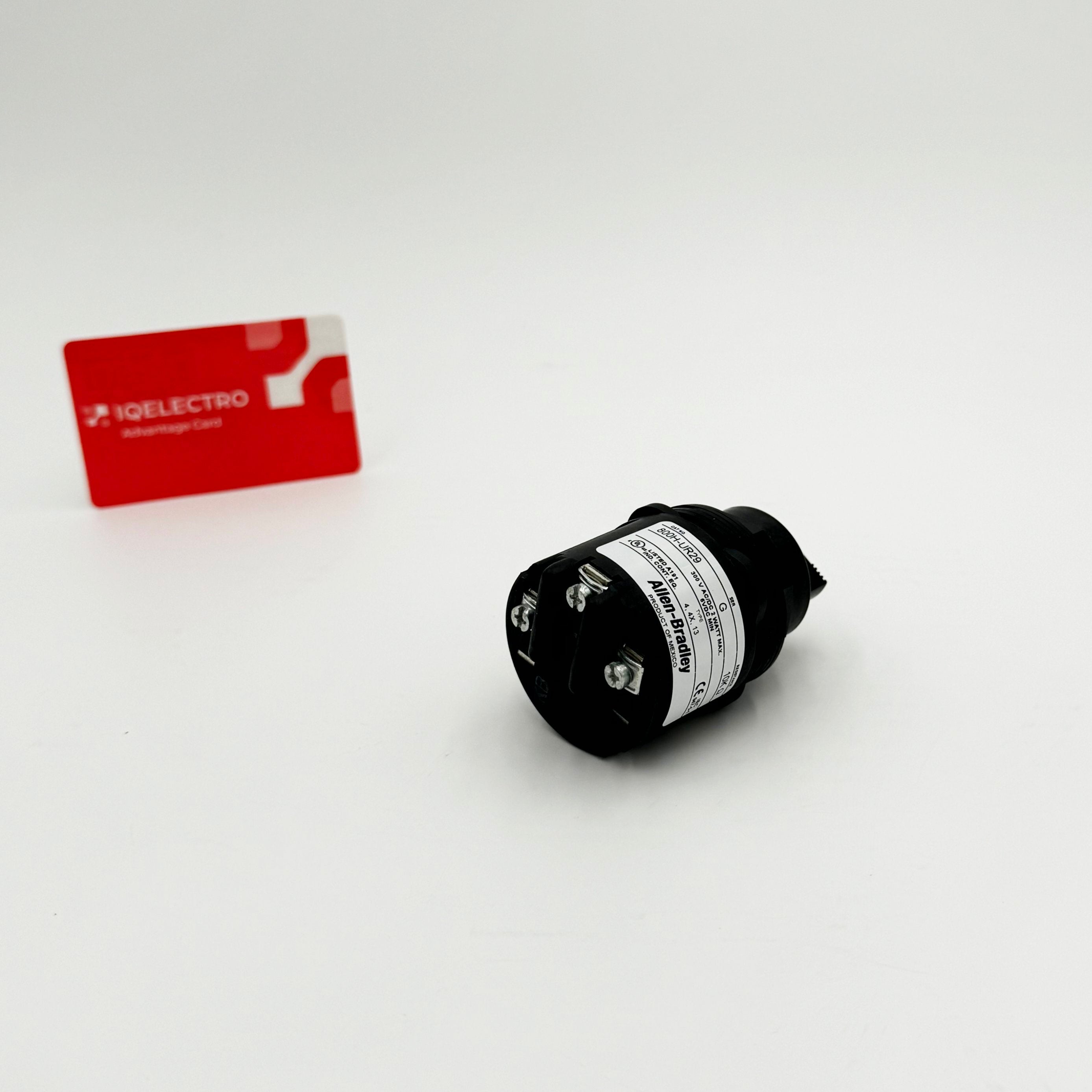

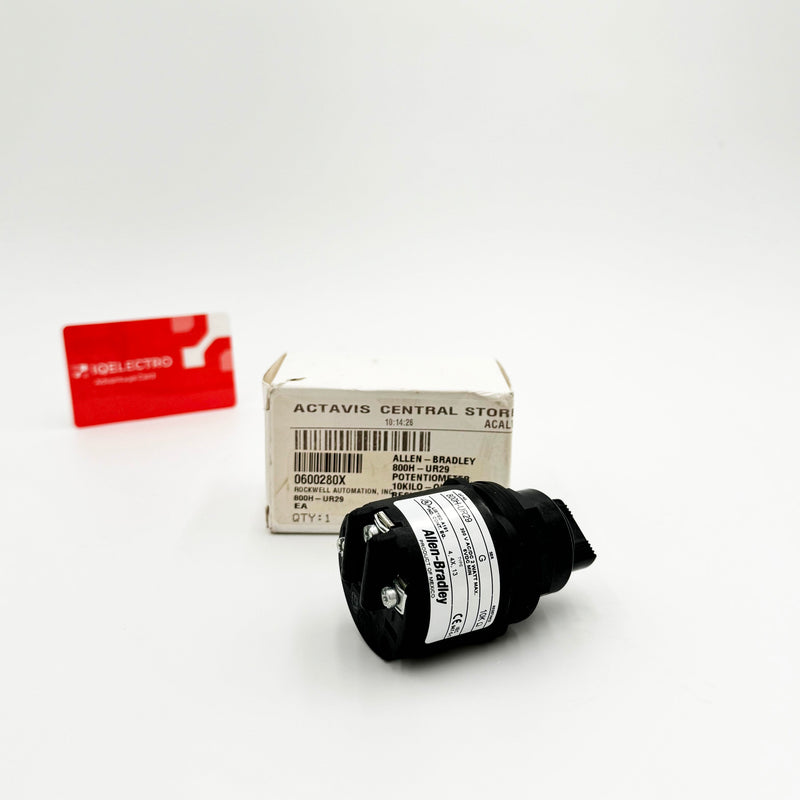

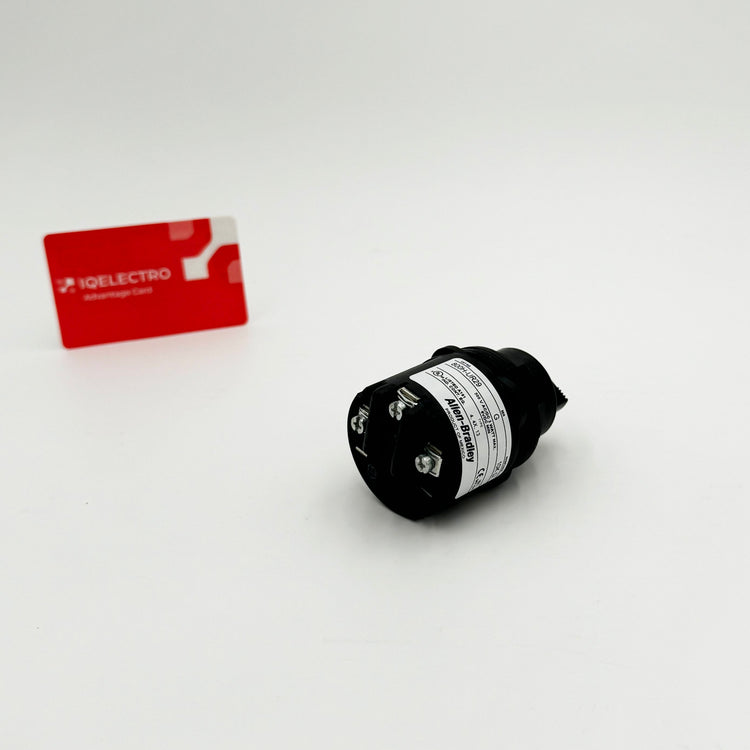

800H-UR29 | Allen-Bradley 30.5mm Potentiometer, 10K Ohms Resistive Element
- Regular price
- $312.00
- Sale price
- $312.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 800H-UR29
Description
The Allen-Bradley 800H-UR29 is a 30.5 mm potentiometer unit designed for precise manual adjustment in industrial control applications. This Bulletin 800H device incorporates a 10 kΩ resistive element and a durable operator for reliable performance in demanding environments. Built for versatility, it supports a wide range of enclosure types and integrates easily into standard 30.5 mm control panel openings.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | Pilot Devices |
| Part Number | 800H-UR29 |
| Subcategory | Potentiometer |
| Mounting Hole Diameter | 30.5 mm |
| Resistance Rating | 10 kΩ |
| Operator Type | Potentiometer unit |
| Operator Function | Single turn |
| Operator Construction | Plastic |
| Operator Cap Type | Standard knob |
| Operator Cap Shape | Round |
| Operator Cap Color | Black |
| Enclosure Compatibility | NEMA 1, 4, 4X, 12, 13 |
| Power Rating | 2 W |
| Input Voltage Range | 6 V DC to 300 V AC/DC |
| Termination Type | Screw connection |
| Termination Wire Range | 14–18 AWG (x2) |
| Termination Torque | 6–7 lb-in (0.7–0.8 N·m) |
| Vibration Rating | 10 G maximum |
| Shock Rating | 100 G |
| Mechanical Life | 25,000 cycles minimum |
| Suitable for Illumination | No |
| Hazardous Location Rating | No |
| Operating Temperature | –25 °C |
| Storage Temperature | –40 to 100 °C |
| Humidity | 50% |
Information About 800H-UR29
The 800H-UR29 is part of the Allen-Bradley Bulletin 800H family, known for rugged construction suited to harsh industrial conditions. Designed with a single-turn operator, it offers smooth manual resistance adjustment through a standard black plastic knob. The unit is compatible with NEMA 1, 4, 4X, 12, and 13 enclosures, allowing use across a variety of protected control panel environments. With a 10 kΩ resistance rating, screw-type terminations, and robust mechanical endurance, the 800H-UR29 serves reliably in control circuits that require repeatable analog input or setpoint adjustment.
Key Features:
- 30.5 mm mounting size: Fits standard industrial control panel cutouts.
- 10 kΩ potentiometer element: Provides accurate analog resistance adjustment.
- Single-turn operator: Enables smooth, precise manual control.
- Mechanical life ≥ 25,000 cycles: Suitable for frequent operation.
- Wide enclosure compatibility: NEMA 1, 4, 4X, 12, and 13 rated installations.
- Shock resistance up to 100 G: Withstands demanding industrial environments.
- Vibration tolerance of 10 G: Ensures stable operation under mechanical stress.
- Screw-type connections: Secure and straightforward wiring method.
- Plastic operator and knob: Lightweight, corrosion-resistant construction.
- Input voltage up to 300 V AC/DC: Supports broad application requirements.
- 2 W power rating: Suitable for low-power control applications.
The 800H-UR29 delivers the reliability and precision required for industrial control panels requiring durable, accurate potentiometer adjustment.
