Part #: 800T-A2D1 Manufactured by: Allen-Bradley
$49.00
$49.00
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview

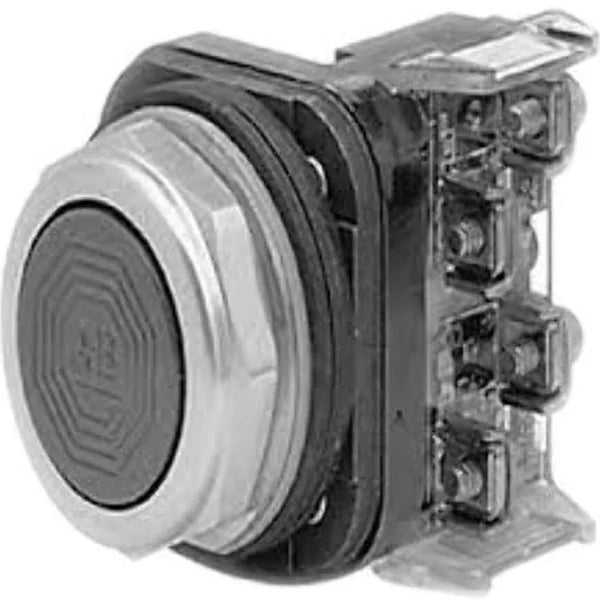

Allen-Bradley 800T-A2D1 30.5mm Type 4/13 Momentary Contact Push Button, Non-Illuminated, Black, Flush Head, 1 N.O.
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Do you need help?

Call our Sales Manager
phone
+1 (828) 222-3490
Mon./Sat.: 7:00AM - 8:00PM
Write to us now
email
sales@iqelectro.com
Mon./Sat.: 7:00AM - 12:00PM
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 800T-A2D1
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 800T-A2D1

Description / Specifications

Description

800T PB, Momentary Push Button, Flush Head Push Button, Flush Head, Black, Standard, Standard, Black, No Guards on Terminals, 1 NO Standard Contact, No Block In Position 2, No Block In Position 3, 1 NO Standard Contact, No Block In Position 4, Device with Packaging



Technical Specifications



Brand Allen-Bradley
Category Pilot Devices
Part Number 800T-A2D1
Subcategory Pushbutton
Contact Configuration 1 Normally Open
Operator Cap Size 30.5 MM
Operator Cap Type Flush Head
Operator Function Momentary Contact
Finger Safe Guards No
Illuminated No
Operator Material Plastic
Product Type Pushbutton
Nema Rating TYPE 4/13





Information About 800T-A2D1

The Allen-Bradley 800T-A2D1 is a 30.5mm Type 4/13 Momentary Contact Push Button designed for industrial control applications. With a robust build and reliable performance, this push button offers precise momentary control, ensuring efficient operation in diverse industrial environments.

Key Features:

Robust Construction: The 800T-A2D1 is built with durability in mind, featuring a rugged construction that can withstand the demands of industrial settings. This ensures reliable performance even in challenging conditions.

30.5mm Size: The 30.5mm size makes this push button suitable for standard industrial control panels and enclosures. It provides a comfortable and ergonomic interface for operators to initiate momentary actions.

Type 4/13 Rating: Designed with a Type 4/13 rating, the push button is suitable for use in environments where protection against ingress of solid foreign objects and liquids is required. This ensures its resilience in harsh conditions.

Momentary Contact: The push button offers momentary contact operation, allowing users to control specific functions or actions with precision. This is essential for applications where precise and temporary control is necessary.

Versatile Functionality: With its momentary contact design, the push button is versatile and can be utilized for various functions, such as starting or stopping processes, initiating alarms, or controlling specific operations in industrial machinery.

Easy Integration: The 800T-A2D1 is designed for easy integration into control panels. Its standardized 30.5mm size allows for straightforward installation, making it compatible with a wide range of control systems.

Clear Indication: The push button provides clear indication of its status, enhancing operational visibility. This is crucial for operators to quickly assess the state of the system or equipment.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

Frequently Asked Questions about 800T-A2D1
Question: What is the 800T-A2D1 used for?
Date Update:17/06/2025
Answer:

The 800T-A2D1 is a momentary pushbutton designed for industrial control applications. It allows operators to trigger a function—such as starting a machine or initiating a sequence—while the button is held. Once released, the contact returns to its original state. Its momentary function is ideal for operations that require manual hold-down input. It is frequently used in start/stop stations, alarm resets, or jog operations. Its design ensures dependable and responsive tactile feedback.

Question: How many contacts does it have?
Date Update:17/06/2025
Answer:

This unit includes one normally open (1 NO) contact. The contact closes when the pushbutton is pressed, allowing current to flow. It can be used to energize a relay, input signal to a PLC, or trigger an output device. Additional contact blocks can be added depending on the enclosure or configuration. The contact uses proven mechanical technology for long life and durability. The single NO contact design is simple yet effective for basic control tasks.

Question: Is the operator cap flush or extended?
Date Update:17/06/2025
Answer:

The 800T-A2D1 features a flush head, meaning the button surface is level with the operator panel. This design reduces the risk of accidental activation, making it ideal for safety-focused applications. Flush heads offer a sleek profile and are easier to clean in dusty or wet environments. It’s also beneficial in crowded panels where space and ergonomics are critical. The black color enhances visibility on metal or painted surfaces. It meets both functional and aesthetic needs.

Question: Does it include finger-safe guards?
Date Update:17/06/2025
Answer:

No, the 800T-A2D1 is supplied without finger-safe terminal guards. While it meets basic insulation standards, open terminals require careful installation. For added safety, especially in high-voltage environments, optional guard accessories can be installed. Alternatively, models with built-in finger protection are available within the same 800T line. When designing panels for compliance or operator safety, always consider using guarded terminals. Proper wiring practices and insulation sleeves are also recommended.

Question: Is the 800T-A2D1 still available?
Date Update:17/06/2025
Answer:

Yes, the 800T-A2D1 remains actively available and is part of Allen-Bradley's 800T family. It is still manufactured and supported through Rockwell’s global distribution network. However, as newer series (like 800H or 800FP) are introduced, customers may be encouraged to migrate for enhanced features or modularity. The 800T line continues to be popular for legacy compatibility. Lifecycle tools can be used to check ongoing availability. Users are advised to review product status regularly for updates.
